Triplex Terminations 11kV – NPG Northern Powergrid
Published 28 Aug 2018
-
uploaded by Chris Dodds - Thorne & Derrick Sales & Marketing Manager
Cable Terminations
The following information is uploaded to assist in the selection and specification of the correct Triplex terminations to suit 11kV XLPE insulated cables with copper wire screen typically in accordance with BS7870 – the cable terminations manufactured by 3M Electrical are Cold Shrink type from the QTIII range of indoor cable termination kits.
These MV HV Cable Terminations are approved for use by Northern Powergrid (NPG) jointers and their framework contractors for the termination of 11kV Triplex cables – a complete range of Cold Shrink Terminations are available for 11kV, 33kV and 66kV single and 3-core cables with XLPE or EPR type insulation.
| Cold Shrink Termination | 92-EP621-1-NY43 | 92-EP631-1-NY44 | 92-EP641-1-NY45 | 92-EP641-1-NY52 |
| NPG Catalogue Number | 163660 | 163661 | 163662 | 163663 |
| Cable Termination (CSA) | 95sqmm | 185-300sqmm | 400sqmm | 630sqmm |
| Suits XLPE Insulation Diameter | 16.3-27.4mm | 21.1-38.9mm | 26.7-45.7mm | 26.7-45.7mm |
For Example:
Northern Powergrid NPG – Bill Of Materials For 11kV Triplex Termination Kit NPG163662
Cable Termination Kit List – Triplex Terminations
- SED T110-T 3M Cold Shrink Cable Termination Body x 3
- NEDL80 Sicame ML4/14/12 Earth Lug (Copper Wire Screens Pictured)
- NEDL19 Sicame HVTM1/3-12B Brass Cable Lug (Stranded & Solid Core Conductors)
- Jointing Instruction 2919-0
Earthing & Terminating
11kV Triplex Copper Wire Screens

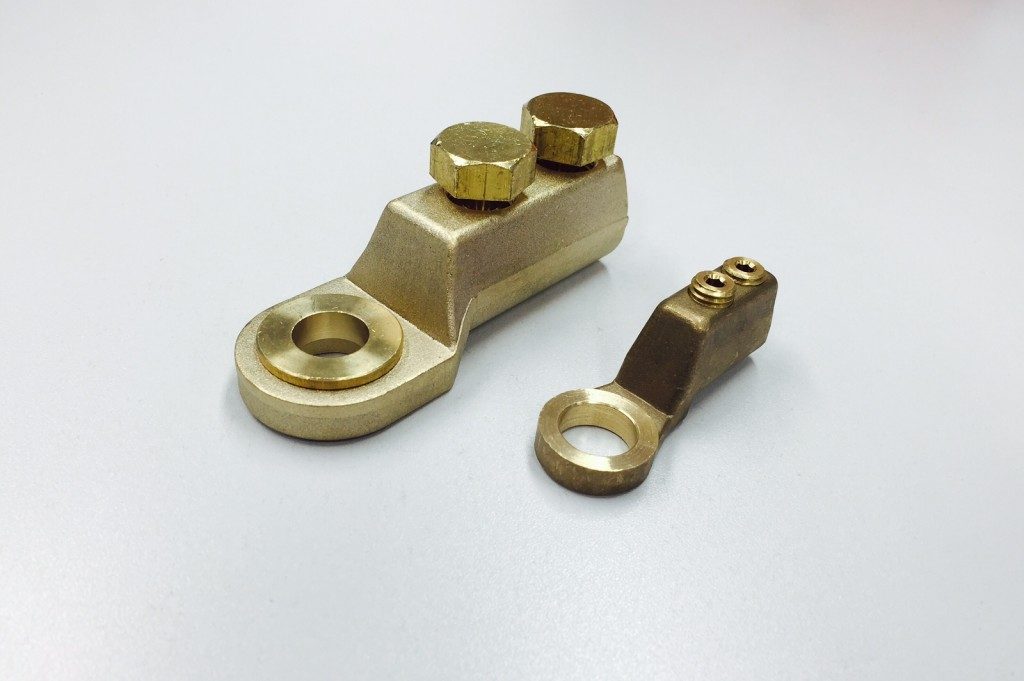

Sicame ML4 range of mechanical cable lugs are designed for the termination of stranded/solid/circular conductor cores – also used for the termination of earth screen wires of MV-HV polymeric cables as a component of Triplex terminations kits.
The mechanical lugs are manufactured in copper alloy and suitable for jointing either copper or aluminium cored conductor – see complete range of Sicame cable lugs.
NOTE: Triplex cable terminations are supplied as sets of 3 – to terminate 11kV cables onto private networks using heat shrink cable terminations please go to Triplex terminations.
