11kV Heat Shrink Terminations Connecting MV UKPN Cables To Lucy Switchgear

Published 12 Feb 2020

11kV Heat Shrink Terminations Connecting MV UKPN Cables To Lucy Switchgear

Image Courtesy of: Ryan Carlin – Cable Jointer up to 11kV & Electrician at Dragon Infrastructure Solutions

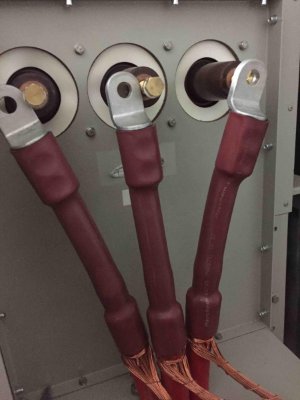

Pictured: 11kV Heat Shrink Terminations Connecting MV UKPN Cables To Lucy Switchgear – the 3 single core 11kV cables are pictured entering the MV switchgear through a single cable entry point with the anti-track (red) heat shrink tubing already shrunk perfectly into position and the copper wire screens bonded to earth usually using brass mechanical cable lugs, such as Sicame Hepworth.
