132kV Straight Cable Joints, Outdoor Terminations & SF6 Cable Sealing Ends
132KV Joints Terminations Sealing Ends
High Voltage Joints & Terminations
High Voltage Cable Accessories for Onshore & Offshore Jointing & Termination up to 132kV
Prysmian 132kV Straight Cable Joints and Outdoor Termination Sealing Ends (ODSE) are designed in accordance with IEC6080 and suitable for jointing and terminating aluminium and copper conductor cables with XLPE insulation.
Full range of 132kV Jointing Tools to enable cable preparation prior to installing joints, terminations or sealing ends.

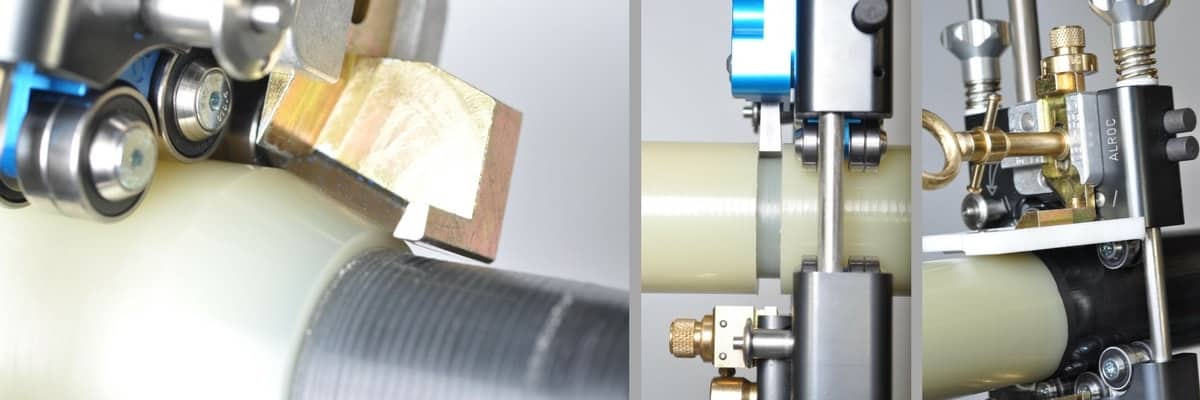

Alroc CAMF4/40-90-BBCF Multifunction High Voltage Cable Jointing Tool | Chamfer | Groove | Shave
132kV Aluminium Conductor XLPE Insulated Cable Construction
132kV Aluminium Conductor XLPE Insulated Cable
- Conductor – Solid, Stranded or Miliken aluminium conductors
- Conductor Screen – Extruded crosslinked semicon
- Insulation – Crosslinked polyethylene (XLPE)
- Insulation Screen – Extruded crosslinked semicon
- Metallic Sheath – Seamless lead alloy with copper wires, aluminium foil laminate with copper wires and seam welded aluminium
- Outer Sheath – Polyethylene (Fire Performance Alternative) Graphite outer coating
132kV Copper Conductor XLPE Insulated Cable Construction
- Conductor – Solid, Stranded or Miliken aluminium conductors
- Conductor Screen – Extruded crosslinked semicon
- Insulation – Crosslinked polyethylene (XLPE)
- Insulation Screen – Extruded crosslinked semicon
- Metallic Sheath – Seamless lead alloy with copper wires, aluminium foil laminate with copper wires and seam welded aluminium
- Outer Sheath – Polyethylene (Fire Performance Alternative) Graphite outer coating
All designs are generally in accordance with IEC60840.
➡ 66KV Joints Terminations Sealing Ends are also available from Prysmian
132kV Cable Joints, Terminations & HV Cable Sealing Ends
132kV Joints, Terminations & Sealing Ends
Product Specifications
| Prysmian Cable Accessory | Prysmian Part Ref | 132kV Cable Accessory Description | Conductor | Size Range |
| Straight Joint – Uninsulated | SK1431K | Un-Insulated XLPE Straight Joint with Pre-moulded Sleeve | Cu | 185 sqmm – 1600 sqmm |
| Al | 185 sqmm – 1600 sqmm | |||
| Straight Joint Insulated | SK1431J | Insulated XLPE Straight Joint with Pre-Moulded Sleeve | Cu | 185 sqmm – 1600 sqmm |
| Al | 185 sqmm – 1600 sqmm | |||
| Outdoor Termination | EK1431S | Outdoor Composite Termination | Cu | 185 sqmm – 1600 sqmm |
| Al | 185 sqmm – 1600 sqmm | |||
| SF6 Sealing End | EVG 1170 – 072 | SF6 Dry Type Immersed Sealing End for Single Core Extruded Cables | Cu | 185 sqmm – 2000 sqmm |
| Al | 185 sqmm – 2000 sqmm | |||
| Single Core Transition Joint | CFTJX – 170 | Transition Joint for Single Core Fluid Filled Cable to Single Core XLPE Cable | FF Cable Cu or Al | 240 sqmm – 1200 sqmm |
| XLPE Cable Cu or Al | 240 sqmm – 1200 sqmm | |||
| Three Core Transition Joint | 541048 | Transition Joint For Three Core Fluid Filled Cable to Three Single Core XLPE Cables | FF Cable Cu or Al | 185 sqmm – 630 sqmm |
| FF Cable Cu or Al | 185 sqmm – 1600 sqmm |
Prysmian ClickFit Accessories
The Click-Fit range of Prysmian High Voltage Cable Accessories enable the Jointing, Connection & Termination of the high voltage power grid for connecting underground cables and overhead lines to equipment such as switchgear and transformers.
| Prysmian Accessories | Description | Size Range |
| CFJ-72 CFJX-72 CFJ-72-T CFJX-72-T |
Click-Fit straight joint for 72kV Click-Fit straight joint with sheath interruptor for 72kV Click-Fit size transition joint for 72 kV Click-Fit size transition joint with sheath interruptor for 72kV |
185 sqmm – 1200 sqmm |
| CFJ-123 CFJX-123 CFJ-123-T CFJX-123-T |
Click-Fit straight joint for 110kV Click-Fit staight joint with sheath interruptor for 110kV Click-Fit size transition joint for 110kV Click-Fit size transition joint with sheath interruptor for 110kV |
240 sqmm – 1600 sqmm |
| CFJ-145 CFJX-145 CFJ-145-T CFJX-145-T |
Click-Fit straight joint for 138kV Click-Fit straight joint with sheath interruptor 138kV Click-Fit size transition joint for 138kV Click-Fit size transition joint with sheath interruptor for 138kV |
240 sqmm – 2000 sqmm |
| OTC-72 OTC-72-X |
Outdoor composite termination for 72kV Outdoor composite termination with extended creepage for 72kV |
185 sqmm – 1200 sqmm |
| OTC-123 OTC-123-X |
Outdoor composite termination for 110kV Outdoor composite termination with extended creepage for 110kV |
240 sqmm – 2000 sqmm |
| OTC-145 OTC-145-X |
Outdoor composite termination for 138kV Outdoor composite termination with extended creepage for 138kV |
240sqmm – 2000 sqmm |
| CFC-72 CFMT-72 |
Dry type Click-Fit GIS termination for 72kV Fluid filled GIS termination for 72kV |
185 sqmm – 1200 sqmm |
| CFC-123 CFMT-123 |
Dry type Click-Fit GIS termination for 110kV Fluid filled GIS termination for 110kV |
240 sqmm – 1600 sqmm |
| CFC-145 CFMT-145 |
Dry type Click-Fit GIS termination for 138kV Fluid filled GIS termination for 138kV |
240 sqmm – 1600 sqmm |
Medium Voltage Joints & Terminations
MV HV Prysmian Cables for medium and high voltage electrical systems, typically distributing 6.6kV-11kV-33kV power – we provide competitive prices for MV-HV cables and accessories including joints, terminations and connectors from extensive stocks to UK and international destinations.
Thorne & Derrick distribute the most extensive range of MV HV Medium & High Voltage Cable Joints, Terminations & Connectors from manufacturers including 3M, Prysmian, Nexans Euromold, Elastimold, Pfisterer CONNEX & SEANEX and Shrink Polymer Systems.
Heat shrink, cold shrink, push-on and slip-over cable accessories enable the jointing, terminating and connection of 11kV-33kV and 66kV-132kV cables to oil, air or gas insulated switchgear, transformers, motors and overhead lines distributing electricity at medium/high voltages.
Thorne & Derrick hold large stocks of 11kV 33kV 66kV Joints & Terminations suitable for XLPE, PILC and EPR cables, in both heat shrink and Cold Shrink technologies, to service the medium/high voltage power cable accessory requirements of UK and international customers.
