400AR-4BC from Nexans | NEW Euromold Interface C High Voltage Bushings

Published 24 Jan 2023

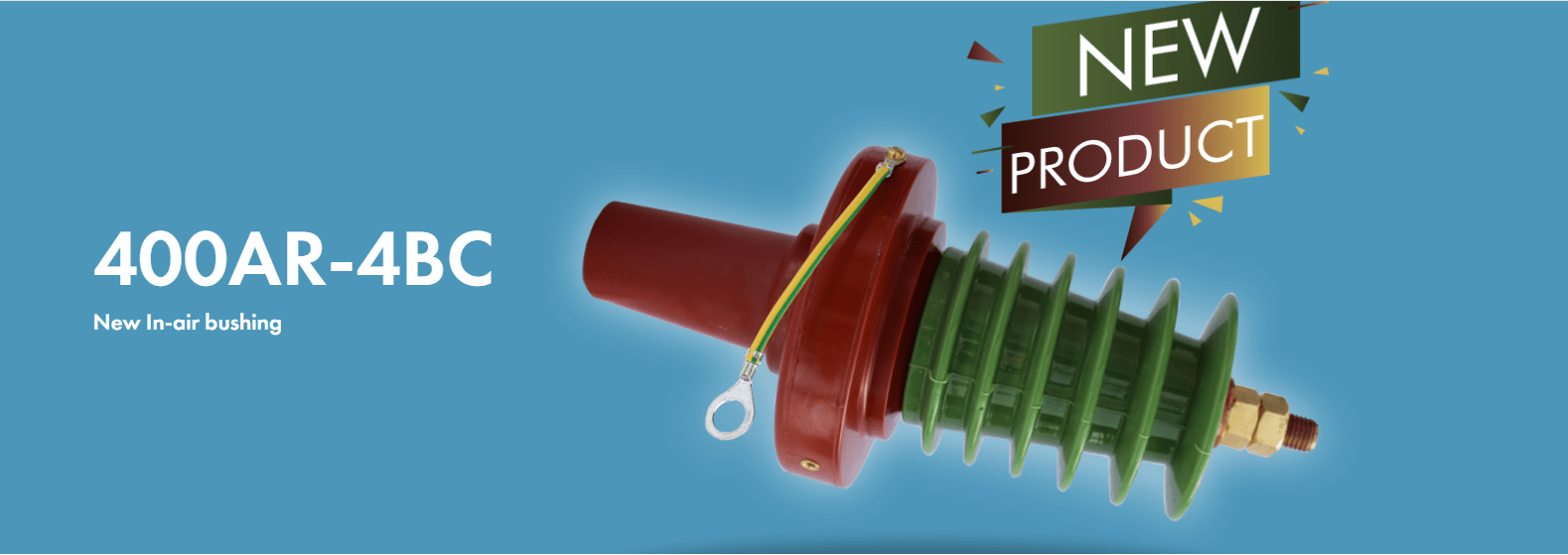

Nexans 400AR-4BC HV Bushings

Thorne & Derrick, UK Distributor for Nexans Power Cable Accessories, are pleased to announce the release of the new EUROMOLD® Interface C in-air bushing 400AR-4BC, up to 24kV – 1250 A. The new Interface C in-air bushing 400AR-BC will replace the Interface D in-air bushing 672TBC, for use in medium voltage electrical equipment insulated with air in hazardous area locations according to the ATEX Directive.

The in-air MV equipment bushing is used in industrial applications such as the manufacture of motors, pumps and locomotives – the bushing is ATEX Certified for use in Potentially Explosive Atmospheres according to the following classification:

• II 2 G
• Ex eb IIC Gb
• Ts= -20°C to 95°C

Thorne & Derrick distribute the most extensive range of MV HV Medium & High Voltage Cable Joints, Terminations & Connectors from Nexans Euromold to connect, splice, repair and maintain medium/high voltage cable and power distribution systems

The correct selection and specification of Nexans Euromold connectors is dependent on the cable specification and the electrical equipment MV HV bushing type. There are 6 bushing interfaces common to MV electrical equipment (A, B, C, D, E or F).

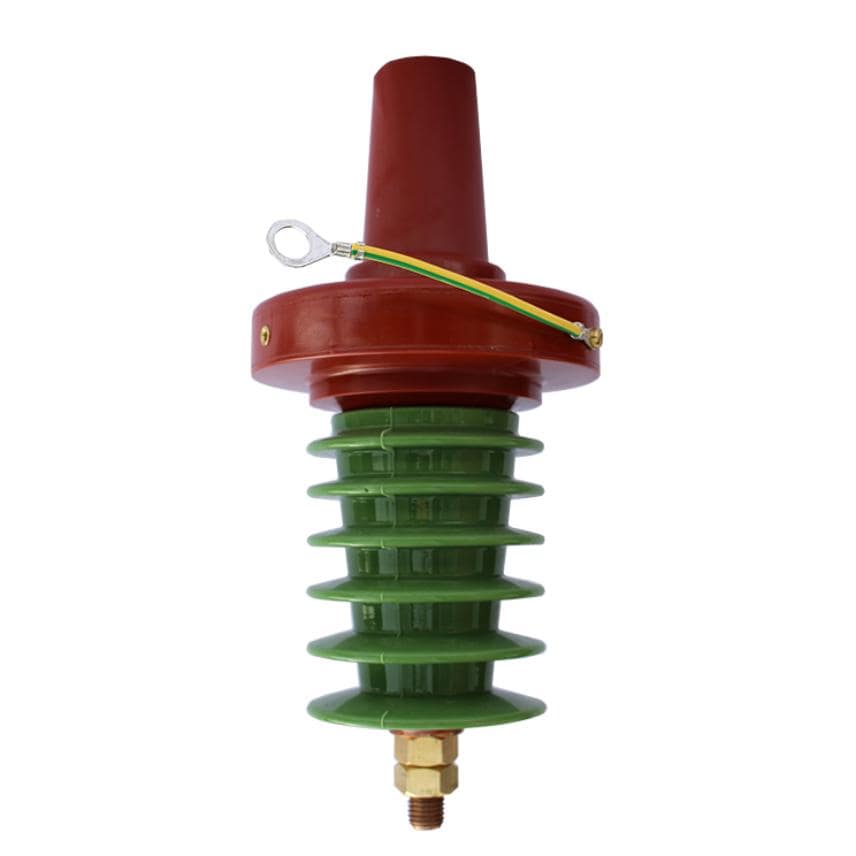

Nexans 400AR-4BC In-Air Bushing

400AR-4BC Advantages

• On the new Interface C in-air bushing you can install all separable connectors of the Interface C product family. It also offers the possibility to install a Surge Arrester.
• The new Interface C in-air bushing is also available with ATEX/IECEx/UKEx certification.

Part Number
703937 – K400AR-4BC/J + KBC-RING CLAMP 3 *SS
703939 – K400AR-4BC/J-ATEX-IECEx + KBC-RING CLAMP 3 *SS

The bolted type equipment bushings 400AR-4BC are moulded epoxy insulated parts and meet the requirements of CENELEC EN 50180. A non-tracking insulating rubber boot is installed over the bushing shank.

Specification | Construction & Electrical Characteristics

• Connector Shape | Bushing
• Connector Type | Male
• Conductor Material | Copper & Aluminium
• Technology | Cast Resin
• Rated Voltage Uo/U (Um) | 12/20 (24)kV
• Maximal Partial Discharge at 2Uo | 10 pC
• Dielectric Withstand Voltage, 50Hz 1mn | 55kV
• Impulse Voltage | 125kV

➡ Contact Thorne & Derrick for further order information
