66kV Connectors, Cables & Junctions Boxes – An Interview With Nexans

Published 07 Mar 2014

66kV Connectors

Nexans Euromold | Medium & High Voltage Cable Connectors

66kV Cable Connectors for Offshore Wind Farms

Nexans Euromold: An Interview

This interview features Stefaan Mensaert, Product Line Manager Renewables at Nexans Cables. He discusses developments in 66kV cabling technology, with a particular focus on offshore wind farm inter-array cables.

Nexans recently supplied 66kV inter-array cables to the Blyth Offshore Wind Farm. In this interview, Stefaan explains the technology, installation challenges and future of 66kV cable connections in offshore wind projects.

What are your main responsibilities at Nexans? What projects are you developing around 66kV inter-array cable technology?

I monitor developments and future requirements in the renewable energy market. My focus is on power connection systems and the growing demand for 66kV technology in offshore wind farms.

Nexans has committed to providing a complete solution for this market. Alongside 66kV XLPE-insulated submarine cables, we have developed a full range of 66kV power cable accessories using outer cone technology. These accessories have also passed successful testing.

I am also an active member of the steering committee for a Belgian offshore energy innovation cluster. Together with Nexans’ global experience in cables and power accessories, this work strengthens our position in the renewable energy market.

What challenges did Nexans face when developing 66kV XLPE submarine cables, accessories, junction boxes and connectors?

Our discussions with key market developers highlighted three main priorities:

  • Flexible installation
  • Compact connection systems
  • Simple testing procedures

These priorities are particularly important when connecting 66kV wind turbines.

As a result, we adopted outer cone technology based on the open, standardised Interface F Bushing. Standards EN 50181 and EN 50182 define this technology.

The approach received strong support from different companies across the supply chain. This includes manufacturers of 66kV transformers and switchgear.

We also developed cost-effective solutions using the same outer cone connector system. These solutions allow installers to connect inter-array cables and tower cables easily within a 66kV junction box.

What tests have you carried out on your junction boxes and high-voltage cable connectors?

Nexans has put all accessories in its 72.5kV range through extensive qualification and type testing. The testing follows IEC 60840.

For OEM projects, we have also carried out additional tests to meet specific customer requirements. These tests exceed the values set out in IEC 60840 and include 72.5kV cable joints.

How will 66kV technology help reduce the cost of offshore wind energy?

At first, the industry showed some hesitation about adopting the 66kV voltage level.

However, the entire supply chain responded quickly. This included cable, switchgear and transformer manufacturers. Nexans has demonstrated that it can deliver the essential components needed to support the move to 66kV.

Developers now recognise the potential cost savings. This technology could significantly reduce the cost of future offshore wind farms.

Recent project announcements provide evidence of this progress, with new wind farms securing substantially lower, or even zero, subsidy bids per MWh.

Blyth Offshore Windfarm

Blyth Offshore Windfarm

Will Nexans take part in testing the 66kV inter-array cables after installation?

Not applicable for us as a cable accessory supplier. This work would fall within the cable layer or cable supplier’s scope.

What does the future hold for 66kV offshore wind inter-array cabling?

The move to 66kV will bring new challenges, particularly around the dynamic behaviour of the cable systems.

However, the continued development of floating offshore wind will also require 66kV technology. It will help developers build commercial-scale floating wind farms in the future.

The industry must also improve the interconnection systems used between 66kV turbines. Future designs will need to consider maintenance and repair requirements more closely.

Several organisations are already working to address these challenges. These include the Carbon Trust, which supported the development of 66kV technology from an early stage.

Blyth Offshore Wind Farm Project

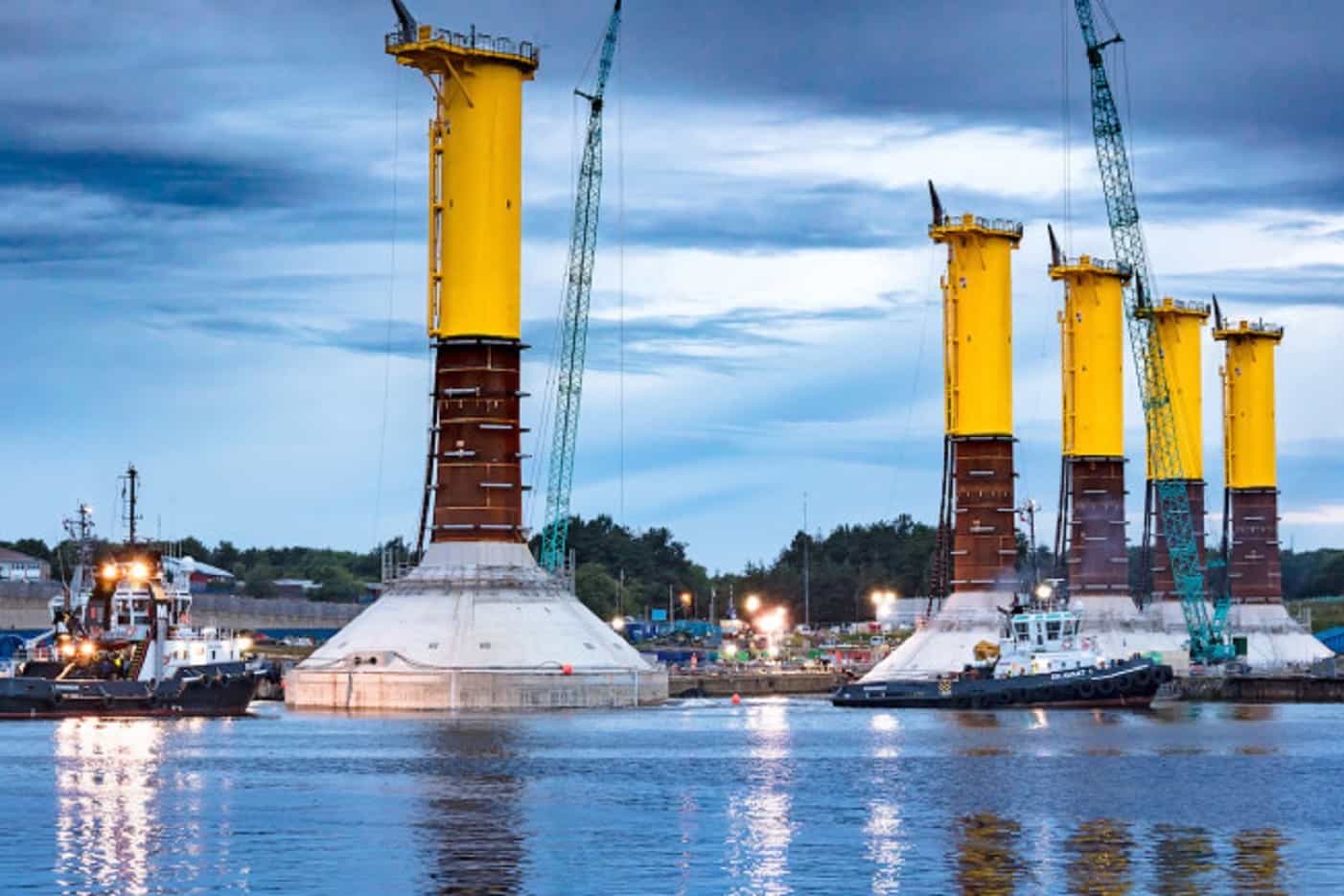

Gravity-based foundations being constructed on the River Tyne Credit EDF Energy Renewables

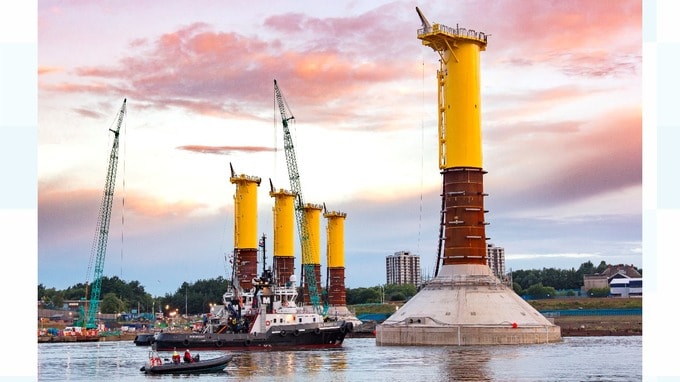

Gravity-based foundations being constructed on the River Tyne. Credit: EDF Energy Renewables

The Blyth Offshore Demonstrator Wind Farm reached an important milestone on 11 July 2017. On this date, the first turbine foundation travelled up the River Tyne.

EDF Energy Renewables is developing the wind farm after taking responsibility for the project from Narec (now ORE Catapult) in October 2014.

The project includes five wind turbines with a combined generating capacity of 41.5MW. They sit around 6.5km off the coast of Blyth.

Once operational, the turbines will generate enough low-carbon electricity to power approximately 34,000 homes.*

Blyth Offshore Wind Farm

Each foundation was floated into position off the coast of Blyth and submerged onto the seabed. Further ballast was then added to provide stable foundations for the turbines.

The five Gravity Based Foundations for the Blyth Offshore Demonstrator Project are in place and the next phase is underway

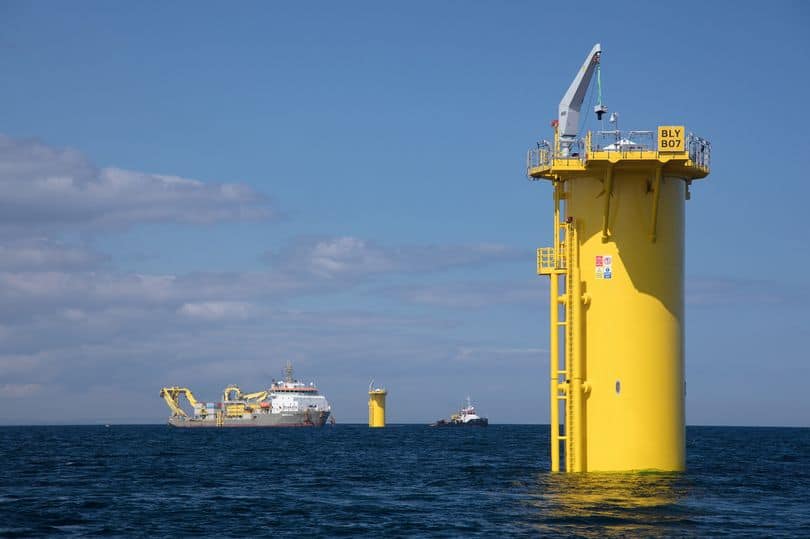

All five gravity-based foundations for the Blyth Offshore Demonstrator Project are in place.

All five foundations for the Blyth wind farm are now in place.

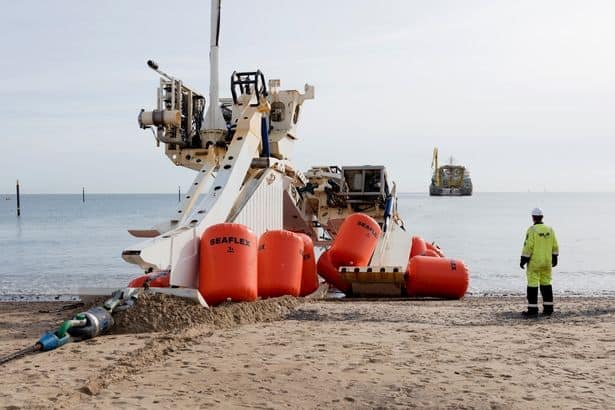

Around 11 kilometres of buried 66kV offshore cables connect the individual turbines and carry electricity towards the shore. A further 1.5 kilometres of onshore cable then connects the wind farm directly to a new substation.

The substation stands on part of the former Blyth power station site.
