Different Insulating Epoxy Plugs & How To Install The Cap On Nexans Euromold Interface C Compact Connectors – Part 2
Published 29 Jan 2020
Nexans Euromold Interface C Compact Connectors
Different Insulating Epoxy Plugs & How To Install The Cap
In this Webisode Nexans will discuss the different Epoxy Plugs and how to install the cap on the Euromold Interface C Compact Connectors.
When your maximum medium voltage system is 24kV, you can see the Euromold BIPR insulating epoxy plug without locking point during the installation of the separable connector.
When the maximum medium voltage system is higher than 24kV, such as 33/36kV, you have to use the Euromold BIPA insulating plug. This epoxy plug has a metallic voltage detection point with a locking point on the top that must be connected to the cap.

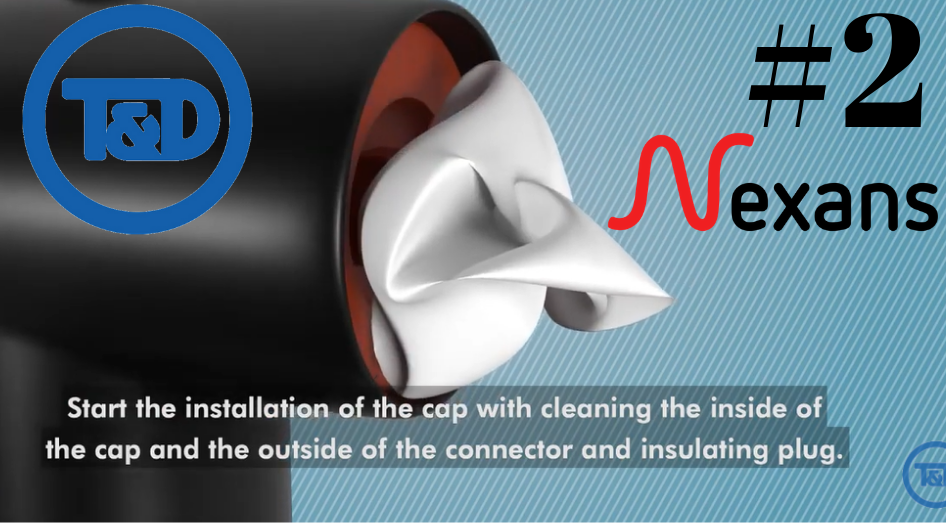

- Start the installation of the cap with cleaning the inside of the cap and the outside of the Euromold connector and insulating plug
- Place the nylon vent rod along the insulating plug to exhaust air during cap assembly
- Then push the cap firmly over the connector and onto the insulating plug until it cannot advance any further. Only when use the BIPA insulating plug you have to press the centre of the cap onto the locking point until it snaps into place
- Press the cap on all sides to make sure it is well positioned over the connector. The pulling tab of the cap needs to be positioned downwards. Remove the nylon vent rod
- Re-press the centre of the cap onto the locking point to ensure it is still in place
Failure by the Jointer to observe the above procedure can lead to premature Partial Discharge development and consequently product failure of the Connector terminated onto the MV HV switchgear or transformer bushing interface.
Interface C Compact Bushings
Nexans Euromold Connectors, Plugs, Elbows, Bushings & Surge Arresters
Further Reading
- Water Sealing, IP Rating & Temperature Range Of Nexans Euromold Connectors
- Bevelling The Edge Of The Core Insulation During Installation Of Nexans Euromold Connectors
- Installation & Clamping Of Nexans Euromold Compact Connectors Onto Their Mating Bushings
