BS6387 Fire Performance Cable Joint Kits For Prysmian Max-FOH LV Cables
Published 28 Aug 2018
Cable Joints
-
uploaded by Chris Dodds - Thorne & Derrick Sales & Marketing Manager
Cable Joints
BS6387

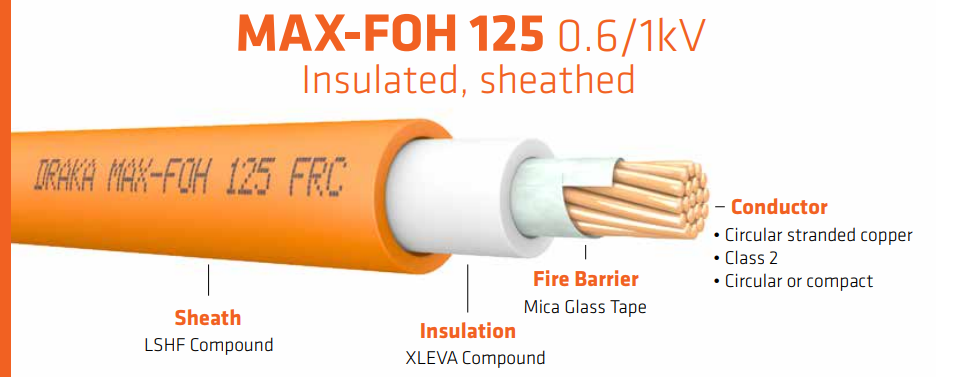

Prysmian FRZHMPJ are Fire Performance & Fire Resistant Cable Joints suitable to install as straight joints for LV Unarmoured and Armoured (SWA AWA) Max-FOH cables with copper conductors up to 1000V:
- Single Core 1.5sqmm-1000sqmm
- Multi Core 1.5sqmm-400sqmm
See the following download for the full and complete technical specification for Prysmian FRZHMPJ cable joints.
Cable Joint Kit Standards

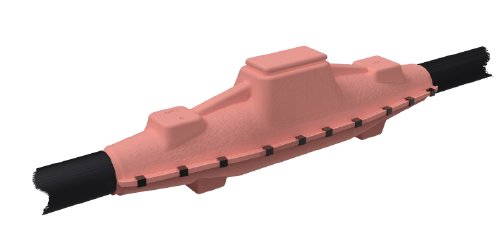

The cable joint kits and shells include rigid glass reinforced phenolic joint shells which are fire retardant and LSOH (Low Smoke Zero Halogen) – the following fire tests have been conducted on the cable joints:
- BS EN 50393:2015 – Test methods and requirements for accessories for use on distribution cables of rated voltage 0.6/1 (1.2)kV.
- BS6387:2013 – Test method for resistance to fire of cables required to maintain circuit integrity under fire categories (Categories C, W & Z).
- IEC 61034-2:2005+A1:2013 – Measurement of smoke density of cables burning under defined conditions
♦ BS6387 – Test method for resistance to fire of cables required to maintain circuit integrity under fire conditions.
Thorne & Derrick are distributors for the complete range of Prysmian Cable Joints for the reliable and safe jointing of industrial, hazardous area and fire resistant power cables to BS6387 standard.
View our complete range of LV Cable Joints.
