High Voltage Lead Sleeve Y Joint
Published 11 May 2021

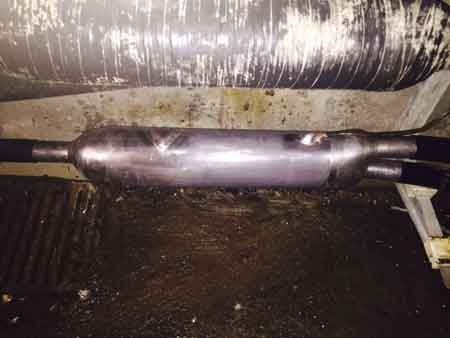

This striking splicing image demonstrates traditional cable jointing techniques requiring exceptional manual dexterity, acute concentration and advanced skill levels.
Modern polymeric cable jointing is now dominated by cold-shrink, click-fit and push-on type splices which are frequently alleged to have de-skilled the Jointer by introducing simplified installation processes.
Whether you agree or disagree, no jointer can dispute that “old-school” jointing skills demand the highest levels of professionalism, knowledge and ability:
- Sweated ferrules
- Hand applied oil tapes
- Plumbed lead sleeve
- Compound filled
Single end wipe completed by Jimmy Nicklin, double end wipe completed by Andrew O’Malley.
Image Courtesy of:Â Andrew O’Malley (IBEW 258 EHV Cable Jointer/Splicer).
