How To Measure & Install Access Chambers
Published 17 Aug 2020
How To Measure & Install Access Chambers
Access Chambers
Installation Guide

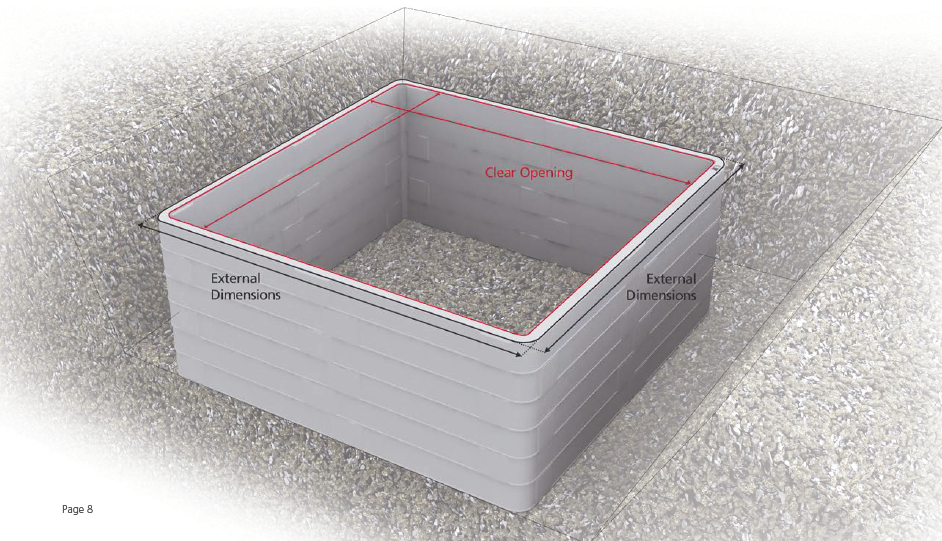

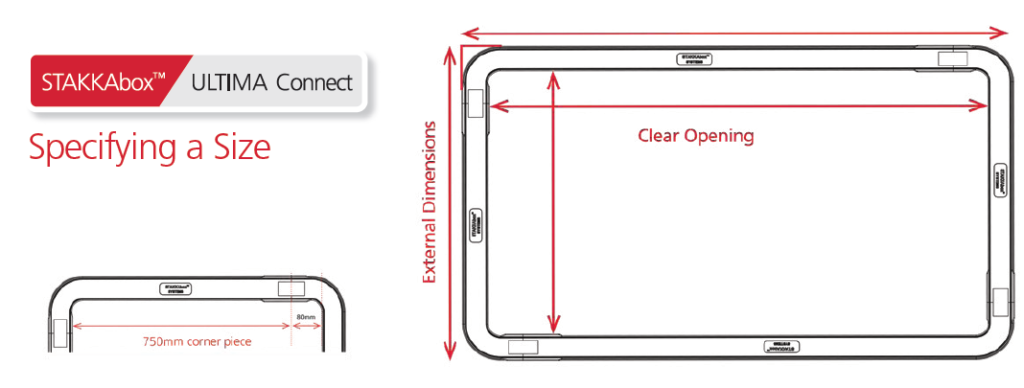

Network access chamber sections are measured by the measurements inside of the chamber. Attention should also be paid to the external dimensions when deciding whether the network access chamber will fit into the area required.
Access Chamber Dimensions
Rapid & Easy Installation

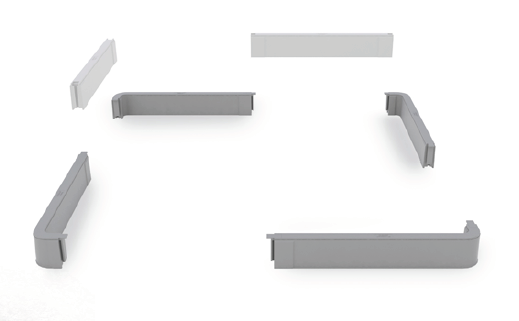

Step 1: Arrange corner pieces and sidewalls to match the chamber clear opening dimensions. Ensure that the lip is on the outside of the chamber. The corner pieces should be all ‘left’ or all ‘right’ on each section and will alternate between the two as the chamber increases in depth.
Step 1

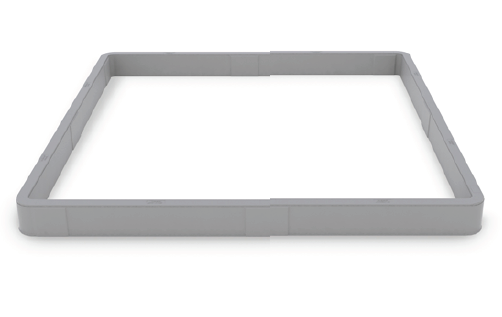

Step 2: Layout the first ring section of connect pieces to ensure you have the correct components.
Step 2

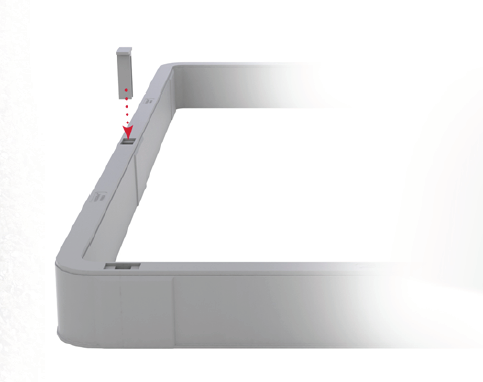

Step 3: Now connect the sections using the jointing peg, ensuring that the top of the peg is level with the top of the section.
Step 3

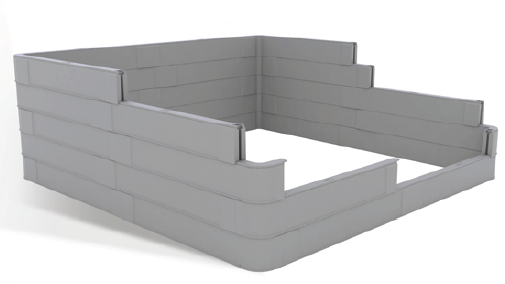

Step 4: Build the next section on top, using the alternative corner pieces. This will provide a ‘brick worked’ chamber ensuring any joints are not in a vertical line.
Step 4
Access Chamber Step By Step Installation Guide
CUBIS ACCESS CHAMBERS
STAKKAbox™ chambers are significantly faster to install than conventional alternatives, with complete installations typically taking under one hour. This results in reduced costs for the installer and significant time saving. No specialist equipment or plant is required in order to install an access chamber and there is no need for specialist box builders. With flexible installation, Cubis access chambers can be adapted to suit on-site conditions with standard tools to build over existing networks.
