KOPOS KOPOFLEX Solar Cable Ducts UV Resistant – Technical DatasheetDownloadKOPOS KOPOFLEX
Thorne & Derrick | Distributed from Stock | Approved Supplier | UK & Export Sales
Manufactured by KOPOS KOLIN, the KOPOS KOPOFLEX range of Solar Cable Ducts & Wiring Pipes are available as a standard model or UV Resistant (UV-Stabilised), allowing the product to withstand harsh weather conditions, making them ideal for underground and surface outdoor use.
Thorne & Derrick are approved suppliers for the KOPOS KOPOFLEX range, designed for mechanical and data wiring protection of all kinds, working in conjunction with our extensive range of 11kV 33kV 66kV power cables and cable accessories, including LV MV HV Cable Joints, Terminations & Connectors. Additionally, we stock a wide range of Duct Seals & Cable Sealing Systems, from manufacturers such as, CSD & Filoform, designed to prevent catastrophic damage to LV MV HV electrical distribution networks, substations and power supply – usable in conjunction with KOPOS KOPOFLEX.

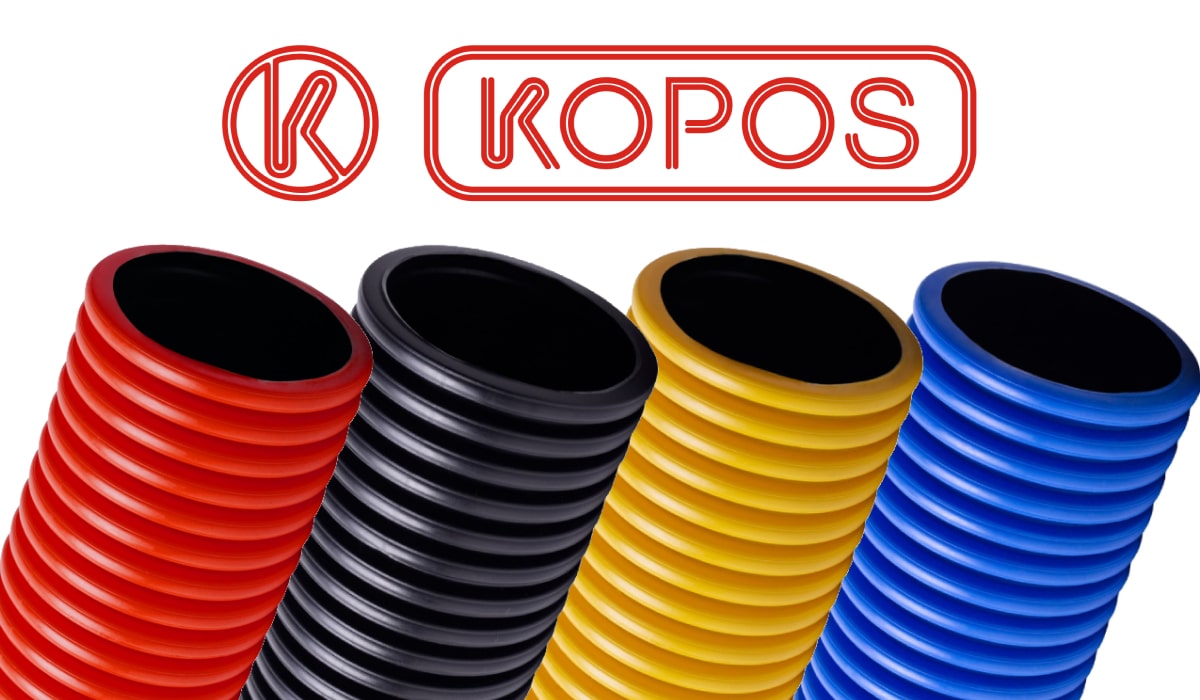

KOPOS KOPOFLEX Cable Ducts & Wiring Pipes
The KOPOS KOPOFLEX range of UV-stabilised (or standard) flexible double coat corrugated wiring pipes are halogen-free, designed to protect Low Voltage, Medium Voltage & High Voltage Cables 11kV 33kV 66kV. Part of the Solar Cable Ducts & Wiring Pipes KOPOFLEX, KOPODUR, KOPOHALF & KOPOKAN family, KOPOFLEX is available as a standard model or UV resistant in a variety of colour and sizing ranges, in order to suit every possible working environment in regards to visibility and compatibility.
Each KOPOS KOPOFLEX UV resistant wiring pipe/coil is equipped with a pull-through string or wire that ensures easy power cable insertion and a coupling on the end. The protection class for the sealing ring is IP 67 up to Ø 160mm.

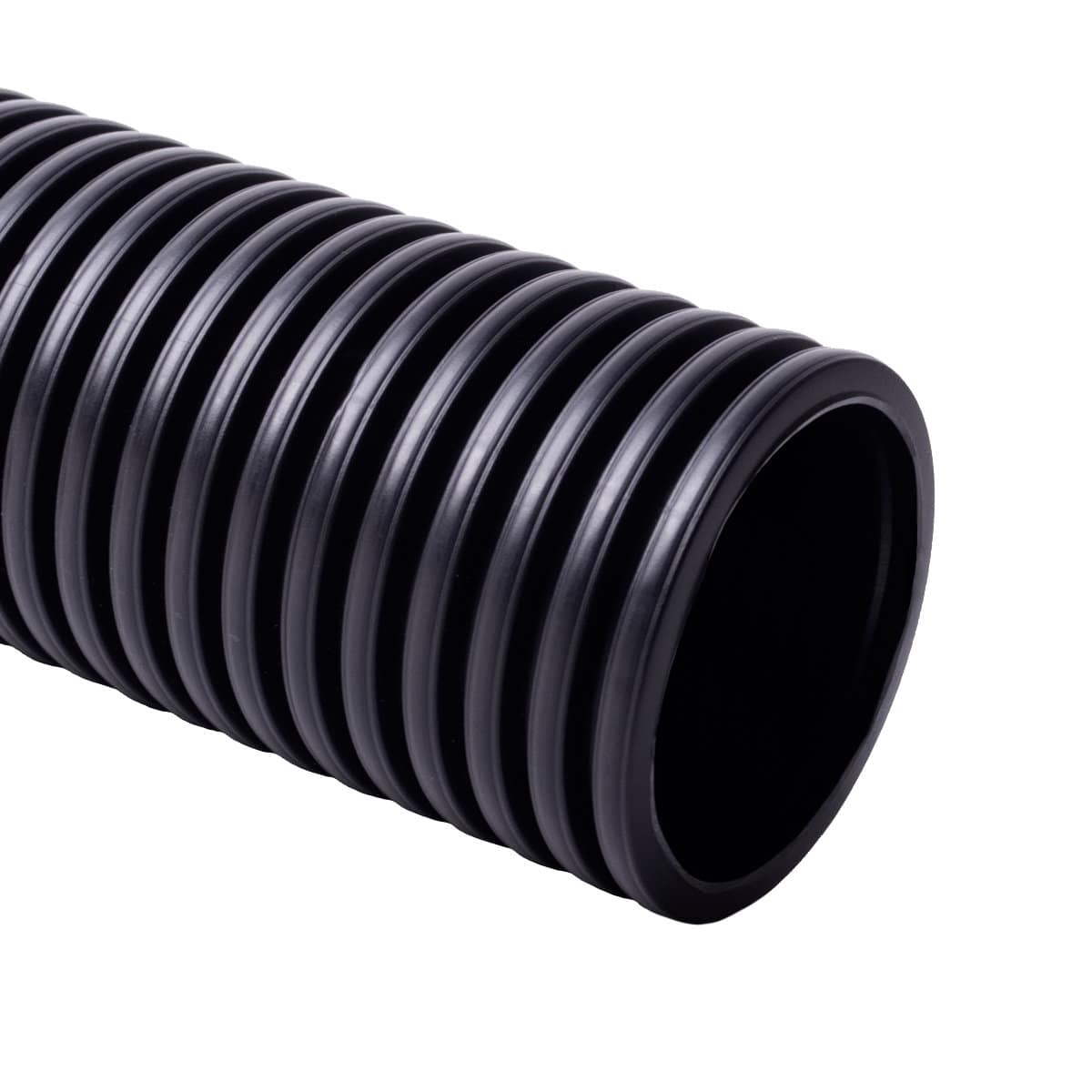

KOPOFLEX UV Resistant Flexible Double Coat Corrugated Cable Ducts
KOPOFLEX UV Resistant Solar PV Cable Ducts
KOPOS Solar PV Cable Ducts Technical Specifications
- Material: HDPE
- Halogen-free: Yes
- Self-snuffing: No
- Installation Temperature: -25 – +90°C
- Operating Temperature: -55 – +90 °C
- Fire Class for Underlying Material: A1
- UV Stable: Yes
- Mechanical Resistance: 450N / 20cm
- Protection Types: IP 40 (IP 67 up to Ø 160mm
- Meets the Requirements: EN 61386-24:11, EN 61386-1 ed 2:09
- Storage: ČSN 64 0090
- Length Tolerance: ± 0,5m
Accessories: Couplings, Sealing Rings, Closing Plugs & Distance Spacers
KOPOS Solar PV Cable Ducts Selection Guide
| KOPOFLEX UV-Stabilised Flexible Double Coat Corrugated Pipe | ||||||||
| product code | dn outer Ø (mm) | di min. inner Ø (mm) | min. bending radius (mm) | length = package (m) | package dimension (cm) | weight (kg/package) | pallet package (m) | colour |
| KOPOS KF 09040_UVFA | 40 | 32 | 230 | 50 | 64×31 | 5.5 | 3000 | black |
| KOPOS KF 09050_UVFA | 50 | 41 | 350 | 50 | 77×33 | 8.0 | 1800 | black |
| KOPOS KF 09063_UVFA | 63 | 52 | 350 | 50 | 80×46 | 11.0 | 1500 | black |
| KOPOS KF 09075_UVFA | 75 | 61 | 350 | 50 | 94×50 | 15.6 | black | |
| KOPOS KF 09090_UVFA | 90 | 75 | 400 | 50 | 113×50 | 20.0 | black | |
| KOPOS KF 09110_UVFA | 110 | 94 | 400 | 50 | 124×60 | 26.0 | black | |
| KOPOS KF 09125_UVFA | 125 | 108 | 500 | 50 | 135×62 | 30.0 | black | |
| KOPOS KF 09160_UVFA | 160 | 136 | 650 | 50 | 194×58 | 45.0 | black | |
| KOPOS KF 09200_UVFB | 200 | 176 | 850 | 25 | 160×60 | 30.5 | black | |
KOPOS KOLIN
KOPOS KOLIN have been the biggest producer of wiring material in Czech Republic for over 90 years, producing over 5,000 products, from wiring boxes, trunkings, parapet trunkings, cable ducts, double wall protector conduits, divided cable duct, and cable management systems, as well as producing environmentally-friendly products.
Applied in unison with the KOPOS KOLIN Solar PV Cable Ducts range, Thorne & Derrick distribute the most extensive range of MV HV Medium & High Voltage Cable Joints, Terminations & Connectors from manufacturers including 3M, Prysmian, Nexans Euromold, Elastimold, Pfisterer CONNEX & SEANEX and Shrink Polymer Systems.
Heat shrink, cold shrink, push-on and slip-over cable accessories enable the jointing, terminating and connection of 11kV-33kV and 66kV-132kV cables to oil, air or gas insulated switchgear, transformers, motors and overhead lines distributing electricity at medium/high voltages.
