Nexans Euromold 11kV Tee Connectors Terminating EPR & XLPE Cables Into Siemens Transformers
Published 08 Jan 2020
Images Courtesy of: Euan Palmer – Cable Technician at Prysmian Cables.
Cable Jointers:Â Euan Palmer, Alex Hope, David Barnes.
Nexans Euromold are world leaders in the manufacture of Screened Separable Connectors to enable the termination of medium voltage power cables onto outer cone bushings of electrical equipment including switchgear, transformers and motors.

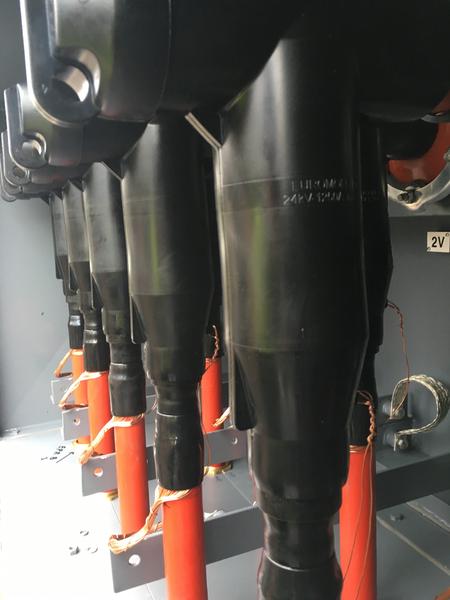

In this series of photographs, Nexans Euromold K440TB separable tee-connectors are shown terminating 11kV polymeric insulated cables into Siemens transformers – the 11kV single core cables include both Tratos (EPR) and Prysmian (XLPE) manufactured cables.
The medium voltage installation is located on Western Power Distribution (WPD) network, the electricity distribution network operator for the Midlands, South West and Wales.

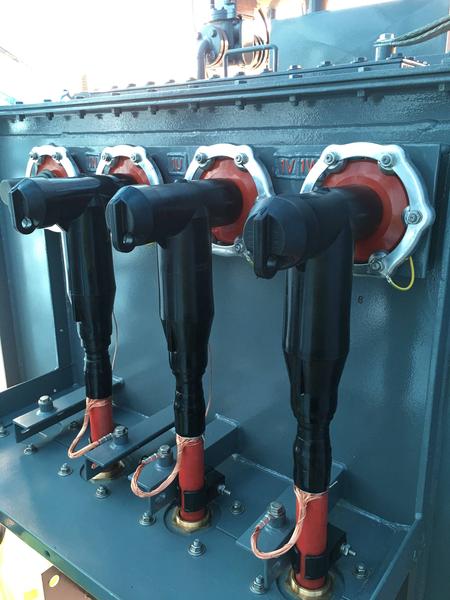

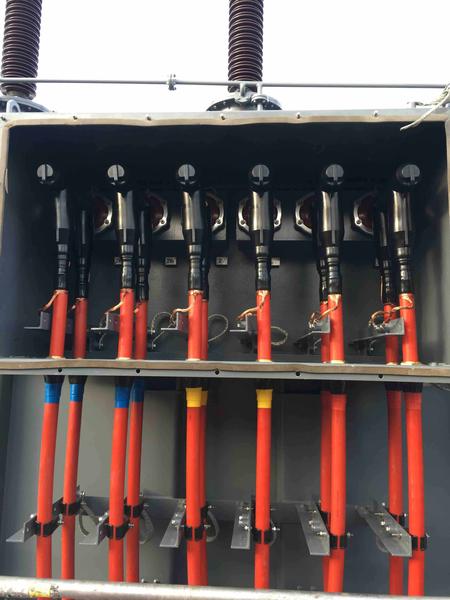

Pictured :Â 12 x 11kV Nexans Euromold Separable T Connectors Terminating 11kV Single Core Power Cables (9x630sqmm XLPE & 3x630sqmm EPR cable).

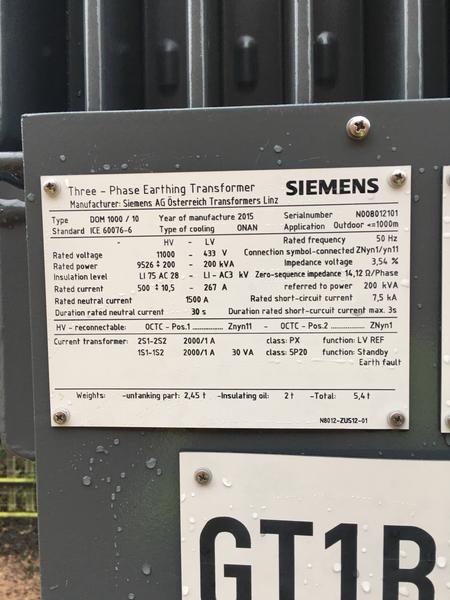

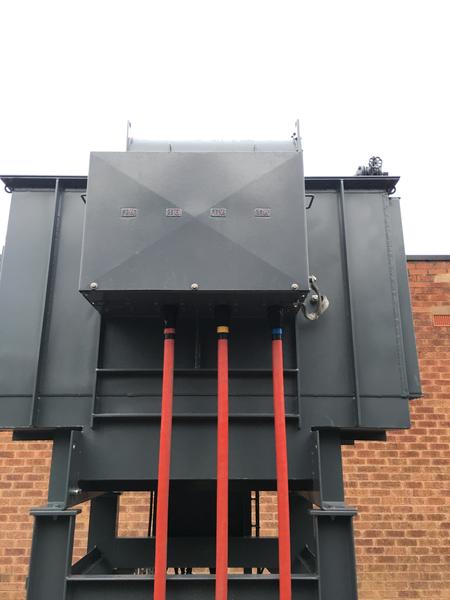

Siemens Three Phase Earthing Transformers , 11kV Outdoor
Manufacturer : STL – Siemens Aktiengesellschaft Österreich Transformers Linz
Since 1920, power utilities and industry have relied upon Siemens (STL) power transformers, reactors and earth-fault protection devices.
