Arc Flash Helmet & Visor 36 Cal

Arc Flash Helmet & Visor 36 Cal

ARC FLASH HELMETS

Category 3 Helmet By ProGARM

ProGARM Arc Flash Helmet & Visor is tested to achieve Category 3 protection against arc flash with 36cal/cm² rating.

Sizes: One Size

Should you require guidance on selection and use of an Arc Flash Calculator please call Thorne & Derrick, the UK’s leading specialist distributor of electrical safety equipment for LV (Low Voltage), MV (Medium Voltage) and HV (High Voltage).

Manufactured using Modified High Impact Polyamide the ProGARM Arc Flash Helmet protects the head against injuries caused by falling objects, electric shock by preventing shock current flow through the head and also against Arc Flash and molten metal splashes. Developed as safety personnel equipment for live working with electrical connections.

Arc Flash Helmet & Visor 36 Cal

Features & Benefits

Helmet

• Made of ABS
• Suitable for live working
• Smooth head circumference adjustment, range 53cm-63cm Helmet type (ANSI standard) – Type 1
• Lateral deformation resistance (EN Standard) – LD
• Molten metal splash resistance (EN Standard) – MM
• Resistance to penetration after conditioning in temperatures of –40°C to +60°C
• Electrical properties (EN standard) – 440 Vac
• Electrical Class O (1000 V AC/1500 V DC) according to EN 50365 Electrical Class E (20kV AC) according to ANSI Z89.1.1
• Compliance with ANSI Z89.1; EN397; EN 50365 standards Approved to EN 50365 – Electrically insulating helmets for use on low voltage installation
• Approved to ANSI Z89.1 – Industrial head protection
• Improved visibility with reflective stickers
• Manufacturing date and utilisation date permanently marked

Face Shield

• Made from Polycarbonate
• Protection against high-speed particles – B
• Protection against droplets and splashes of liquids (3)
• Full face, chin and neck protection against thermal hazards caused by electric arc flash
• Resistance to fogging – N
• Protection against electric arc: Class 2 – Box test 7kA/0.5s; ATPV > 36cal/cm2
• Compliance with standards: EN 166; GS-ET-29; ASTM F2178 Code number for ultra-violet filter (UV) – 2C-2
• Visible light transmittance (VLT) < 50% – Class 2
• Optical Class – 1
• Protection against molten metals and hot solids (9)
• Approved to ASTN F2178 – Standard specification for arc rated eye or face protective products
• Premium class anti-fog and anti-scratch protection
• Easy to wear with eyeglasses
• Incident energy – ATPV = 36cal /cm2

Chin Strap

• 4-point strap recommended for working at height
• Quick, clasp – easy operation with protective gloves

 See full range of Arc Flash Clothing, PPE & Protection Garments

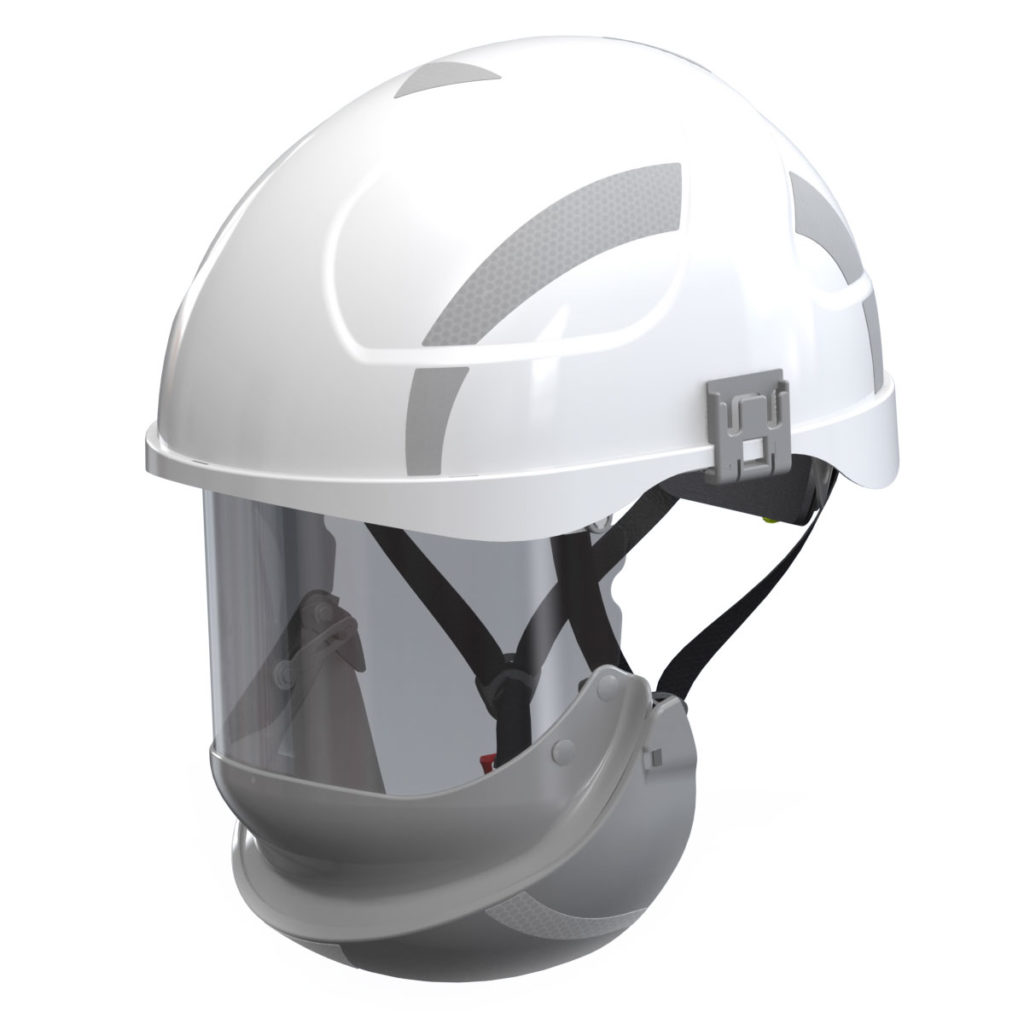

ProGARM 2696 Helmet & Visor

Technical Specification

• Size: One Size
• Colour: White
• Gender: Unisex
• Box Test: Class 2
• LOI: Not Applicable
• Protection Type: Antistatic // ARC Flash // Heat & Flame
• Fabric: Not Applicable
• Industry Sector: Industrial Electrical // Petrochemical // Rail<span // Utilities & Power Generation
• Type: Accessories // Helmets
• Collection: Accessories Collection // Head Protection Collection
• EN Standard: ASTM F2178 // EN 166 // EN 397 // EN 50365 // GS-ET 29

Arc Flash Helmet | Order Product Code ProGARM 2696

European Standards

ProGARM 2696 arc flash helmet & visor conform to the following European Standards:

• ANSI/ISEA Z89.1-2014
• ASTM F2178
• EN 397:2012 +A1:2012
• EN 50365:2002
• EN 166:2001
• GS-ET 29:2011-05

Helmet | Care Information

ProGARM 2696 arc flash helmet & visor must be carefully cleaned to ensure arc flash protection levels are maintained.

• Do not bleach, boil or use soap based products – clean polo shirts using detergents only
• Dirty clothing may lead to reduction in arc flash protection
• Company will not accept liability for garments where care labels have been ignored, neglected, defaced or removed
• Always store arc flash clothing in clean dry conditions
• Do not store in places subject to direct strong sunlight

Please note that Arc Flash helmets should be disposed of after their expiry date. The expiry date is stamped on the helmet and it applies to all its elements (shell, visor, harness, strap etc).

Arc Flash helmets have an expiry date because exposure to UV radiation, temperature, humidity etc will degrade the integrity and protection that the helmet provides over time. The life of the helmet is determined by prescribed testing from the Notified Body and following that testing the item is then issued with a conformity assessment and certificate.

Related Arc Flash Clothing Protection & Products

Arc Flash Jacket ProGARM 5790

Arc Flash Polo Shirt ProGARM 5280

Arc Flash Trousers ProGARM 5816

IEC 61482 PROTECTIVE CLOTHING AGAINST THE THERMAL HAZARDS OF AN ELECTRIC ARC

Arc flash clothing and garments in a layered combination deliver workwear protection against hazards according to IEC 61482 – PPE protects the worker against electric arc flash dangers. According to IEC 61482-1-1:2009 (encompassing NFPA 70E 2015) the 4 arc risk categories are numbered according to the severity threat and determine the clothing protection level required to protect against a minimum level of incident energy measured in calories / cm² – this is the ‘Open Arc’ test method and measures clothing protection level according to the Arc Thermal Performance Value (ATPV).

NFPA 70E outlines the requirements for safe work practices to protect personnel by reducing exposure to workplace electrical hazards.

The ‘Box Arc’ tests clothing materials and fabric according to a pass/fail test by exposure to electric arc produced by 4kA (Class 1) and 7kA (Class 2) short circuits – this is IEC 61482-1-2:2007.

ARC 1 4 Cal ♦ ARC 2 8 Cal ♦ ARC 3 25 Cal ♦ ARC 4 40 Cal

Garment Category – Helmet & Visor

Order Code – ProGARM 2696
