Arc Flash Waterproof Jacket Category 2 11 Cal Hi Vis Orange

arc flash jacket 11 cal

Arc Flash Waterproof Jacket Category 2 11 Cal Hi Vis Orange

Arc Flash Clothing

Category 2 Arc Flash Jacket By ProGARM

ProGARM Arc Flash Waterproof Jacket provides Category 2 protection against arc flash with 11cal/cm2 according to IEC 61482-2:2020 ‘open arc’ test method.

Should you require guidance on selection and use of an Arc Flash Calculator please call Thorne & Derrick, the UK’s leading specialist distributor of electrical safety equipment for LV (Low Voltage), MV (Medium Voltage) and HV (High Voltage).

Jacket sizes range from S-4XL, REG LEG (31”/80cm) and M-2XL TALL LEG (33”/85cm)

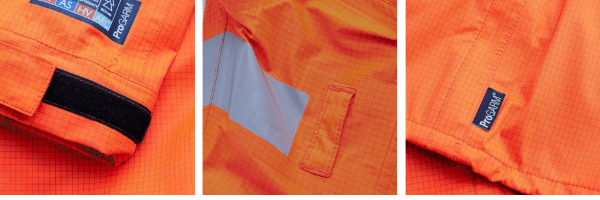

The 9140 Unlined Waterproof Jacket offers the ultimate innovation and protection. Brilliantly designed with the wearer’s safety, comfort and convenience in mind, it boasts many additional features including adjustable cuffs, two front pockets, adjustable waist tabs and studs to attach the 9141 Waterproof Jacket Hood. Jacket should be worn with 9144 Unlined Waterproof Dungarees as a two-piece set.

Arc Flash Protection

  • IEC 61482-2:2020 Open Arc Test Method Cal Rating – 11cal/cm2
  • IEC 61482-2:2020 Box Test Method Class 1 or Class 2 – Class 1 4kA

Arc Flash Jacket Category 2

Features & Benefits

  • Category 2 Arc Flash Protection
  • Mandarin collar – maximum neck protection
  • Adjustable cuffs – Close fit around wrists or gloves
  • Two front pockets – Extra, secure storage
  • Adjustable waist tabs – Ensures close fit
  • Studs to attach waterproof hood – Protection from all weather
  • Internal pockets – Secure storage

➡ See full range of Arc Flash Clothing, PPE & Protection Garments



ProGARM 9140 Waterproof Jacket

Arc Flash Jacket | Order Code ProGARM 9140

European Standards

ProGARM 9140 Waterproof Jacket conforms to the following European Standards:

  • EN ISO 11611: 2015 | Class 1 | A1
  • EN ISO 11612: 2015 | A1 | B1 | C1 | D1 | E1 | F1
  • EN 1149-5:20018 | Pt. 5:2008 | Pt. 3:2004 | Charge Decay
  • BS EN 61482-2:2020: APC 1 | ATPV=11 cal/cm² | ELIM=9.3 cal/cm²
  • EN 13034:2005: Type 6
  • EN 343:2019: Class 4/3
  • EN ISO 20471:2013: Class 3
  • RIS 3279: Issue 2

Jacket | Care Information

ProGARM 6100 coveralls must be carefully cleaned to ensure arc flash protection levels are maintained.

  • Do not bleach, boil or use soap based products – clean polo shirts using detergents only
  • Dirty clothing may lead to reduction in arc flash protection
  • Company will not accept liability for garments where care labels have been ignored, neglected, defaced or removed
  • Always store arc flash clothing in clean dry conditions
  • Do not store in places subject to direct strong sunlight

Arc Flash coverall Size Chart

S M L XL 2XL 3XL 4XL
UK 38″S 40″S 42″S  43″S 44″S 46″S 48″S 50″S 52″S 54″S 56″S 58″S 60″S
CHEST TO FIT (INCHES)                                         36-38 38-40 40-42 42-43 43-44 44-46 46-48 48-50 50-52 52-54 54-56 56-58 58-60
CHEST TO FIT (CMS) 90-95 95-100 100-105 105-107.5 107.5-110 110-115 115-120 120-125 125-130 130-135 135-140 140-145 145-150
 INSIDE LEG TO FIT (INCHES)                                      29.5 29.5 29.5 29.5 29.5 29.5 29.5 29.5 29.5 29.5 29.5 29.5 29.5
INSIDE LEG TO FIT (CMS) 75 75 75 75 75 75 75 75 75 75 75 75 75
EUR 48S 50S 54S 55S 56S 58S 60S 62S 64S 66S 68S 70S 72S
DE 24 25 26 27 28 29 30 31 32 33 34
NL 46S 48S 52S 53S 54S 56S 58S 60S 62S 64S 66S 68S 70S

Related Arc Flash Clothing Protection & Products​

IEC 61482 PROTECTIVE CLOTHING AGAINST THE THERMAL HAZARDS OF AN ELECTRIC ARC

Arc flash clothing and garments in a layered combination deliver workwear protection against hazards according to IEC 61482 – PPE protects the worker against electric arc flash dangers. According to IEC 61482-1-1:2009 (encompassing NFPA 70E 2015) the 4 arc risk categories are numbered according to the severity threat and determine the clothing protection level required to protect against a minimum level of incident energy measured in calories / cm² – this is the ‘Open Arc’ test method and measures clothing protection level according to the Arc Thermal Performance Value (ATPV).

NFPA 70E Arc Flash Clothing

NFPA 70E outlines the requirements for safe work practices to protect personnel by reducing exposure to workplace electrical hazards.

The ‘Box Arc’ tests clothing materials and fabric according to a pass/fail test by exposure to electric arc produced by 4kA (Class 1) and 7kA (Class 2) short circuits – this is IEC 61482-1-2:2009.

ARC 1 4 Cal ♦ ARC 2 8 Cal ♦ ARC 3 25 Cal ARC 4 40 Cal

IEC Standard 61482 – Class 1

Garment Category – Jacket

Order Code – ProGARM 9140
