Tools

Cembre are world-leading manufacturers of Electrical Connectors & Cable Lugs for LV (Low Voltage), MV (MV Medium Voltage) and HV (High Voltage) jointing, termination and connection of underground cables (copper and aluminium) and overhead lines – this is supported by the Cembre range of crimping and cutting tools using hydraulic or battery power technology.

This section provides an overview of hydraulic crimping and cutting tools manufactured by Cembre and available from their Authorised UK Distributor Thorne & Derrick – we can offer excellent customer service, competitive prices and fast delivery from stock for the complete ranges of cable lugs, connectors and tools from Cembre.

Battery Powered Cutting Tools & Heads

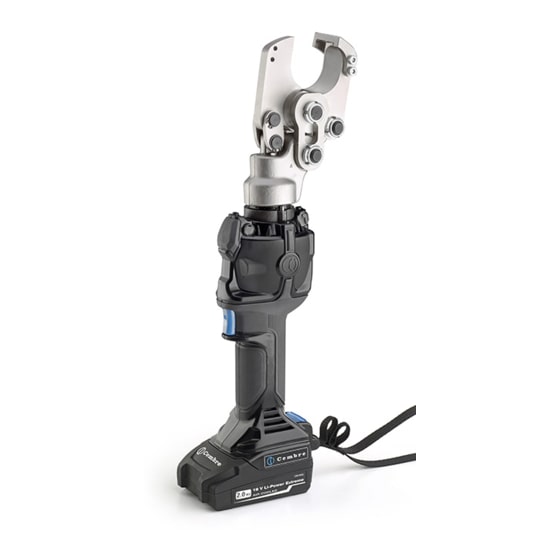

Cembre B-TC320NDFE

Battery Powered Cable Cutting Tool
Up to 32mm Diameter
Suitable for Cutting Copper (Cu) & Aluminium (Al)
Tool Weight 4.0Kg
180° Rotating Tool Head
Scissor head facilitates the cutting of cables

Cembre B-TC320NDFE

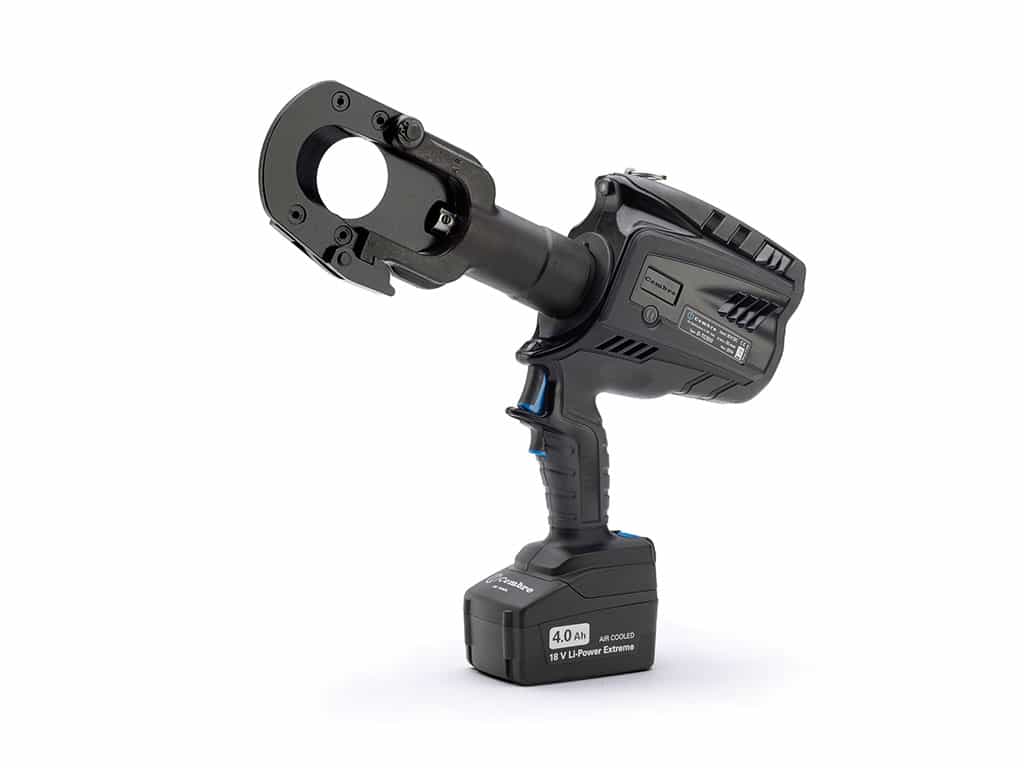

Cembre B-TC500E

Battery Powered Cable Cutting Tool
Up to 50mm Diameter
Suitable for Cutting Copper (Cu) & Aluminium (Al)
Tool Weight 5.8Kg
Li-ION 18.0V 2.0Ah Battery
Head can be opened to allow the cutting of running cables
90° Rotating Tool Head

For further technical information, specification, user information and maintenance please see Cembre B-TC500E.

Cembre B-TC500E

Cembre B-TC950E

Battery Powered Cable Cutting Tool
Up to 95mm Diameter
Suitable for Cutting Copper (Cu) & Aluminium (Al)
Tool Weight 7.8Kg
Li-ION 18.0V 5.2Ah Battery
Head can be opened to allow the cutting of running cables
335° Rotating Tool Head

For further technical information, specification, user information and maintenance please see Cembre B-TC950E.

Cembre B-TC950E

Cembre TC050

Cable Cutting Head
Up to 50mm Diameter
Suitable for Cutting Copper (Cu) & Aluminium (Al)
Max operating pressure 700 bar
Head can be opened to allow the cutting of running cables

For further technical information, specification, user information and maintenance please see Cembre TC050.

Cembre TC050

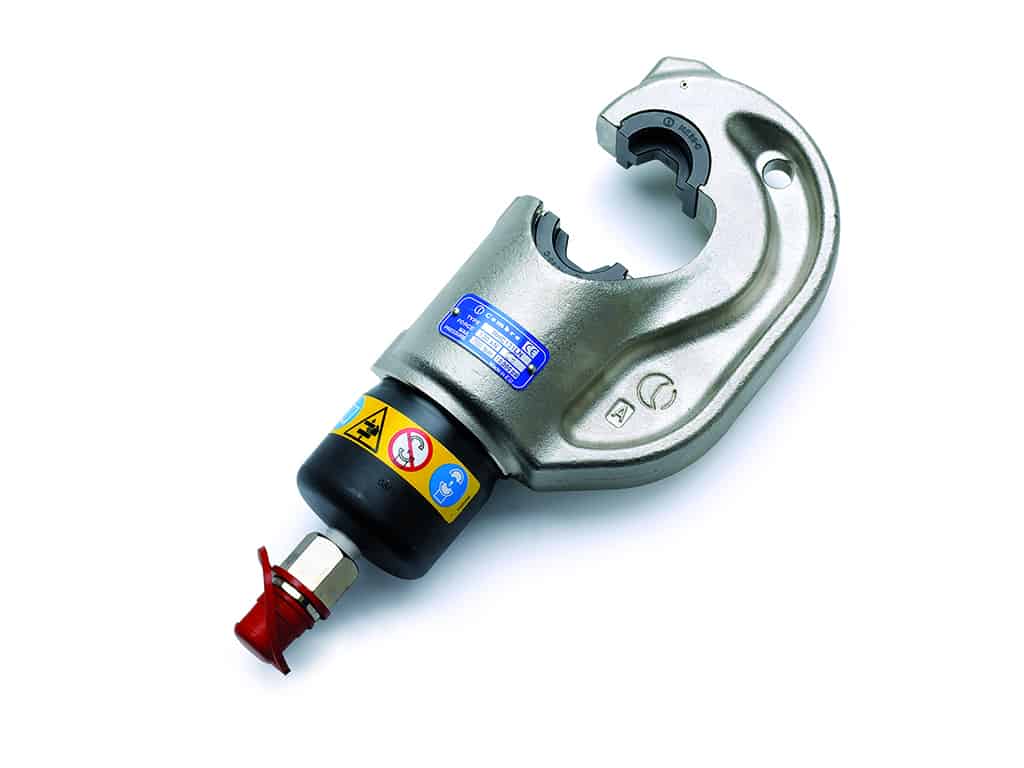

Cembre RHC131

Cable Crimping Head
10-400sqmm Cables
Crimping Tool Force 130kN
Max operating pressure 700 bar
Jaw opening: 25mm
Same crimping range as HT131-C

For further technical information, specification, user information and maintenance please see Cembre RHC131.

Cembre RHC131

You can view further information about the Cembre range of Tools here

Cable Tools

Thorne & Derrick supply the most extensive range of Tools to enable the installation, maintenance and repair of electrical power systems and cables – this includes the innovative StrutSlayr which enables contractors to cut Strut channel in less than 5 seconds without manual reliance upon conventional saws or grinders. StrutSlayr improves efficiency, labour productivity and site safety without sawing sparks. To ensure the reliable operation of LV HV power systems we distribute a complete range of Jointing Tools for the the removal and stripping of outer cable sheath, semi-conductor screen and insulation from LV, MV, HV and EHV power cables from world-market leaders Alroc.

Tools | Cut Crimp Prepare
