LV Insulated Piercing Connectors By Pfisterer

Low Voltage Live Working (1kV) & Cable Jointing

Live line working is increasingly essential in low voltage networks. Ensuring safe live line working is imperative even at low voltages. Bolted connectors used for this purpose should be easy to install and ensure the best possible occupational safety.

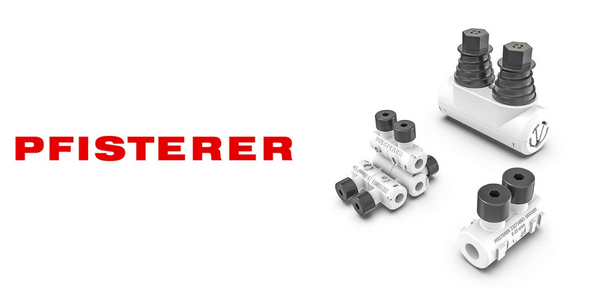

The LV insulated piercing connector family from PFISTERER has been developed to meet today’s practical requirements.

Durable contacts come as standard, and have been a PFISTERER core competence for nearly 100 years.

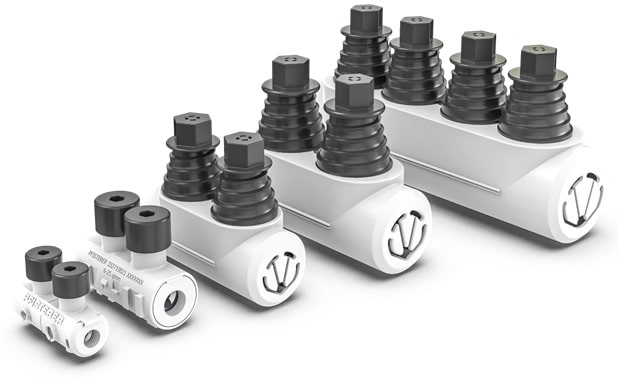

LV Piercing Connectors | Product Family

Insulated Piercing Connectors LV

Benefits

• Increased occupational safety
• IP2X / creepage distance
• Ideal for live line working (AuS)
• Quick and simple Installation
• No stripping of conductors required
• Shear-off bolts prevent installation mistakes
• Reliable design – electrical & mechanical  qualified according to IEC 61238-1 class A
• Compact dimensions – less cast resin when jointing cables
• Applicable with resin and heat shrink sleeves

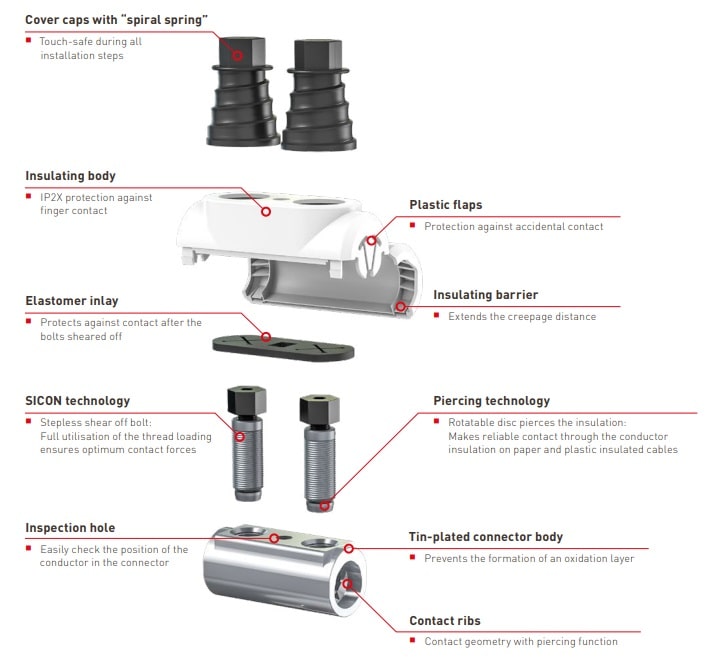

Cover caps with “spiral spring”

• Touch-safe during all installation steps

Insulation body

• IP2X protection against finger contact

SICON Technology

• Stepless shear bolt: Full utilisation of the thread loading ensures optimum contact forces

Inspection hole

• Easily check the position of the conductor in the connector

Plastic flaps

• Protection against accidental contact

Insulating barrier

• Extends the creepage distance

Elastomer inlay

• Protects against contact after the bolts sheared off

Piercing technology

• Rotatable friction disc pierces the insulation: Makes reliable contact trough the conductor insulation on paper and plastic insulated cables

Tin-plated connector body

• Prevents the formation of an oxidation layer

Advantage of the patented, movebale friction disc

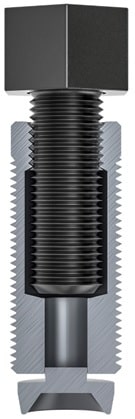

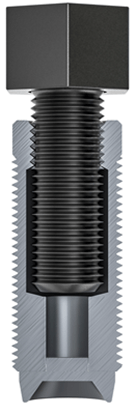

PFISTERER bolt without moveable friction disc	PFISTERER bolt with moveable friction disc
Good piercing function of the bolt in case of the rotating “sharp” disc. High head friction	Good piercing function of the bolt caused by the high contact force in case of low head friction

Comparison contact technique

PFISTERER bolt without moveable friction disc	PFISTERER bolt with moveable friction disc

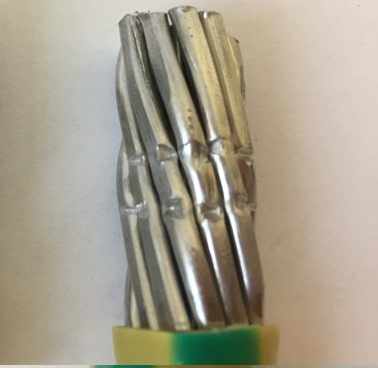

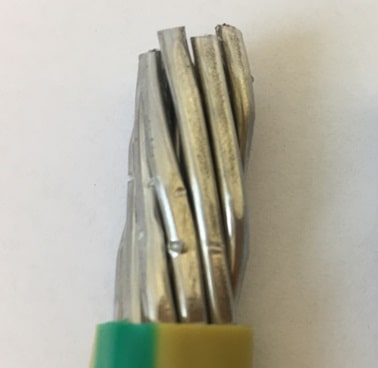

Poor piercing function & contact marks at the lower side of the conductor (14 Nm)	Excellent contact marks at the lower side of the conductor (14 Nm) >200% more contact area (70mm² AL SM)

LV Piercing Connectors

Cross section range, IP class, torque, tools

	Type 1 332 710 010	Type 2 332 710 021	Type 3 332 710 030	Type 4 332 710 040	Type 5 332 710 050
Cross section*
	1 – 10	6 – 25	16Cu + 25 – 70	35Cu + 50 – 120 + 150Al	70Cu + 95 – 240
	–	6 – 25	16Cu +25 – 70	35Cu + 50 – 120	70Cu + 95 – 240
	–	10 – 16	25 – 95	50 – 150	95 – 240
	–	–	25 – 70	50 – 120	95 – 185
Torque (ca.)	2,5 Nm	8 Nm	14 Nm	27 Nm	27 Nm
Tools	SW4	SW6	SW16	SW16	SW16
IP Class	IP2X	IP2X**	IP2X	IP2X	IP2X

*  Qualified for cable types according to EN 60228 (Class 1 & 2). NEN 3616, NEN 3617, NEN 3172. Suitable for PVC, XLPE, PILC*

** IP2X only with inserted conductor

Dimensions

	Type 1 332 710 010	Type 2 332 710 021	Type 3 332 710 030	Type 4 332 710 040	Type 5 332 710 050
Length	5	57	84	114	177
Width	21	28	34	40	48
High (unmounted)	37	47	71	88	88
High (mounted)	28	38	36	44	50
Bolt	CuZn	Al	Al	Al	Al
Connector body	Al, tinned	Al, tinned	Al, tinned	Al, tinned	Al, tinned

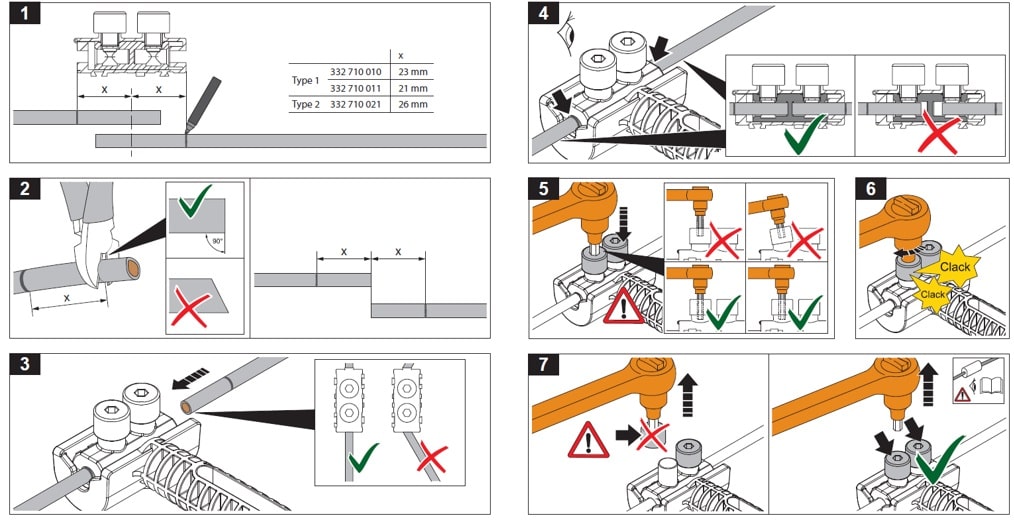

Installation Steps

Type 1-2

Type 3-4

2DIREKT | ISICOMPACT | LV Piercing Connectors
