Insulated Tools & Live Working Tools IEC60900

Insulated Tools & Live Working Tools

Insulated Tools | IEC60900

Live Working Cable Jointing Tools In Accordance with IEC60900

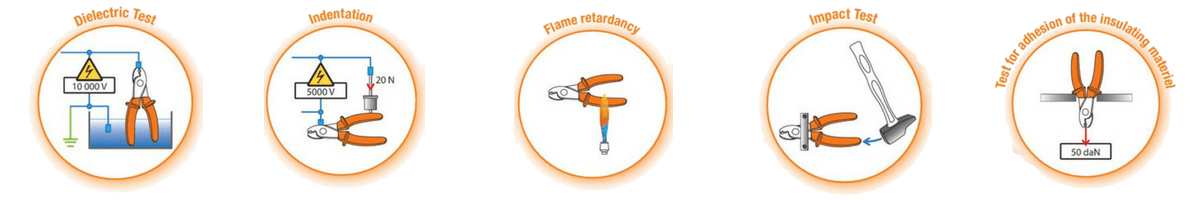

CATU insulated tools and live working tools tools comply to IEC 60900 and NF EN 60900 standards and undergo 10kV through electrical testing and severe mechanical tests including impact tests, tearing tests and puncture tests to meet these standards and are for working live at nominal voltages up to 1kV AC and 1.5kV DC.

Insulated Tools & Live Working Tools

Full tool kits for low voltage applications are available with either dual material construction or dual layer, offering different benefits and features to each.

Insulated Tools & Live Working Tools

INSULATED CABLE CUTTERS

The Klauke ES32SISML-WSH is a cable cutting tool with a maximum cutting range of 32mm suitable for use with copper and aluminium conductors up to 300sqmm. The Klauke ES32SISML has a slim cutting head for Jointers working in substations, switchgear and trenches with confined spaces – the insulated cable cutters provide advanced worker and electrical protection to utility contractors working live in the vicinity of energised Mains and Service cables up to 1000V.

Klauke cutting tools are available with 10.8V DeWalt Li-Ion Batteries and are fully insulated to the electrical requirements of IEC 60900.

Designed specifically for LV Cable Jointers, the ES32SIS-WSH features a shortened blade profile, minimizing the risk of accidental contact with an adjacent phase during cable cutting and jointing operations. The redesigned blade pivot point ensures maximum cutting leverage, allowing for the efficient cutting of single-core stranded copper and solid aluminium cables up to 300sqmm – lightweight, compact and providing ultimate electrical safety when cutting and working on LV networks prior to Jointing Cables or Terminating.

Insulated Battery Hydraulic Cutting Tool

Dual Material Insulated Tools – Features & Benefits

Suitable for work on live cables, particularly low voltage (30cm area of a live bare wire, cable or conductor)
Ergonomic IEC60900 tools
Dual material with non-skid “softgrip” injected material for operator comfort

Dual Layer Insulated Tools – Features & Benefits

Extensive product live for work on live cables; mainly used by LV Live Line Working teams
Ergonomic IEC60900 tools
Dual-layer with a white insulating layer
High mechanical strength in the layers due to dipping technique
Steel with high mechanical properties

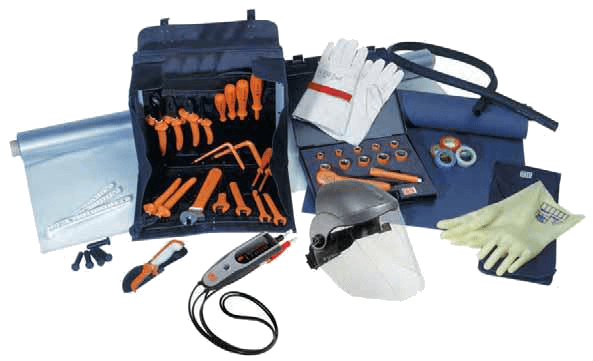

CATU Insulated Tools & Live Working Tools – LV Complete Set

CATU Part Number	MO-510-03 (Delivered without tool bag)
Personal Equipment
MO-186	1 Face Shield
CG-98-C	1 Working Gloves Size C
CG-05-B	1 Rubber Gloves Size B
CG-36	1 Carrying Bag for Rubber Gloves
MP-42/16	1 Insulating Mat 3mm
Voltage Detector
MS-917	1 Voltage Detector
Insulating
MP-26-A	10 Insulating Caps
MP-35/12	1 Insulating Blanket
MP-4110	10 Wood Clamps for Insulating Blanket
MP-32/15	6 Line Protectors 1.50m
MP-19	5 Insulating Adhesive Tapes
Insulating Tools
MO-61001	1 Stripping Knife
MO-67502	1 Cable Cutter 230mm
MO-68008/19	1 Open End Spanners Set With 8 / 10 / 11 / 12 / 13 / 14 / 19mm
MO-69903	1 Right Angle Hexagonal Key Wrench 3mm
MO-69904	1 Right Angle Hexagonal Key Wrench 4mm
MO-69906	1 Right Angle Hexagonal Key Wrench 6mm
MO-751	1 Insulating Folding Rule
MO-69003	1 Adjustable Spanner 250mm
MO-66002	1 Universal Pliers 180mm
MO-66202	1 Round Nose Pliers 160mm
MO-66502	1 Water Pump Pliers 250mm
MO-67102	1 Side Cutter 160mm
MO-69308/23	1 Sockets 3/8″ Wrench Set with 10 Sockets: 8, 10, 12, 13, 14, 17, 19, 21, 22, 23
MO-65205	1 Flat Blade Screwdriver 4 x 100
MO-65207	1 Flat Blade Screwdriver 6.5 x 150
MO-65209	1 Flat Blade Screwdriver 8 x 175
MO-65232	1 Phillips Screwdriver No.1
MO-65234	1 Phillips Screwdriver No.2
MO-65236	1 Phillips Screwdriver No.3
Optional Tool Bags
MO-34	Leather Tool Bag
MP-01	Bag for Insulating Mats
M-87384	Bag for Face Shield and Helmet
M-87386	Multi-Pocket Electrician Bag
