Prysmian Separable Connectors

Prysmian Separable Connectors - Tee, Straight & Elbow Connectors

Prysmian Separable Connectors – Tee, Straight & Elbow Connectors

Prysmian Connectors

Prysmian separable connectors are suitable for a wide range of applications including 11kV-33kV connection of medium/high voltage power cables to transformers, switchgear and motors.

The separable connectors are protected by a watertight conductive envelope connected to the earth making them suitable for indoor and outdoor installations.

Prysmian elbows are supplied as a kit of three single separable connectors containing all components to terminate the medium/high voltage cable including fixing bail and earthing wire. Connector installation requires no specialist jointers tools, heating, taping or compound box filling. The connectors feature a protected capacitive test point for checking absence of voltage prior to cable disconnection.

Prysmian Separable Connectors

High Voltage

Prysmian Tee Connectors 11kV 33kV Medium & High Cable Connectors (MV HV)

  • Prysmian Interface C Tee Connectors 11kV 33kV

Prysmian Straight Connectors – 11kV 33kV Connectors Suit Interface A, B & C Bushings

  • 11kV 24kV Connectors Suit Interface A Switchgear & Transformers – Straight Connector
  • 33kV Connectors Suit Interface B Switchgear & Transformers – Straight Connector
  • 33kV Connectors Suit Interface C Switchgear & Transformers – Straight Connector

Prysmian Elbow Connectors – 11kV 33kV Connectors Suit Interface A & B Bushings

  • Prysmian Interface A Elbow Connectors 11kV 24kV
  • Prysmian Interface B Elbow Connectors 33kV 36kV

Bushing Types

11kV 33kV

Interface A Bushings

200 Series Interface Type A Bushing

  • Connection Type – 7.9mm Plug-in Pin Contact
  • Voltage Range – 12-24kV
  • Current Rating – 250amps
  • Specification – CENELEC EN50180 & EN50181 – European standard for bushings above 1kV up to 52kV for liquid filled transformers

➡ Key Prysmian Products

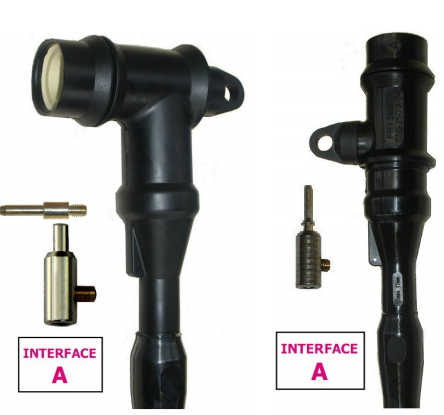

Interface A Bushing Connectors 250Amp 7.9mm Pin Type Screened Separable Connectors

Interface A Bushing Connectors 250Amp 7.9mm Pin Type Screened Separable Connectors

Interface B Bushings

400 Series Interface Type B Bushing

  • Connection Type – 14mm Plug-in Pin Contact
  • Voltage Range – 11/12kV-33/36kV
  • Current Rating – 400amps
  • Specification – CENELEC EN50180 & EN50181 – European standard for plug-in type bushings above 1kV up to 52kV for liquid filled transformers

➡ Key Prysmian Products

Interface B Bushing Deadbreak Connectors 400Amp 14mm Pin Type Screened Separable Connectors

Interface B Bushing Deadbreak Connectors 400Amp 14mm Pin Type Screened Separable Connectors

Interface C Bushings

400 Series Interface Type C Bushing – 630A

  • Connection Type –  M16 Bolted Copper Insert
  • Voltage Range – 11/12kV-33/36kV
  • Current Rating – 630amps
  • Specification – CENELEC EN50180 & EN50181 – European standard for bushing or plug-in type bushings above 1kV up to 52kV for liquid filled transformers

➡ Key Prysmian Products

400 Series Interface Type C Bushing – 1250A

  • Connection Type –  M16 Bolted Copper Insert
  • Voltage Range – 11/12kV-33/36kV
  • Current Rating – 1250amps
  • Specification – CENELEC EN50180 & EN50181 – European standard for bushing or plug-in type bushings above 1kV up to 52kV for liquid filled transformers.

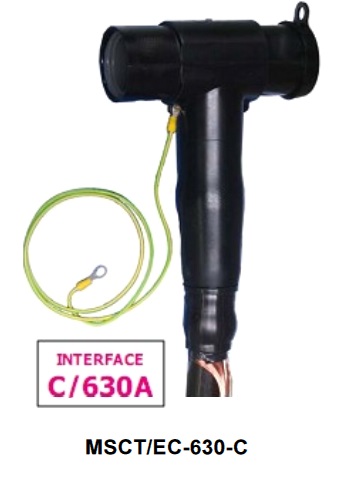

Interface C Bushing Deadbreak Connectors 630Amp M16 Bolted Screened Separable Connectors

Interface C Bushing Deadbreak Connectors 630Amp M16 Bolted Screened Separable Connectors

➡ View the complete range of Separable Connectors & Cable Terminations (Heat Shrink or Coldfit) manufactured by Prysmian.

Prysmian Tee Connectors from the Formfit range connect and terminate Polymeric type cables into medium/high voltage electrical equipment with switchgear and transformer bushings to CENELEC EN 50180 (EN 5018) Standards – the deadbreak connectors can be immediately energised once installed onto the bushings of MV HV Power Systems. Thorne & Derrick distribute the most extensive range of MV HV Medium & High Voltage Cable Joints, Terminations & Connectors from manufacturers including 3M, Prysmian, Nexans Euromold, Elastimold, Pfisterer CONNEX & SEANEX and Shrink Polymer Systems.

Thorne & Derrick distribute the most extensive range of MV HV Medium & High Voltage Cable Joints, Terminations & Connectors from manufacturers including 3M, Prysmian, Nexans Euromold, Elastimold, Pfisterer CONNEX & SEANEX and Shrink Polymer Systems.Heat shrink, cold shrink, push-on and slip-over cable accessories enable the jointing, terminating and connection of 11kV-33kV and 66kV-132kV cables to oil, air or gas insulated switchgear, transformers, motors and overhead lines distributing electricity at medium/high voltages.

MV HV High Voltage Cable Joints | Cable Terminations | Cable Connectors | Distributed from Stock | UK & Export Sales

Cables for Medium & High Voltage Power Systems

Prysmian | Connectors | Medium Voltage & High Voltage Cable Accessories

Prysmian | Connectors | Medium Voltage & High Voltage Cable Accessories

Prysmian MV cables are Made in Britain – standard MV cables range between 6.6kV, 11kV, 22kV up to 33kV including IEC 60502-2, BS6622 (BS7835) and BS7870 type plus Triplex variants. Medium voltage (MV) cables for commercial, industrial and utility distribution networks with XLPE insulation in single core (Unarmoured & Armoured AWA Aluminium)  and 3-core (Armoured SWA Steel) designs – fire resistant (IEC-60332-3-22 or 24), flame retardant (IEC 60332-1-2), chemical barrier, LSZH Low Smoke Zero Halogen (IEC-60754-1) and hydrocarbon resistant cable sheath specifications are available. HEPR & EPR cable insulation with CWS (Copper Wire Screen) or CTS (Copper Tape Screen) and LS (Lead Sheath) are also available – contact us.
