Chamfering Tool | 11kV-33kV HV XLPE Insulation 15-60mm | Boddingtons 244240

11kV-33kV HV XLPE Insulation Chamfering Tool 15-60mm - Boddingtons Electrical 244240

Chamfering Tools for Medium & High Voltage Power Cables with XLPE Insulation

Boddingtons 244240 Stocked By Thorne & Derrick | UK & Export Sales

Boddingtons 244240

Chamfering Tools

Medium & High Voltage Cable Tools | Insulation Chamfering Tool MV HV

Manufacturer: Boddingtons Electrical
Order Code: 244240
Tool Weight: 390g
Cable Chamfer Tool Application Range: diameter Ø 15 – 60mm
Rotation Diameter: maximum 200mm
Designed for chamfered cuts of primary insulation of (11kV-33kV) MV cables (2 x 45°)
Positioning on the cable with a clamp system
Tool fitted with PTFE plates ensuring optimal sliding on the cable without the use of silicone paste
Interchangeable blade
This tool is not suitable for pencilling medium voltage (MV) and high voltage (HV) cables
Equivalent Intercable Tool UFS 17240

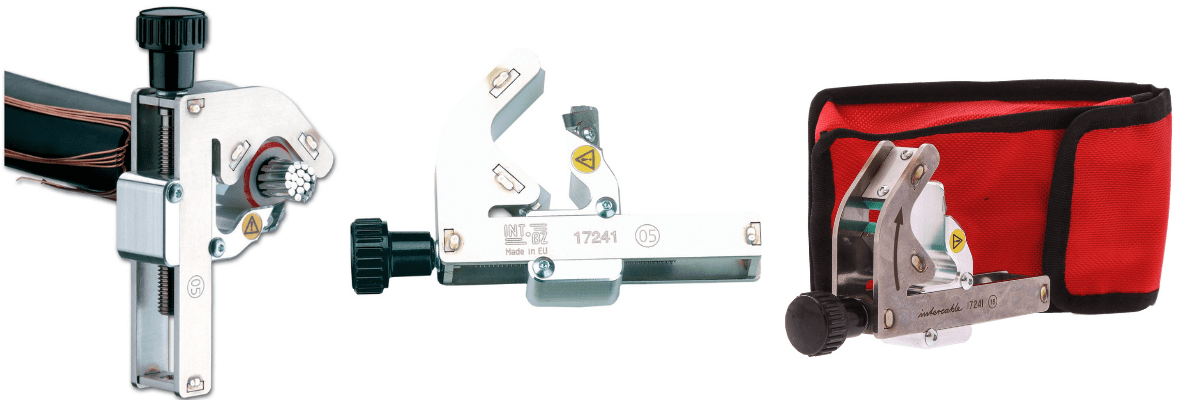

The Intercable UFS 17240 tool for chamfering the primary XLPE insulation allows a precise circular cut at the primary insulation and defuses the edge created by the cut prior to installing joints and terminations. The stripping tool is positioned on the MV HV cable with a clamping screw, the cutting blade is located on the top of the primary insulation and then turned around the cable – without the use of silicone paste. The UFS tool for chamfering is suitable for the application range from 15 to 60mm diameter, has a maximum rotation diameter of 130mm and interchangeable blades.

Chamfering Cables

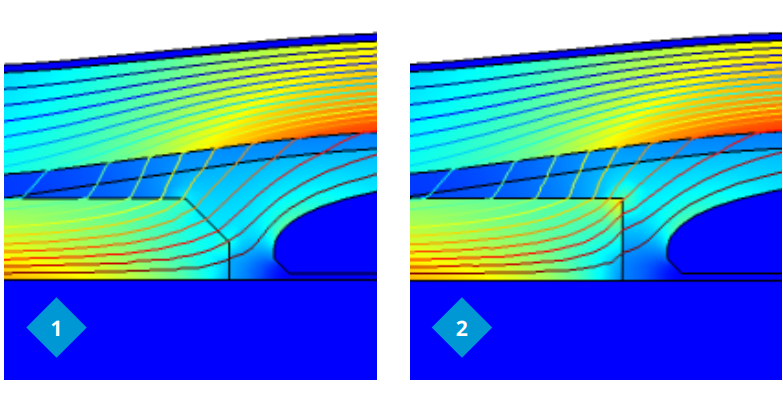

Chamfering cables using appropriate cable preparation tools by the jointer decreases the density of the electric field at the edge of the cable insulation. The results of a simulation using Comsol show a lower density in the chamfered insulation in Picture 1. On the other hand, Picture 2 shows a higher density at the sharp edge of the unchamfered cable insulation. From a mechanical perspective, chamfering of cables is highly recommended when installing cold shrink joints – this prevents damage on the silicone joint body if heavy objects (rocks for example) hit the cable joints.

Chamfer Cables Tools
