11kV Cable Termination Heat Shrink Kits 3 Core 300-500sqmm SPS 3TIS-12X-D

Cable Termination Cable Joints - Heat Shrink MV HV

11kV cable termination kits using heat shrink tubing and technology are suitable for terminating medium/high voltage (MV-HV) 3 core polymeric cables (XLPE EPR)  – this includes cables with copper wire or tape screen and armoured (wire armoured/braided) or unarmoured cable for indoor termination of 11kV cables, outdoor version also available.

SPS 3TIS-12X-D cable termination kit suits 11kV cables with 300sqmm, 400sqmm, 500sqmm 3 core conductors (copper or aluminium).

11kV Cable Termination

HV High Voltage – Indoor

  • Cable Termination Type – Heat Shrink
  • Operating Voltage – 11kV
  • Termination Location – Indoor (Cable Box, Substation, Switchgear, Transformer, Motor)
  • Number of Cores – 3 Core
  • Conductors – 300sqmm, 400sqmm, 500sqmm
  • Cable Type – XLPE EPR (Polymeric)
  • Heat Shrink Standard Tail Length – 650mm
  • Termination Kit Order Code – SPS 3TIS-12X-D
  • Suit MV HV Power Cables – BS6622, BS7835, BS7870, BS6883, BS7917 & IEC60502

11kV 3 Core Cable

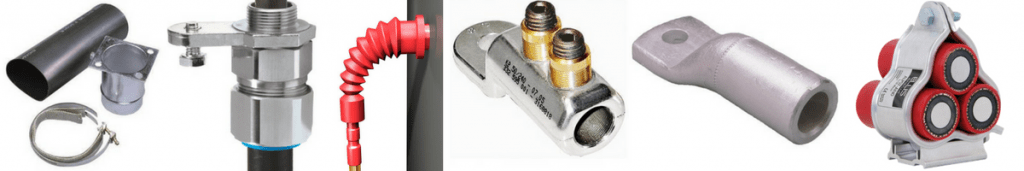

Call T&D to discuss your complete requirements for 11kV 3 core 300-500sqmm cable installations:

Electrical Safety Substation Earthing Cable Jointing Tools Cable Duct Duct Seals
Circuit Protection Cable Cleats Cable Pulling & Laying Cable Protection Cutting & Crimping Tools


11kV Cable Termination Heat Shrink

➡ High Voltage Cable Termination 11kV Kit List

11kV Cable Terminations | Single Core Indoor XLPE | Single Core Outdoor XLPE | 33kV Terminations

11kV

11kV Terminations indoor 3 Core XLPE epr

The following enables the termination kit selection for 11kV 3 core indoor cables:

 11kV Cable Termination Indoor  3 Core Cable Termination Range 11kV Cable Termination Outdoor
3TIS-12X-A 16-25sqmm XLPE EPR 3TES-12X-A
3TIS-12X-B 35-95sqmm XLPE EPR 3TES-12X-B
3TIS-12X-C 120-240sqmm XLPE EPR 3TES-12X-C
3TIS-12X-D 300-500sqmm XLPE EPR 3TES-12X-D



11kV Jointing Instruction

11kV Cable Termination Heat Shrink Kits 3 Core 16-25sqmm SPS 3TIS-12X-A



11kV High Voltage cable accessories

T&D supply MV-HV Joints, Terminations & Connectors to enable the installation of MV-HV 6.6kV 11kV 33kV cables into cable end boxes, gas/air insulated switchgear and oil transformers – this includes cold shrinkheat shrink and separable connectors from Nexans Euromold, Elastimold, 3M, Pfisterer and Prysmian.
