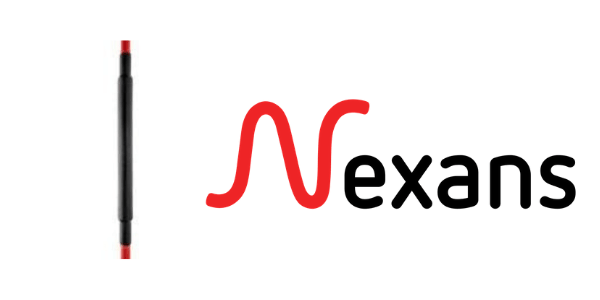

Nexans GTS1

33kV Heatshrink Cable Joints

Nexans GTS1 is a heat shrink cable joint suitable for jointing MV HV single core polymeric cable (XLPE) to be directly buried under or above ground.

These 33kV cable joints are suitable for use with copper tape screened as well as copper wire screened cables – no further earthing device is necessary. The heat shrinkable cable joint is fully screened and fully submersible and can be supplied with all common types of conductor connectors.

Nexans GTS1 Heat Shrink Joints

Nexans GTS heat shrink cable joints meet the requirements of CENELEC HD 629.2 and IEC 60502-4 standards.

GTS cable joints, manufactured by Nexans are suited to use with other cable types, contact T&D for more information.

➡ See also Nexans GTS3 for XLPE 3 core 11kV 24kV 33kV Cables

Cable Joint Voltage Classes

  • 6/10 (12) kV
  • 6.35/11 (12) kV
  • 8.7/15 (17.5) kV
  • 12/20 (24) kV
  • 12.7/22 (24) kV
  • 18/30 (36) kV
  • 19/33 (36) kV
  • 33kV Joints Cold Shrink

Heat SHRINK CABLE JOINTs

NEXANS GTS1

  1. Dual wall heat shrink tube type
  2. Stress control tube
  3. Stress control mastic
  4. Non-tracking tube (only for 36GTS1)
  5. Overall protection tube
  6. Sealing mastic
  7. Screen continuity (copper mesh)
  8. Conductor connector (supplied on request)
  9. Ferrule for screen wires.
Nexans Heat-Shrinkable Straight Joint Type Voltage Um Cable Joint Length “L” Conductor Sizes (mm²)
Min Max
17GTS1 12 & 17.5kV 600 – 750mm 25mm² 630mm²
24GTS1 24kV 600 – 750mm 25mm² 630mm²
36GTS1 36kV 750 – 1000mm 35mm² 800mm²

NEXANS GTS1 33kV CABLE JOINT

KIT CONTENTS

Nexans GTS 33kV cable joint kit contains:

  • 1 x Stress control mastic “MNAC”
  • 1 x Sealing mastic “NGAF”
  • 1 x Black stress control tube “GT1”
  • 1 x Anti-tracking tube “GT2” (only for 36GTS1)
  • 1 x Dual wall heat shrink tube “GT25”
  • 1 x Overall protection tube “GT4”
  • 1 x Roll of tinned copper mesh tape

The jointing kit also comprises cable jointing installation instructions, semi-conductive tape, adhesive tape, a copper braid and a ferrule for the screen wire connection.

Nexans GTS1 Kit Contents

Nexans GTS1 Kit Contents



Nexans GTS1 Cable Joints

Ordering Instructions

Nexans Cable Joint Part Reference Voltage U0/U (kV) Conductor Size Range (mm²)
Min Max
17GTS1.50w 6/10 & 6.35/11 & 8.7/15 25 50
17GTS1.95w 50 95
17GTS1.240w 95 240
17GTS1.630w 240 630
17GTS1.1000w 630 1000
24GTS1.50w 12/20 & 12.7/22 25 50
24GTS1.240w 35 240
24GTS1.400w 150 400
24GTS1.630w 300 630
24GTS1.1000w 630 1000
36GTS1.95i 18/30 & 19/33 35 95
36GTS1.240i 70 240
36GTS1.500i 185 500
36GTS1.800i 500 800
36GTS1.1200i 630 1200

Example: The copper wire screened cable is 12 kV, 150 mm² stranded aluminium. Order: 17GTS1.240w.

➡ See our complete range of HV Joints & Terminations including cold installed, cold shrink cable joints for MV-HV cables.
