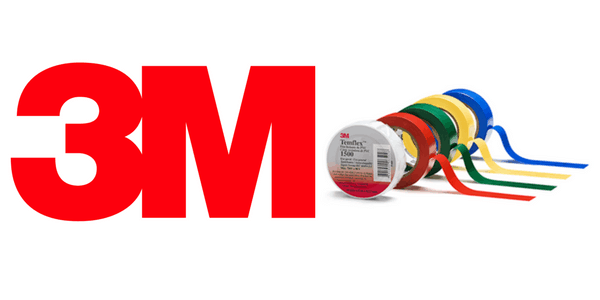

3M Temflex 1500 Tape – General Purpose Economy PVC Tape

3M Temflex 1500 Tape - General Purpose Economy PVC Tape

3M Temflex 1500 Tape – General Purpose Economy PVC Tape

Temflex 1500

3M Temflex 1500 Tape is a good quality and general purpose PVC insulating tape – Scotch insulation tapes have been developed for quality, efficiency, durability and versatility.

Temflex 1500 Tape is suitable for primary electrical insulation for all wire and cable joints and splices rated up to 600V.

3M Temflex 1500 is classified as IEC 60454-3-1-5/F-PVCP/90 and has VDE Marks License.

The general purpose economy PVC tape can also be used for applications such as protective jacketing for high voltage cables splice and cable repairs and for the harnessing of wires and cables.

The tape has excellent resistance to abrasion, moisture, alkalies, acids, corrosion and varying weather conditions (including UV exposure) and forms part of the 3M Scotch Electrical Tapes.

Availability: Contact Thorne & Derrick Sales for competitive prices and delivery from stock for 3M Temflex 1500 tape.

3M Scotch Tapes

Thorne & Derrick – 3M Electrical Stockists & Suppliers | Scotch Tapes | Scotchcast Resins | Cold Shrink Products | UK & Export Sales

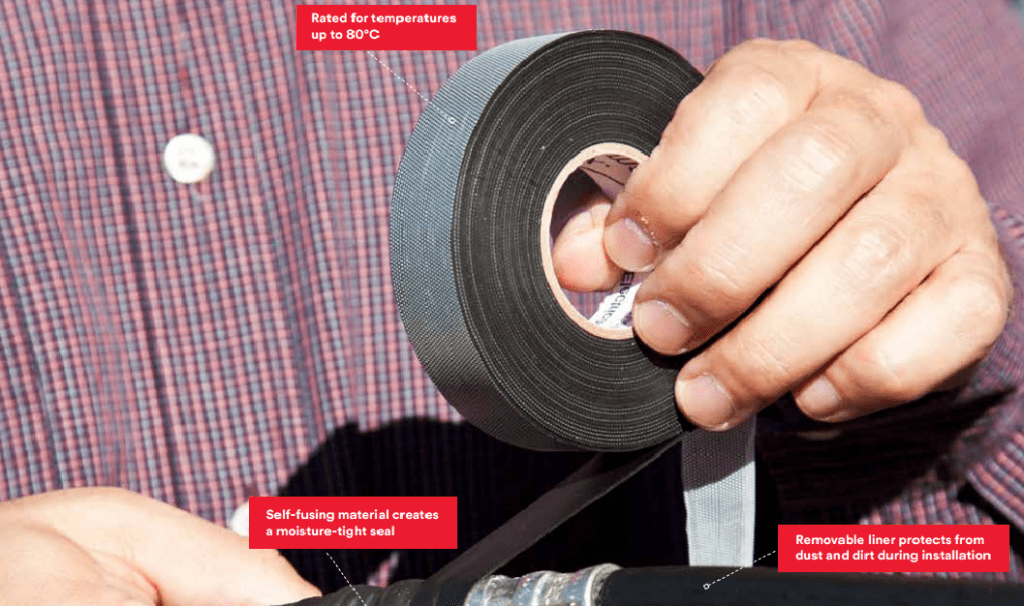

3M Temflex Rubber Splicing Tape - insulate cables and seal against moisture ingress into LV connections and cables

3M Temflex Rubber Splicing Tape – insulate cables and seal against moisture ingress into LV connections and cables

3M Temflex 1500 Tape

3M Temflex 1500 Tape

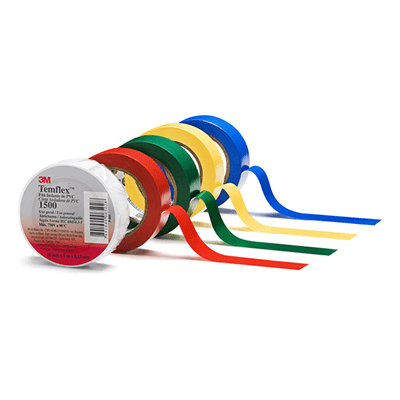

3M Temflex 1500 Tape – ex stock

General Purpose Economy PVC Tape Features

  • High dielectric strength, conformable and provides good mechanical protection with minimum bulk
  • Temflex 1500 Tape meets requirements of IEC 60454-3-1-5/F-PVCP/90 and has VDE Marks Licence
  • Polyvinyl chloride (PVC) backing
  • 3M Temflex 1500 Tape is available in 10 different colours
  • Insulation tape for indoor or outdoor applications

3M TEMFLEX 1500 Tape – Installation Techniques

  • Temflex 1500 Tape should be applied in half-lapped layers with sufficient tension to produce a uniform wind (for most applications this tension will reduce the tape’s width to approximately 5/8 of its original width)
  • Apply 3M Temflex 1500 tape with no tension on the last wrap to prevent flagging

Maintenance Of General Purpose Economy PVC Tape

Temflex 1500 Electrical Tape is stable under normal storage conditions.

Temflex 1500 General Purpose Economy PVC Tape is available in the following standard size:

  • 19mm x 25m

3M Scotch Tapes including Temflex 1500 are preferred by global electric utilities for their high performance, specification and reliability compared to unbranded poor quality electrical tapes prone to degradation, flagging and failure.

3M General Purpose Economy PVC Tape – Technical Specification

Colour Available in: Black, Blue, Brown, Yellow, Yellow/Green, Grey, Orange, Red, White, Purple and Green
Thickness 0.15mm
Temperature Range 0-90°C
Standards IEC 60454-3-1-5/F-PVCP/90 and has VDE Marks Licence Applications
Adhesive Pressure-sensitive rubber based adhesive
Backing (Material Type) Polyvinyl chloride (PVC) tape
Width x Length  19mm x 25m
Dielectric Strength 40 kV/mm
Breaking Strength 20 N/10mm
Elongation 170%
Adhesion to Steel 1.8 N/10mm
Adhesion to Backing 1.8 N/10mm
Flame Retardant Self extinguishing



3M Scotch Tape 3M Scotch Tape Part Number  Tape Thickness  Temperature Rating  Roll Size
3M Scotch Super 88 Tape 3M Scotch Super 88   0.216mm -18ºC to +105°C 19mm x 20m
25mm x 20m
38mm x 20m
3M Scotch 33 Tape - ex stock 3M Scotch 33 0.178mm 0ºC to 80ºC 9mm x 33m
12.7mm x 33m
19mm x 33m
25mm x 33m
38mm x 33m
50mm x 33m
3M Scotch 35 Tape 3M Scotch 35  0.178mm 0°C to 80ºC  19mm x 20m
3M Scotch 22 Tape 3M Scotch 22  0.254mm -10ºC to +80°C 12mm x 33m
19mm x 33m
25mm x 33m
38mm x 33m
50mm x 33m
3M Scotch 700 Tape 3M Scotch 780  0.18mm -10ºC to +80°C  19mm x 20m
3M Scotch 2510 Tape 3M Scotch 2510   0.18mm -18ºC to +105°C  19mm x 20m
3M Temflex 1500 Tape 3M Temflex 1500 0.15mm 0ºC to 90ºC 19mm x 25m

➡ T&D stock and supply the complete range of 3M Scotch Insulation Tapes.

3M Scotch Electrical tapes are used to cable joint, splice, repair, seal and protect cables against abrasion, fire and corrosion – this includes LV-HV (11kV-33kV cables) – please contact T&D should you require assistance with selecting the correct tape.

Trademarks: 3M, Scotch, Scotchfil and Super 33+ are all trademarks of 3M Company.
