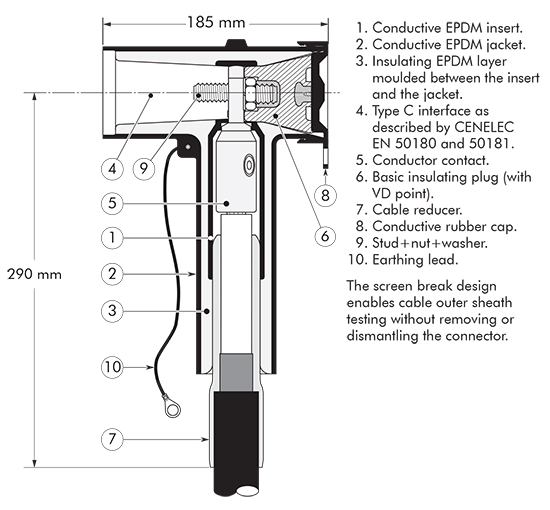

480TB Nexans Euromold – Interface C – Tee Connector

Separable tee connector (bolted type) designed to connect polymeric insulated cable to equipment (transformers, switchgear, motors, ). 480TB also connects cable to cable when using the appropriate mating parts.

For complete technical and specification on this Interface C product please see Nexans Euromold 480TB

Characteristics

• Connector shape – T-Shaped
• Connector type – Female
• Technology – N/A
• Conductor Material – Copper or Aluminium
• Conductor Cross Section Range – 35sqmm-300sqmm
• Maximum Partial Discharge At 2Uo – 42pc
• Dielectric Withstand Voltage 50Hz 1mn  93.5kV
• Rated Voltage Uo/U (Um) – 20.8 / 36 (42kV)
• Interface C – (630 – 1250A)
