630sqmm Single Core XLPE AWA Cable BS5467 600/1000V

Single Core BS5467 Cable

630 sqmm

Single core 630sqmm BS5467 XLPE Aluminium Wire Armoured (AWA) cables can be terminated indoors or outdoors using aluminium cable glands.

CW50AL cable glands are for use with single core 630sqmm stranded copper conductor cable, an LSF version is available to gland BS6724 Low Smoke Zero Halogen cables – we can provide a complete range of LSF/LSZH specification cable accessories for installation where smoke emission and toxic fumes could pose a risk to human health and essential equipment in the event of a fire.

See Prysmian cable glands for indoor, outdoor and hazardous area types suitable for LV (Low Voltage ), MV (Medium Voltage) and HV (High Voltage) termination of armoured, braided and unarmoured cables.

BS5467

British Standard BS5467 Single Core Cables

• Cable Voltage: 0.6/1kV
• Conductor: Copper Class 2, Aluminium Class 1
• Core Colours: Brown or Blue
• Insulation: XLPE Cross-linked Polyethylene
• Armour: Aluminium Wire Armour (AWA)
• Cable Sheath: PVC
• Conductor Cross Section Area: 630sqmm
• Approximate Diameter Under Armour (AWA): 38.2mm
• Cable Outside Diameter: 45.3mm
• Nominal Diameter Of Wire Armours (AWA): 2.0mm
• Approximate Cable Weight: 7450kg/km
• Single Phase AC In Air Horizontal Spaced: 1001 Amps
• Three Phase In Ground Trefoil Formation: 841 Amps
• Three Phase In Trefoil Duct : 664 Amps
• Three Phase In Air Trefoil Formation: 1084 Amps
• 630sqmm Cable Lugs using Cembre A Range Crimps

Low Voltage XLPE AWA BS5467 Cable Accessories

For short circuit restraint and support single core cables should be installed using trefoil cable cleats – the following tables enables the selection of the appropriate cable accessory for use with BS5467 single core XLPE cables with aluminium wire armour.

Cable glands, cleats, joints and crimp lugs are available to install all types of Low Voltage AWA & SWA Armoured Cables.

➡ The following table enables the selection and specification of cable lugs, cleats, joints and glands for use with BS5467 cables:

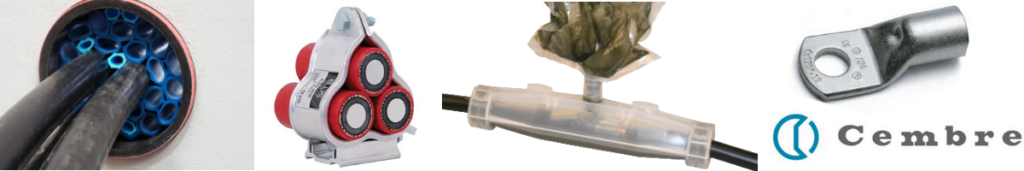

Duct Seals | Cable Cleats | Cable Joints | Cable Lugs

Data Sheets

• BS5467 Cable – XLPE Armoured (AWA) Low Voltage Power Cable
  Download
