800PB Nexans Euromold – Interface C – Coupling Connector

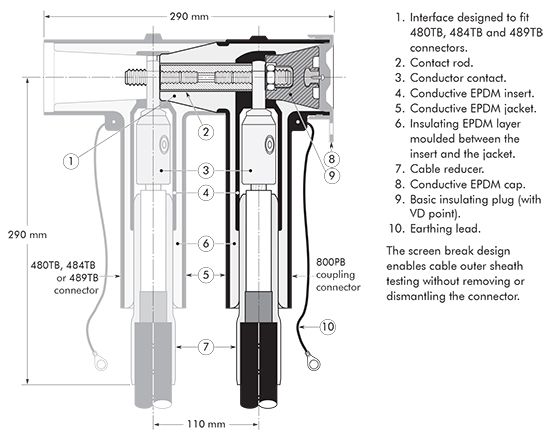

Separable coupling connector for dual cable arrangement. It has been designed to be used with 480TB, 484TB and 489TB separable tee connectors. Can also be installed on any 8-series coupling connector for a multiple cable arrangement.

For complete technical and specification on this Interface C product please see Nexans Euromold 800PB

Characteristics

• Connector shape – T-Shaped
• Connector type – Male
• Technology – N/A
• Conductor Material – Copper or Aluminium
• Conductor Cross Section Range – 35sqmm-300sqmm
• Maximum Partial Discharge At 2Uo – 42pc
• Dielectric Withstand Voltage 50Hz 1mn  93.5kV
• Interface C – (630 – 1250A)



152SR
