BAND-IT Multi-Lok Stainless Steel Cable Ties AE Range

View Sub Products

Band-It Multi Lok Stainless Steel Cable Ties AE Range

BAND-IT Multi Lok Stainless Steel Cable Ties AE Range

Multi-Lok Ties

Stainless Steel Ties – 316 Grade

The BAND-IT Multi-Lok range of stainless steel cable ties provide fast and reliable bundling of LV MV HV cables for maximum strength, reliability and clamping of cables – the corrosion resistant stainless steel ties with self-locking design are used to bundle, tie or fasten cables in both onshore and offshore locations including industrial, substation and hazardous area locations with potentially explosive atmospheres.

BAND-IT Multi-Lok cable ties are LSF LSZH (Low Smoke & Fume | Low Smoke Zero Halogen) and feature excellent corrosion resistance to aggressive chemicals, hydrocarbons, drilling fluids, electrical insulating oils and extreme operating temperatures (fire resistant/fire retardant).

BAND-IT AE stainless steel cable ties have a self-locking installation and are “ladder” style design – available with epoxy coating for excellent corrosion resistance.

AE range of Multi-Lok cable ties are manufactured by BAND-IT from type 316 grade stainless steel (marine grade for offshore cable management and location) – cable ties are available coated with Nylon 11 or uncoated.

These stainless steel cable ties are DNV Approved, CE Marked, Germanisher Lloyd Listed and Lloyds Register Listed – the cable ties can be used in conjunction with stainless steel cable tags.

BAND-IT AE cable ties are available in 2 widths: 7mm and 12mm for bundling LV MV HV cables with 33-180mm maximum overall diameters and often used in conjunction with cable cleats to provide intermediate cable support rather than primary short circuit fault protection.

Band-It Multi Lok Stainless Steel Cable Ties

Band-It Multi Lok Stainless Steel Cable Ties

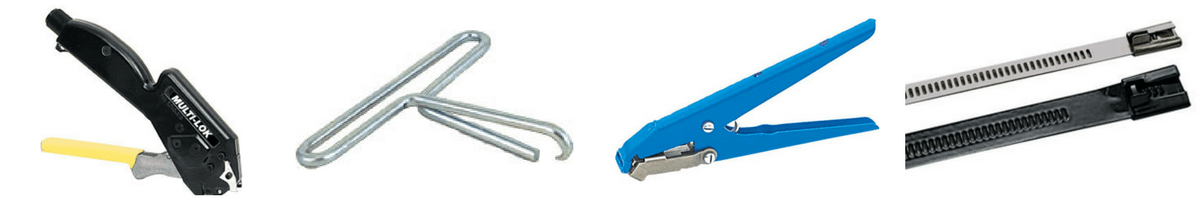

BAND-IT Multi-Lok Ties can be fitted using the following tools manufactured by BAND-IT M503 | KE922 | AE200 | AE201

Band-It AE Cable Ties – 316 stainless steel uncoated

BAND-IT AE Cable Ties – Uncoated
BAND-IT Order Code Cable Tie Material Width Length Thickness Coated Max Dia Single Wrap Min Loop Tensile Strength (lbs) Package Quantity Package Weight
in mm in mm in mm in mm lbs kg
AE601 316 SS 0.276 7 6.0 150 0.011 0.28 1.3 33 250 100 / Bag 0.7 0.3
AE602 316 SS 0.276 7 9.0 225 0.011 0.28 2.2 57 250 100 / Bag 0.9 0.5
AE603 316 SS 0.276 7 12.0 300 0.011 0.28 3.2 81 250 100 / Bag 1.3 0.5
AE604 316 SS 0.276 7 18.0 450 0.011 0.28 5.1 129 250 100 / Bag 1.8 0.8
AE605 316 SS 0.276 7 24.0 610 0.011 0.28 7.1 180 250 100 / Bag 2.6 1.2
AE701 316 SS 0.472 12 6.0 150 0.011 0.28 1.3 33 415 100 / Bag 1.1 0.5
AE702 316 SS 0.472 12 9.0 225 0.011 0.28 2.2 57 415 100 / Bag 1.7 0.8
AE703 316 SS 0.472 12 12.0 300 0.011 0.28 3.2 81 415 100 / Bag 2.2 1.0
AE704 316 SS 0.472 12 18.0 450 0.011 0.28 5.1 129 415 100 / Bag 3.0 1.4
AE705 316 SS 0.472 12 24.0 610 0.011 0.28 7.1 180 415 100 / Bag 4.3 2.0

Band-It AE Cable Ties – 316 stainless steel NYLON coated

Band-It AE Cable Ties – Nylon Coated
BAND-IT Order Code Cable Tie Material Width Length Thickness Coated Max Dia Single Wrap Min Loop Tensile Strength (lbs) Package Quantity Package Weight
in mm in mm in mm in mm lbs kg
AE611 316 SS 0.276 7 6.0 150 0.018 0.46 1.3 33 250 100/Bag 0.7 0.3
AE612 316 SS 0.276 7 9.0 225 0.018 0.46 2.2 57 250 100/Bag 0.9 0.5
AE613 316 SS 0.276 7 12.0 300 0.018 0.46 3.2 81 250 100/Bag 1.3 0.6
AE614 316 SS 0.276 7 18.0 450 0.018 0.46 5.1 129 250 100/Bag 1.8 0.8
AE615 316 SS 0.276 7 24.0 610 0.018 0.46 7.1 180 250 100/Bag 2.6 1.2
AE711 316 SS 0.472 12 6.0 150 0.018 0.46 1.3 33 415 100/Bag 1.1 0.5
AE712 316 SS 0.472 12 9.0 225 0.018 0.46 2.2 57 415 100/Bag 1.7 0.8
AE713 316 SS 0.472 12 12.0 300 0.018 0.46 3.2 81 415 100/Bag 2.2 1.0
AE714 316 SS 0.472 12 18.0 450 0.018 0.46 5.1 129 415 100/Bag 3.0 1.4
AE715 316 SS 0.472 12 24.0 610 0.018 0.46 7.1 180 415 100/Bag 4.3 2.0
Band-It Multi Lok Stainless Steel Cable Ties In Use

BAND-IT Multi Lok Stainless Steel Cable Ties In Use

See cable ties for further information about securing LV MV HV cables (power, control and instrumentation).

Band-It Cable Ties - High Voltage Offshore Cable Ties

Cable Ties – stainless steel cable ties are specified throughout the onshore and offshore oil, gas and petrochemical industries for supporting LV, 3.3kV. 6.6kV, MV 11kV and HV 33kV cables where high strength cable location is required.

Stainless Steel Cable Ties Bands

Tie Lok | Ultra-Lok | Ball-Lok | Multi-Lok | Reusable | Band & Buckles | Stainless Steel

Contact T&D to discuss the retention, clamping and location of LV, MV and HV cables – we distribute cable cleats, cable hangers and cable ties to satisfy the short-circuit and performance requirements in stainless steel, aluminium, nylon and plastics. For further information about cable ties for securing LV-HV cables (power, control and instrumentation), visit BAND-IT.
