Battery Powered Cable Crimping Tool 10-240sqmm – Klauke EK60VP

Battery Powered Cable Crimping Tool 10-240sqmm – Klauke EK60VP

Battery Powered Cable Crimping Tool 10-240sqmm – Klauke EK60VP

Crimping Tools

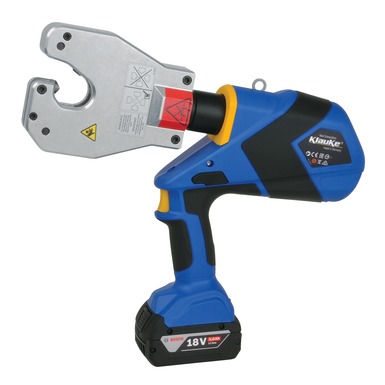

The Klauke EK60VP is a battery powered cable crimping tool that has a crimping range for cable lugs and connectors up to 240sqmm – the patented centring system guarantees every time optimum crimping results.

The Klauke EK60VP crimping tools uses iPress App which allows all tool data to be viewed at a glance and has fast crimping cycles thanks to automatic retraction stop (ARS).

Klauke crimping tools are available with Bosch or Makita battery system.

Battery powered hydraulic crimping tool with a crimping range between 10-240sqmm.

➡ See also: Battery Operated Cable Cutting Tools

Klauke EK60VP

Cable Crimping Tool

  • Option for battery system: Bosch or Makita
  • Easy readout of all data via Bluetooth
  • Quad-point indent crimping feature with patented centring system, no dies required
  • Open head, rotatable battery powered cable crimping tool
  • Klauke EK60VP is simple and safe: one-button operating concept for controlling all tooling functions
  • Quality assurance by visual and audible signals in case of failure
  • Effortless operations because of balanced centre of gravity
  • Crimping tool features a LED for workplace illumination
  • Simple and safe: Automatic retraction of crimping tool head when operation is complete
  • Tool always ready for use thanks to the battery charge status and service display
Battery Powered Cable Crimping Tool 10-240sqmm - Klauke EK60VP

Battery Powered Cable Crimping Tool 10-240sqmm – Klauke EK60VP

Technical Specification

The following table outlines the performance specification of the Klauke EK60VP2 crimping tool:

Cable Crimping force 55 kN
Crimping tool range 10-240sqmm
Crimping tool cycle 3 s to 6 s (depending on cross-section)
Battery voltage 18 V
Battery capacity 5.0 Ah, Li-Ion
Charging time 45 min
Weight incl. battery 5.0 kg
Ambient temperature -10°C to +40°C

Battery Powered Cable Crimping Tool – Dies

The following tables show the correct die sets to use for installing cable lugs, connectors, joints and end sleeves using Klauke EK60VP2 crimping tool:

Suitable for Crimping range sqmm Crimp profile
Copper tubular cable lugs and connectors
Tubular cable lugs , standard type, tubular cable lugs for switchgear connections 10-240 Standard tubular cable lugs, tubular cable lugs for switchgear connections
Connectors, standard type 10-120 Connector standard version
Tubular cable lugs for fine stranded conductors 10-240 Tubular cable lugs standard type for fine stranded conductors to 240 sqmm
Connectors for fine stranded conductors 10-95 Connector for fine stranded conductors to 95 sqmm



Cable Tools

Should you require technical assistance to select the correct cable crimping or cable cutting tools please contact us.

Thorne & Derrick are Specialist Distributors of cable tools to enable the preparation of all LV MV HV cables prior to the installation of Joints, Terminations & Connectors – this includes Klauke, Cembre, Alroc and Boddingtons cable jointing tools for removal of cable sheath, screen and insulation on 11/33kV (MV) and 66kV/132kV (HV) power cables.
