Battery Powered Cable Crimping Tool 16-300sqmm – Klauke EK60VP/FT-L

Battery Powered Cable Crimping Tool 16-300sqmm - Klauke EK60VP/FT-L

Battery Powered Cable Crimping Tool 16-300sqmm – Klauke EK60VP/FT-L

Crimping Tools

The Klauke EK60VP/FT-L is a battery powered cable crimping tool that has a large crimping range for cable lugs and connectors up to 300sqmm – Suitable for crimping tubular cable lugs and connectors

The Klauke EK60VP/FT-L has a closed crimping head suited for utility lines construction and has an automatic retract stop (ARS) for fast crimping cycles of cables.

Battery powered hydraulic crimping tool with a crimping range between 6-300sqmm.

➡ See also: Battery Operated Cable Cutting Tools

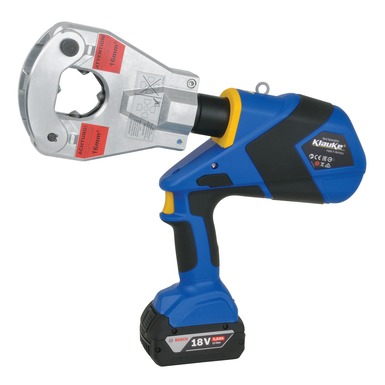

Klauke EK60VP/FT-L

Cable Crimping Tool

  • Quad-point indent crimping feature with patented centring system, no dies required
  • Closed head with bolt interlock, flip top style battery powered cable crimping tool
  • Klauke EK60VP/FT-L is simple and safe: one-button operating concept for controlling all tooling functions
  • Electronic control and monitoring of operation
  • Integrated pressure measurement with visual and audible signals in case of failure
  • Evaluation function using optical interface and USB-Adapter
  • Simple and safe: one-button operating concept for controlling all tooling functions
  • Ergonomic 2-component housing in Klauke “In-line design”
  • Balanced centre of gravity for easy handling and effortless operations
  • Crimping tool features a LED for workplace illumination
  • High-performance 18 V Li-Ion battery – high capacity, short charging time
  • High-performance motor for maximum operating speed
  • 2-stage hydraulic system with fast feed and power stroke
  • Energy saving function by stopping motor after successful operation
  • Quick motor stop for high user safety
  • Simple and safe: Automatic retraction of crimping tool head when operation is complete
  • Manual retraction in case of need
  • Automatic retraction stop (ARS) for positioning control in case of multiple crimping of cables
  • Multifunction LED for maintenance display and data transfer via USB adapter
  • Tool uses environmentally-friendly hydraulic oil, quickly biodegradable
Battery Powered Cable Crimping Tool 16-300sqmm - Klauke EK60VP/FT-L

Battery Powered Cable Crimping Tool 16-300sqmm – Klauke EK60VP/FT-L

Technical Specification

The following table outlines the performance specification of the Klauke EK60VP/FT-L crimping tool:

Crimping force 55 kN
Crimping range 16-300sqmm
Crimping cycle 3 s to 6 s (depending on cross-section)
Battery voltage 18 V
Battery capacity 5.0 Ah, Li-Ion
Charging time 45 min
Weight incl. battery 5.1 kg
Ambient temperature -10°C to +40°C

Battery Powered Cable Crimping Tool – Dies

The following tables show the correct die sets to use for installing cable lugs, connectors, joints and end sleeves using Klauke EK60VP/FT-L crimping tool:

Suitable for Crimping range sqmm Crimp profile
Tubular cable lugs and connectors – Cu
Tubular cable lugs and connectors, standard type, tubular cable lugs for switchgear connections 16 – 300 Tubular cable lugs standard type and switchgear to 300sqmm
Tubular cable lugs and connectors for fine stranded conductors 16 – 300 Tubular cable lugs and connectors for fine stranded conductors to 300sqmm
CABLE TOOLS

Should you require technical assistance to select the correct cable crimping or cable cutting tools please contact us.

Thorne & Derrick are Specialist Distributors of cable tools to enable the preparation of all LV MV HV cables prior to the installation of Joints, Terminations & Connectors – this includes Klauke, Cembre, Alroc and Boddingtons cable jointing tools for removal of cable sheath, screen and insulation on 11/33kV (MV) and 66kV/132kV (HV) power cables.
