Battery Powered Cable Cutting Tool 105mm Dia – Klauke ESG105RMCCFM

Klauke ESG105RMCCFM HYDRAULIC BATTERY POWERED CUTTING Tool | 18V

£POA

Request a Quote

Call Us: +44 (0)191 410 4292

The Klauke ESG105RMCCFM is a battery powered hydraulic cable cutting tool designed for safe cutting of copper and aluminium cables up to 50mm diameter.

KLAUKE ESM 50 ISM VDE HYDRAULIC CUTTING TOOL

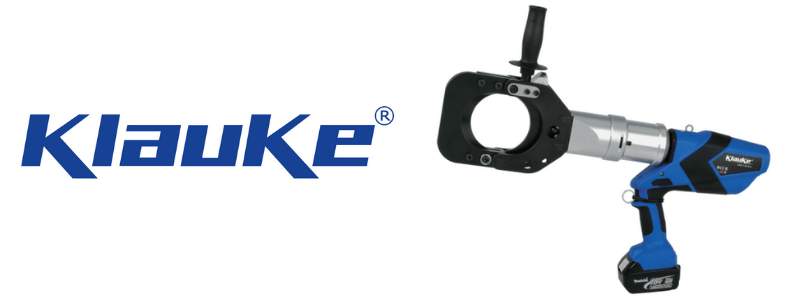

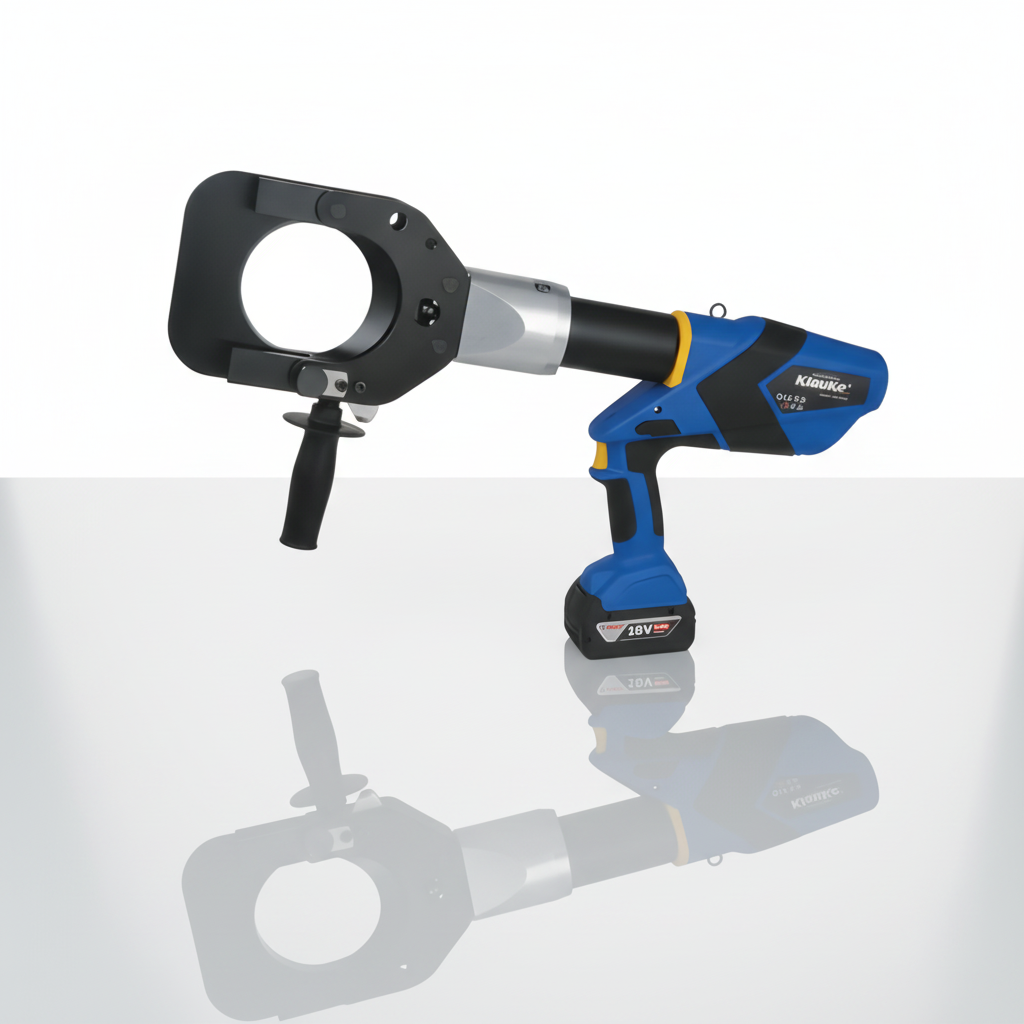

The ESG105RMCCFM manufactured by Klauke is a battery powered hydraulic cable cutting tool with a remote control feature to allow the user to maintain a safe distance whilst cutting cable – see also remote cable cutting tools.

Klauke ESG105RMCCFM offers worldwide unique real end position detection and is suitable for cutting copper and aluminium cables according to DIN EN 60228 Class 1 and 2 including cable with light weight steel armouring.

This cable cutting tool can also be used as a normal cable cutter when the Hotstick-holder is not attached.

Contact our experts to order or learn more about the Klauke ESG105RCCFM and our full range of Klauke cable cutting tools, batteries and accessories.
We provide technical advice, quotations and fast delivery for both UK and export projects.

Contact Our Experts” allowfullscreen=”allowfullscreen”>

BATTERY POWERED CUTTING TOOL – SPECIFICATIONS (MAKITA BATTERY SYSTEM – ESG105RCCFM)

ESG105RCCFM Electrical Features
Head type	Guillotine closed
Cutting range max.	ESG105RMCCFM/CFB – dia. max. 105 mm
Cutting force	120 kN
Cutting Time	2 s to 13 s (depending on material thickness)
Battery Voltage	18V
Battery Capacity	4.0 Ah, Li-Ion
Battery Charging Time	36 Mins
Weight Including Battery	10.5 Kg
Ambient Temperature	-10 °C to +40 °C

HYDRAULIC CABLE CUTTING TOOL – FEATURES

Remote control receives acoustic and visual notification of completed cut
Very high range up to 70 m
Convenient one-hand-operation via remote control
Closed head, rotatable
Quick motor stop for high user safety
Retract stop for efficient operations
Energy-saving: motor stops after cut
All data can be easily read via Bluetooth
Also available for 65mm dia. – See Klauke ESG65RMCCFM

CABLE CUTTING TOOL – SUITABILITY

The hydraulic cable cutting tool offers powerful, controlled cutting performance and is suitable for professional electrical installation, utility and industrial maintenance applications.

Should you require technical assistance to select the correct cable crimping or cable cutting tools please contact us.Thorne & Derrick are Specialist Distributors of cable tools to enable the preparation of all LV MV HV cables prior to the installation of Joints, Terminations & Connectors – this includes Klauke, Cembre, Alroc and Boddingtons cable jointing tools for removal of cable sheath, screen and insulation on 11/33kV (MV) and 66kV/132kV (HV) power cables.
