Cable Drum Trailers Up To 3800mm Diameter Drums – SEB CD140

Cable Drum Trailers Up To 3800mm Diameter Drums - SEB CD140

Cable Drum Trailers Up To 3800mm Diameter Drums – SEB CD140

Cable Drum Trailers

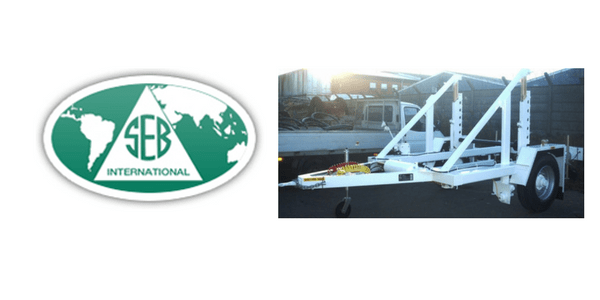

SEB CD140 is a cable drum trailer suitable for Highway use with the ability to handle up to 3800mm diameter drums – cable drum trailers ensure safe loading, transportation and unreeling of LV, MV, HV or EHV cable from drums with a payload up to 5085Kgs.

Cable Drum Trailer

Technical Specification

SEB CD140

SEB Part Number Payload (Approx) Gross Vehicle Weight Max Cable Drum Width Cable Drum Dia max/min Spindle Dia Tow Eye/Coupling Height Unladen Trailer Width Towing Speed Tyres Cable Trailer Brake System
CD140 5085kg 6650kg 1600mm 3800/2000mm 89mm 76/730 2550mm 100Kmh 11.00×22.5 2 Line Air/Mech. c/w ABS
Cable Drum Trailers Up To 3800mm Diameter Drums - SEB CD140

SEB CD140 Cable Drum Trailer
