Cable Drum Trailers

Trailers Manufactured to European Whole Vehicle Type Approval Specification | LV MV HV EHV Drum Trailers

Cable drum trailers that are part of the EWVTA Highways Range are equipped with braking and road lighting systems conforming to ECC Directives – the cable drum trailers are designed specifically to comply with road speeds indicated on the UK Highway and most other European Countries. Different options can be offered to meet the requirements of individual countries.

For safe and easy drum handling, all cable drum trailers are fitted with hydraulic hand pump operated lift/lower systems as standard. When the drum is fully raised mechanical locks ensure drum security in transit (further information available on request).

The cable drum trailers featured from the EWVTA Highways Range are available from the standard product range – if there is not a trailer listed to accommodate your cable drum size and weight please do not hesitate to contact us customised engineered solutions to support your cable pulling installations up to 400kV.

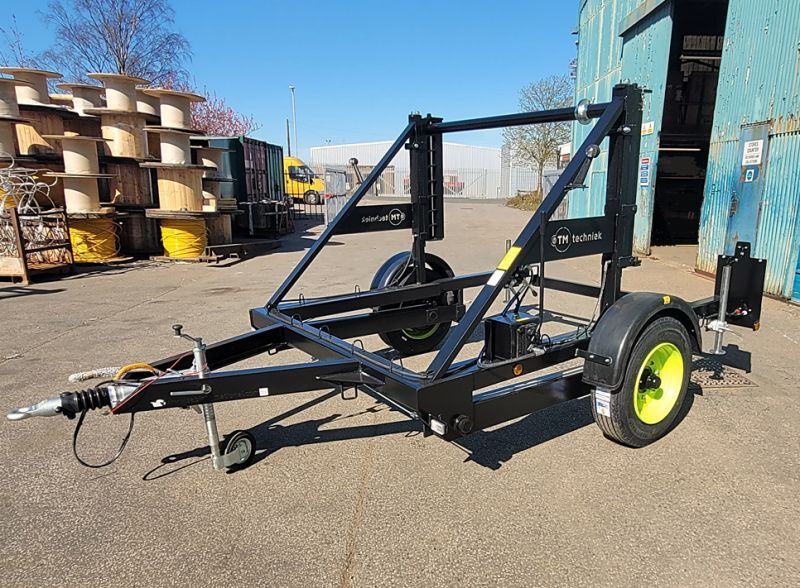

Pictured: PT70 Cable Drum Trailer complete with laser cut sign to support utility cable installations for LV MV HV projects in the Netherlands.

Cable Drum Trailers

EWVTA Highways Range

Technical Specification

SEB Part Number	Cable Drum Trailer	Payload (Approx)	Gross Vehicle Weight	Max Drum Width	Drum Dia max/min	Spindle Dia	Tow Eye/Coupling Height Unladen	Trailer Width	Towing Speed	Tyres	Brake System
CD20		830kg	1110kg	1075mm	1070/570	50mm	50/690	1925mm	100Kmh	155/80R-13	Overrun Auto reverse
CD32		1200kg	1600kg	1375mm	2100/700	50mm	50/600	2310mm	100Kmh	175×14	Overrun Auto reverse
CD40		1500kg	2000kg	1250mm	2200/750	50mm	50/600	2200mm	100Kmh	195×14	Overrun Auto reverse
CD60		2430kg	3150kg	1280mm	2500/1060	76mm	50/600	2285mm	100Kmh	215/75R17.5	Overrun Auto reverse
CD70		2770kg	3500kg	1280mm	2500/1060	76mm	50/600	2285mm	100Kmh	215/75R17.5	Overrun Auto reverse
PT60		2300kg	3100kg	1710mm	3200/1420	76mm	50/705	2520mm	100Kmh	215/75R17.5	Overrun Auto reverse
PT70		2720kg	3500kg	1600mm	3200/1420	76mm	50/705	2545mm	100Kmh	215/75R17.5	Overrun Auto reverse
CD130		5350kg	6650kg	1470mm	2860/1360	76mm	76/730	2550mm	100Kmh	11.00×22.5	2 Line Air / Mech. C/W ABS
CD140		5085kg	6650kg	1600mm	3800/2000	89mm	76/730	2550mm	100Kmh	11.00×22.5	2 Line Air / Mech. C/W ABS
