Polymer Cable Trough
TTS 300 Series
Network Rail PADS Approved – Certificate Of Acceptance PA05/05145

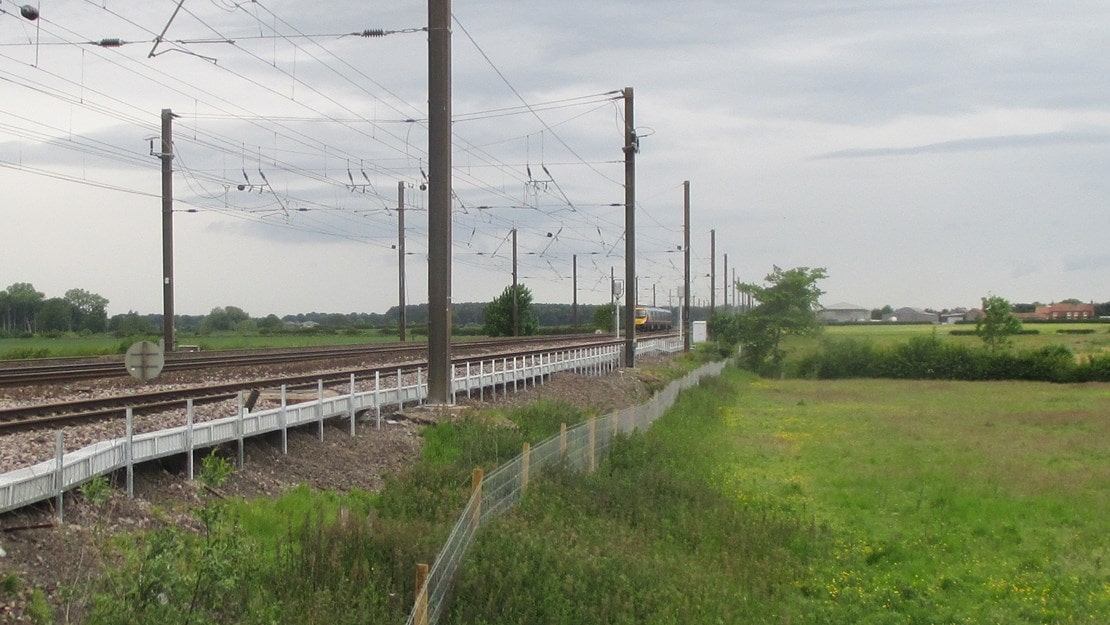

TTS 300 Series of polymer cable trough is suitable for LV MV HV rail cable protection in applications such as ground installations, wall mounted or elevated on posts. The TTS 300 Series includes straight trough, 45-degree angle trough, T-junction trough and gradient trough pieces.
Green Trough from TTS, including base and lids, are manufactured from recycled synthetic resin to provide versatile cable ducting systems for power, signal and communications cables.
The closest concrete trough equivalent size to the TTS 300 Series is C/1/29. However polymer cable trough is 82% lighter with a 20% more capacity than the equivalent concrete trough. Where cable capacity is not the prime concern, but weight saving is, the TTS 300 Series provides the perfect solution for conformance with Manual Handling & Operations Regulations of troughs and lids.
TTS 300 Series Specification
Straight Trough
Polymer Trough TTS Straight Trough
TTS Straight Trough Multiple-hole type
| Polymer Trough Size | Part Number | Straight Trough Dimensions | ||||
| A | B | C | D | L | ||
| TTS 300 – Straight | GT-L300B-S00-G | 300mm | 390mm | 175mm | 265mm | 1045mm |
| TTS 300 – Straight (Multiple-hole type) |
GT-L300B-SF0-G | 300mm | 390mm | 175mm | 265mm | 1045mm |
Curved Trough – 45-degree Angle
| Polymer Trough Size | Part Number | Curved Trough Dimensions | |||
| W | H | a | R | ||
| TTS 300 – 45-degree Angle | GT-C300B-S00-G | 390mm | 265mm | 45º | 350 |
T-Junction Trough
| Polymer Trough Size | Part Number | T-Junction Trough Dimensions | ||||
| L | D | W | H | R | ||
| TTS 300 – T-Junction | GT-T300B-S00-G | 600mm | 495mm | 390mm | 265mm | 105mm |
Gradient Trough
| Product Description | Polymer Trough Size | Part Number | Dimensions | |||
| W | H | L1 | L2 | |||
| Gradient Trough (Up) | TTS 300 | GT-U300B-S00-G | 390mm | 265mm | 200mm | 250mm |
| Gradient Trough (Down) | GT-D300B-S00-G | 390mm | 265mm | 150mm | 200mm | |
| Product Description | Polymer Trough Size | Part Number | Gradient Trough Dimensions | |||
| W | H | L1 | L2 | |||
| Gradient Trough (Up) (Multiple-hole type) |
TTS 300 | GT-U300B-SF0-G | 390mm | 265mm | – | – |
| Gradient Trough (Down) (Multiple-hole type) |
GT-D300B-SF0-G | 390mm | 265mm | – | – | |
Straights | Bends | Junctions | Gradients | Walkways | Elevated | Cable Trough Systems
TTS Polymer Cable Trough
Network Rail Cable Troughs
Trough Tec Systems
The ground level or elevated polymer cable trough management system comprising troughs and lids conforms to Network Rail NR/L2/TEL/00013 for protection and management of trackside cables including LV Low Voltage and HV High Voltage signal, telecoms and power cables up to 25kV – the scope of NR Network Rail acceptance for cable protection and management applies to trackside but excludes connecting subsurface stations or tunnels.
Complete range of straight troughs and lids, gradient troughs and lids, tee pieces, junctions, joints and rail cable management accessories.
TTS 90 Series | TTS 135 Series | TTS 150 Series | TTS 200 Series | TTS 300 Series | TTS 430 Series
Cable Trough C/1/29 – TTS 300 SeriesDownload
