Cable Trough C/1/6 – TTS 90 Series
Network Rail PADS Approved C/1/6
Certificate Of Acceptance PA05/05145

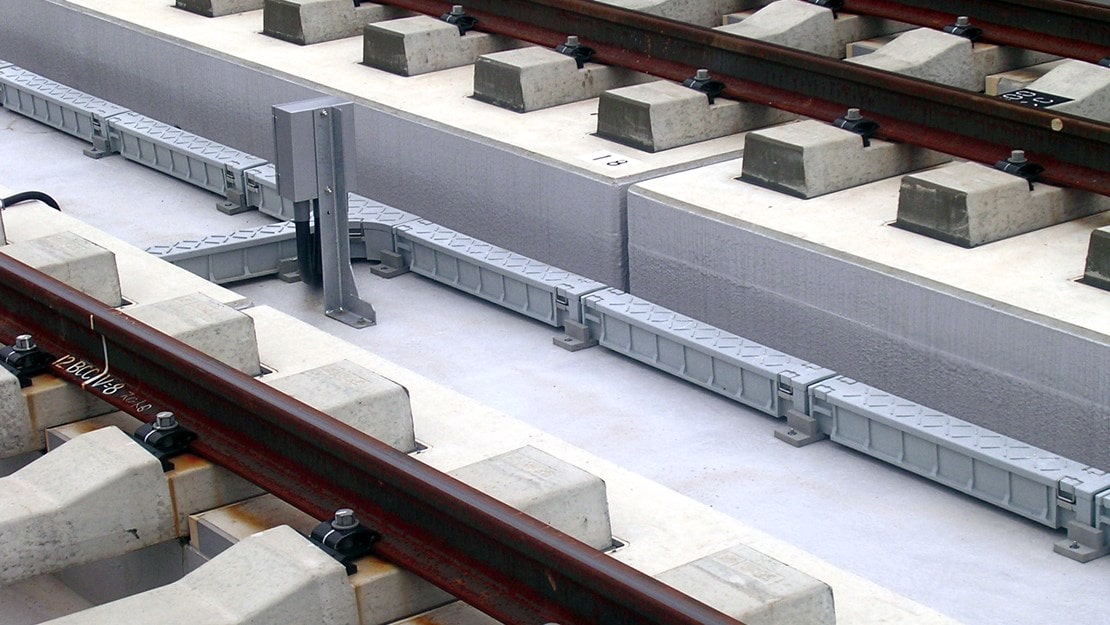

TTS 90 Series of polymer cable troughing is suitable for LV MV HV Rail Cable Protection in ground installations in ballast, on concrete plinths, wall mounted or elevated onto posts – the straight cable troughs including base and lids are manufactured from recycled synthetic resin to provide vertsatile cable ducting systems for power, signal and comms cables.
The closest concrete trough equivalent size is C/1/6 – polymer cable troughing is 82% lighter (40kg versus 7kg) with a 20% more capacity of 7500sqmm versus 9000sqmm. Where cable capacity is not the prime concern, but weight saving is, the TTS 90 Series provides the perfect solution for safer conformance with Manual Handling & Operations Regulations of troughs and lids.
TTS 90 Series polymer cable troughing units for rail cable protection and management include:
- Straight Troughs
Cable Trough C/1/6
The following comparison demonstrates the physical and performance differences between C/1/6 type polymer and concrete cable trough:
Cable Trough C/1/6
|TSS 90 Series|
|Weight (Kg)||40 (total)||7 (total)|
|24 (base)||4 (base)|
|16 (lid)||3 (lid)|
|Dimensions||1000 mm (length)||1000 mm (length)|
|Internal||100 mm (width)||90 mm (width)|
|75mm (depth/height)||100 mm (depth/height)|
|External||190 mm (width)||120 mm (width|
|170 mm (depth/height)||136 mm (depth/height)|
Network Rail Cable Troughs
Trough Tec Systems
The ground level or elevated polymer cable trough management system comprising troughs and lids conforms to Network Rail NR/L2/TEL/00013 for protection and management of trackside cables including LV Low Voltage and HV High Voltage signal, telecoms and power cables up to 25kV – the scope of NR Network Rail acceptance for cable protection and management applies to trackside but excludes connecting subsurface stations or tunnels. Complete range of straight troughs and lids, gradient troughs and lids, tee pieces, junctions, joints and rail cable management accessories.
