Discharge Sticks

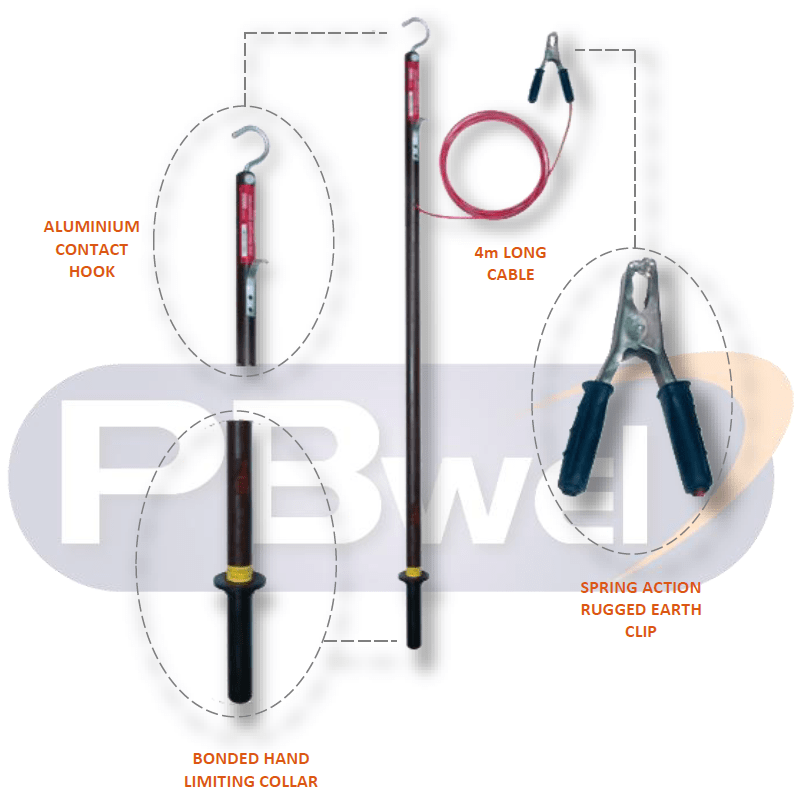

Westminster Capacitor Discharge Sticks & Rods are used for the removal of electrostatic charge from disconnected circuits, before undertaking maintenance work on MV HV Power Systems (Medium & High Voltage). The discharge sticks are manufactured from 1.2 metre-long lightweight insulating tubing and fitted with dischargeable hook. The connection to earth is facilitated by a 4-metre long earth cable with earthing (Crocodile) clip. Models are available with a discharge limiting resister for use upon MV HV capacitors, 11kV (15kV) to 33kV (35kV).


Discharge Sticks | Medium & High Voltage Power Systems | MV HV

BENEFITs

  • Robust Construction
  • Lightweight Tubing
  • Sticks Available with Discharge Limiting Resistor
  • Bonded Handguard Included
  • Insulation Tested Discharge Sticks
  • Contact Hook Type Fitment
  • More HV Discharge Rods

Capacitor Discharge Rods

Ordering Information

Should you require assistance with the selection of specification of the correct Discharge Sticks & Rods please contact us for customised solutions up to 33kV:

  • WDL ER15 Capacitor Discharge Rods – Westminster Detectors ER15 Earth Discharge Rod 5kV – EFC-17300
  • WDL ER35 Capacitor Discharge Rods – Westminster Detectors ER35 Earth Discharge Rod 35kV – EFC-17301
  • WDL ERR15 Capacitor Discharge Rods – Westminster Detectors ERR15 Earth Discharge Rod 15kV with Limiting Resistor – EFC-17302
  • WDL ERR35 Capacitor Discharge Rods – Westminster Detectors ERR35 Earth Discharge Rod 35kV with Limiting Resistor – EFC-17303
Discharge Sticks & Rods

PBWel WDL Westminster Capacitor Discharge Rods

CATU CM50

Static Discharge Sticks | CM50 CATU Electrical Safety Equipment


Operating Poles

An extensive range of Operating Poles manufactured from lightweight resin-impregnated fibreglass provide highest levels of electrical safety and insulation across standard voltages: 11kV, 33kV 66kV. The operating poles can be inter-connected to achieve extended lengths for both Medium Voltage & High Voltage (MV-HV) overhead line and substation applications. The poles are compliant to ENA Technical Specification TS 41-21 which combines substation and overhead line portable earthing requirements (previously covered by ENA TS 43-81).

Operating Poles Sticks Rods | MV HV 11kV 33kV 66kV

Operating Poles Sticks Rods | MV HV 11kV 33kV 66kV
