Cembre TN Mechanical Crimping Tools
LV-HV Cable Crimping Tools
Mechanical Crimping Tools By Cembre
The Cembre TN mechanical crimping tools are professional crimping tools designed for use with both insulated and uninsulated terminals and connectors (depending on part number).
Constructed from high quality hardened steel with plastic grips, Cembre’s TN mechanical crimping tools are reliable with a guaranteed consistent, crimping operation.
The Cembre TN range of crimping tools, with versatile die, enable the crimping of stranded copper conductors without resorting to the electrical contractor carrying multiple die sets. The die head is manually adjustable to suit the cable lug or splice size and crimping is complete with a single stroke manual action.
Crimping styles include indent and hexagonal crimping imprints. The die positioning of the tool is easily adjustable by knurled screw and Vernier scale, and the tools are considered sturdy and easy to handle.
CEMBRE TN MECHANICAL CRIMPING TOOLS – TECHNICAL SPECIFICATION
| Cembre Mechanical Crimping Tool Part Number | Crimping Range (conductor size) |
| TN70SE | 6 – 70mm² |
| TNN70 | 10 – 70mm² |
| TN120SE | 10 – 120/150mm² |
| TNN120 | 10 – 120mm² |
| TND6-70 | 6 – 70mm² |
| TND10-120 | 10 – 120mm² |

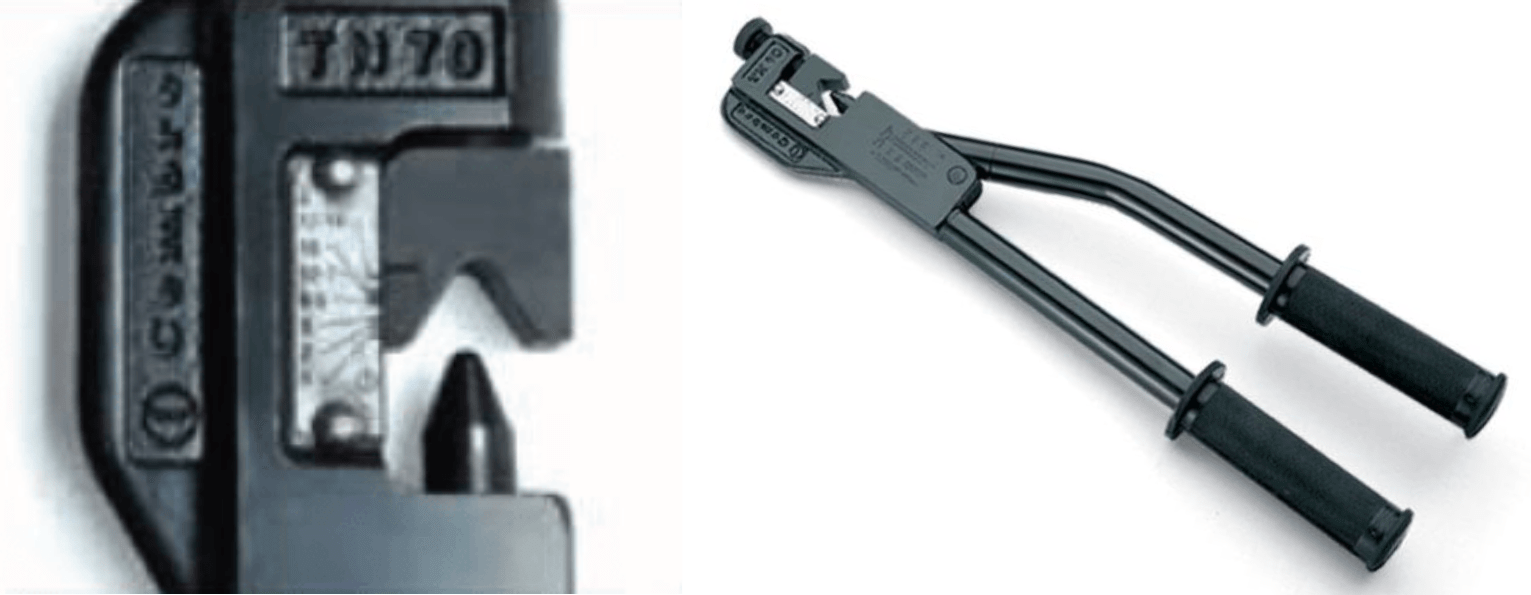

TN70SE / TNN70
Cembre TN70Â Mechanical Crimping Tools are professional crimping tools, constructed from high quality hardened steel with plastic grips for ease of operation and heat treated steel crimp jaws.
- Manually adjustable die head
- Indent crimping style

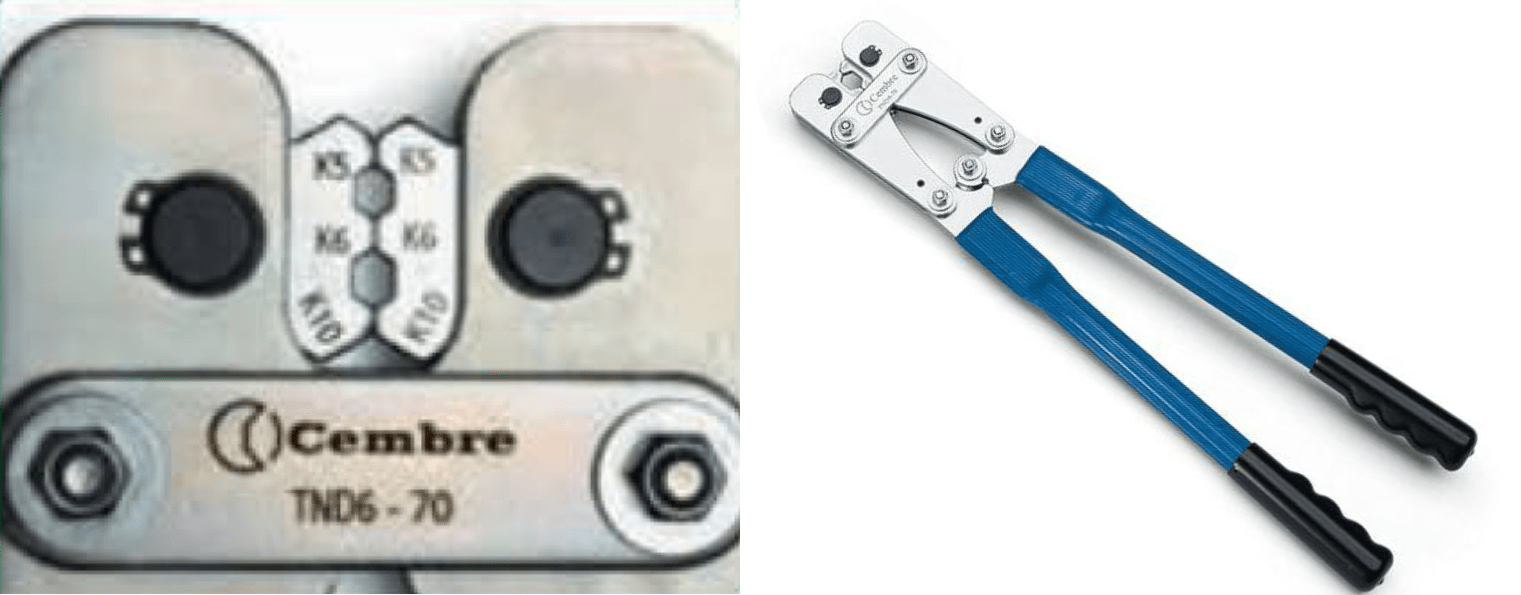

TND6-70 / TND10-120
The TND range of Cembre Crimping Tools are designed for use with uninsulated terminals and connectors according to standards DIN 46235 and DIN 46267 T.1.
- Rotating dies
- Hexagonal crimping style

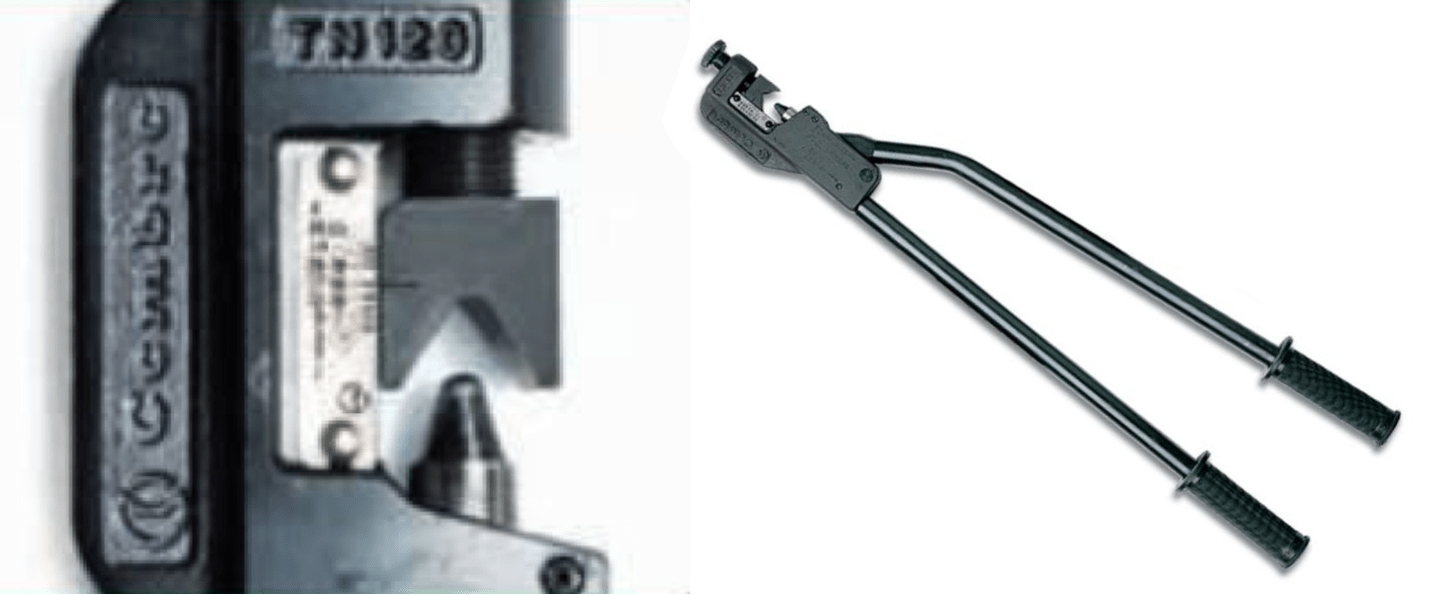

TN120SE / TNN120
Cembre TN120 Crimping Tools are professional manual crimping tools designed for insulated and uninsulated terminals and connectors.
- Manually adjustable die head
- Indent crimping style
All tools can be ordered from Thorne & Derrick – contact us for more information.
 For Cembre electrical connections, see Cable Crimps, Lugs & Connectors
Contact T&D to discuss crimping cables at MV-HV, including 11kV-33kV, to ensure correct Cembre tool, lug/splice and die set selection – visit battery crimping tools for repetitive crimping of cables without strain injury or worker fatigue.
Full range of battery cable cutting tools also available.
 See Cable Jointing Tools for a complete range of LV-HV-HV Tools to enable outer sheath removal, insulation removal and screen stripping from power cables operating typically at 11kV, 33kV, 66kV, 132kV and up to 400kV.
