Copper Earth Bars
Standard Bars without Disconnection Links
T&D distribute the complete range of Earth Bars that are manufactured from hard drawn copper bar with brass M10 stud assemblies and fittings.
The AN Wallis standard copper earth bars are available in a variety of sizes and specifications – this includes 6 Way up to 20 Way in both Standard & Customised designs.
Special copper earth bars can manufactured to meet customer requirements are also available. Recommended fixing by countersunk wood screw 11/2” x No. 12 and No. 12 wall plug.
Also: Earth Bars Single Link | Twin Link Earth Bars

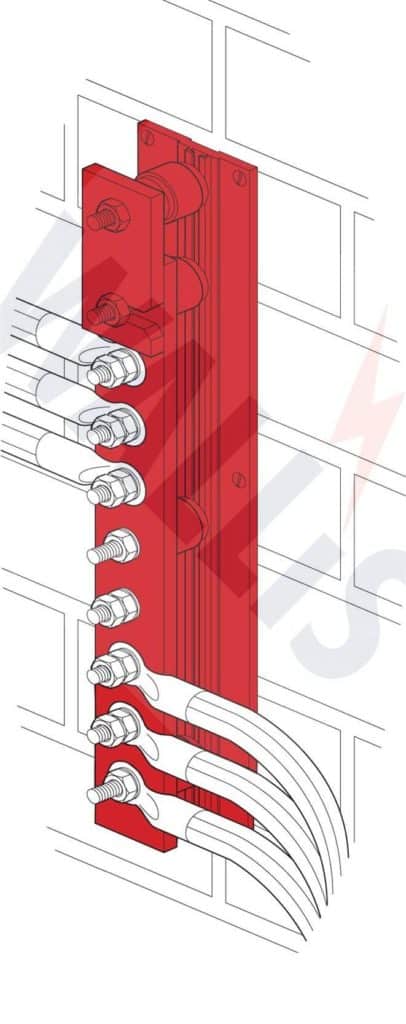

➡ Earth bars without Disconnection Links provide common point earthing system for electrical installations, options include termination points from 2 to 30 – the copper bar is 50mm x 6mm (hard drawn type to BS EN 13601) with lightweight plastic base. Using Wallis Earth Bar Software (WEBS) we can provide custom design earth bars on short lead times at competitive prices fully Tested to BS EN 62561-1 Class H – the bars are suitable for both indoor and outdoor earthing installations, direct burial underground and embedded into building materials including concrete or thermal insulation.
Standard & Tinned Copper Earth Bars | Brass bolts are used as standard for plain copper bars. Stainless steel bolts are used as standard for tinned copper bars.
Earth Bars – Standard Copper
SELECTION TABLE
The table enables the selection of standard copper earth bars when specifying copper conductors for earthing and lightning protection systems.
| AN Wallis Part Number | Number of Ways/Terminations | Earth Bar Dimensions (length x width x height) | Unit Weight |
| EBC006 | 6 | 400mm x 90mm x 60mm | 2.00kg |
| EBC008 | 8 | 500mm x 90mm x 60mm | 2.30kg |
| EBC010 | 10 | 650mm x 90mm x 60mm | 3.20kg |
| EBC012 | 12 | 750mm x 90mm x 60mm | 4.00kg |
| EBC014 | 14 | 850mm x 90mm x 60mm | 4.90kg |
| EBC016 | 16 | 950mm x 90mm x 60mm | 5.80kg |
| EBC018 | 18 | 1100mm x 90mm x 60mm | 6.70kg |
| EBC020 | 20 | 1250mm x 90mm x 60mm | 7.60kg |
| EBC024 | 24 | 1400mm x 90mm x 60mm | 8.50kg |
| EBC026 | 26 | 1550mm x 90mm x 60mm | 10.30kg |
| EBC028 | 28 | 1650mm x 90mm x 60mm | 11.20kg |
| EBC030 | 30 | 1800mm x 90mm x 60mm | 12.10kg |
Earth bars are manufactured from 50 x 6mm hard drawn, high conductivity copper bar to BS EN13601
Substation earth bars located in LV MV HV switchgear – cables terminated onto earthing and bonding
SUBSTATIONS LV MV HV
T&D supply DNO’s, IDNO’s, ICP’s and utility power contractors involved in the construction and maintenance of MV-HV substations – this includes duct seals for underground cable duct, cable cleats to support cables, underground cable protection and a full range of MV-HV cable joints, terminations and connectors in heat shrink, cold shrink and push-on technologies for XLPE, PILC, oil and gas insulated cables.
T&D, Supporting contractors involved in MV-HV Switchgear Testing, Substation Maintenance, Cable Laying & Jointing at 11kV, 33kV & EHV
➡ Contact T&D for competitive prices and fast delivery from stock for Earth Bars – Standard Copper.
