Earth Clamps

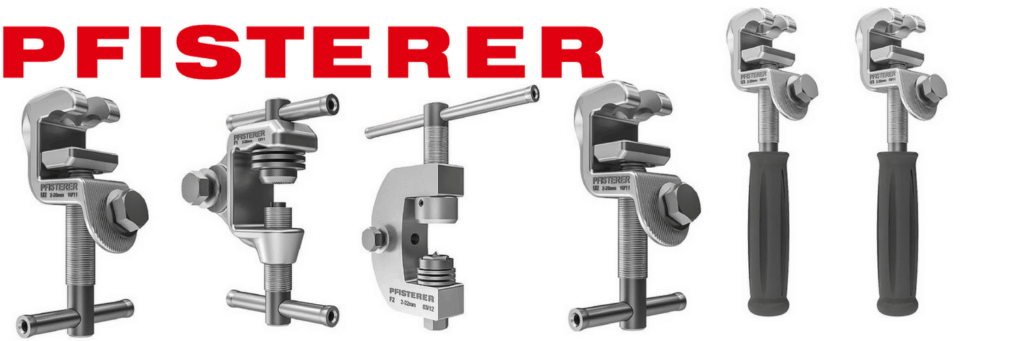

Pfisterer offers an extensive range of earth clamps for earthing and short-circuiting devices. These Pfisterer earth clamps are offered in various types, which are designed for different earth connection variants in indoor and outdoor installations.

• Earth clamps available in clamping ranges from 2 to 25 mm
• Earth clamps available with short-circuit current carrying capacity up to 29. kA/1 s
• Compact, robust design
• Easy handling
• Connected to an earthing and short-circuiting device by an M12 screw

Thorne & Derrick also stock and distribute the CONNEX range of medium voltage electrical equipment and cable accessories manufactured by Pfisterer to support the construction and operation of Gas Insulated Switchgear, Transformers & Power Systems – this includes cable connectors, bushings, surge arresters and ancillary substation connection products.

Universal Earth Clamps U1

Earth clamp with capstan-head screw for use at various earth connection points.

Universal Earth Clamps U2

Earth clamp with capstan-head screw for use at various earth connection points. Suitable for higher short-circuit currents.

Universal Earth Clamps U3

Earth clamp with handle for use at various earth connection points.

Universal Earth Clamps U4

Earth clamp with capstan-head screw for use at various earth connection points.

Universal Earth Clamps U5

Earth clamp with capstan-head screw for use at various earth connection points.

Earth Connection socket A1

Earth connection socket with wing screw for connection to a cylindrical earthing bolt.

Earth Connection Sockets A2

Earth connection socket with capstan-head screw for connection to a cylindrical earthing bolt.

Earth Clamps E2

Earth clamp with capstan-head screw.

Penetrating Earth Clamps F1

Earth clamp with capstan-head screw for use on coated masts. The cupped gripping point and tip are hardened to ensure reliable contact.

Gosag Penetrating Earth Clamps F2

Earth clamp with capstan-head screw for use on coated masts. The cupped gripping point and tip are hardened to ensure reliable contact.

Voltage Detectors MV HV | 11kV 33kV 66kV 132KV Up To EHV

Voltage Detectors | Phase Comparators | Operating Poles | Portable Earthing & Short Circuiting Kits

Data Sheets

• Earthing & Short Circuiting Devices MV HV Substations & Overhead Lines
