Euromold 152SR Straight Connector 11kV 24kV

View Sub Products

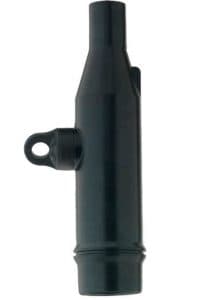

Euromold 152SR

Euromold 152SR is a screened separable straight connector specified to terminate and connect medium/high voltage cables in the following voltage classes:

  • 6/10 (12kV)
  • 6.35/11 (12kV)
  • 8.7/15 (17.5kV)
  • 12/20 (24kV)
  • 12.7/22 (24kV)

The Euromold 152SR straight connector with 250A current rating is designed for Interface A and covers voltages from 12kV to 24kV with a maximum conductor size of 95sqmm.

Euromold 152SR straight connectors can be supplied as an elbow connector (158LR) and with surge arresters (156SA) and plug-in type epoxy bushings for oil filled and dry type MV equipment – all suitable for use with Interface A type bushings on SF6 gas-insulated switchgear.

Euromold 152SR separable elbow connectors are designed to connect all polymeric screened cables to suit CENELEC Interface Type A (250amp) equipment bushings.

Separable straight connector designed for the termination of polymeric insulated medium voltage 6.6kV, 11kV, 15kV, 17.5kV, 22kV cable to bushings of transformers, switchgear, motors – can also be used to connect cable to cable, using the appropriate mating part.

Designed to connect polymeric insulated cables with a copper wire screen but can be used on wire armoured, copper tape screen cables with the use of additional screen earth kits and accessories.

Connector accessories include: dead-end receptacle, dead-end plug, stand-off plug and earthing plug for type A interfaces.

  • Manufacturer – Nexans Euromold
  • MV HV Equipment Bushing Connector – Interface A
  • Maximum Operating Current – 250A (Amps)
  • Voltage Classes – 12kV 24kV Maximum
  • Terminate & Connect Cables – Polymeric XLPE EPR
  • Conductor Cross Section Sizes – 16-95sqmm
  • Applications – MV HV Switchgear, Transformers, Motors

➡ See complete range of Nexans Euromold Connectors

Euromold 152SR Straight Connector 11kV 24kV

Euromold 152SR Straight Connector 11kV 24kV

EUROMOLD 152SR Specification

Euromold Separable
connector
type
Voltage
Um
(kV)
Current Ir (A) Conductor sizes (sqmm)
min max
152SR/G 11kV 12kV 250 Amps 16 95
152SR 11kV 12kV 250 Amps 70 95
K152SR/G 11kV 24kV 250 Amps 16 70
K152SR 11kV 24kV 250 Amps 25 95
Euromold 152SR Straight 11kV 24kV - Design

Euromold 152SR Straight 11kV 24kV – Design

Separable straight connector comprising:

  1. Conductive EPDM insert
  2. Conductive EPDM jacket
  3. Insulating EPDM layer moulded between the insert and the jacket
  4. Type A – 250 A Interface as described by CENELEC EN 50180 and 50181
  5. Conductor connector
  6. Voltage test point
  7. Earthing lead (-/G version only)

The thick conductive EPDM jacket provides a safe to touch screen which ensures safety for personnel, cables and electrical equipment in medium/high voltage installations.

Euromold 152sR Selection Table

For Screened MV HV Straight Connectors

Select the Euromold ordering part number which positions the cable most central to the minimum and maximum core insulation diameter, then substitute X using the table below, according to the conductor size (sqmm) and type (copper or aluminium). Order Euromold MT connector kit to enable termination of copper tape screened MV-HV cables in voltage range 11kV (12kV) to 24kV – suitable for copper wire screened cables. Add a ‘K’ for use up to 24 kV.

The complete Euromold 152SR elbow connector kit comprises the following components – cable lubricant, wipers, installation instructions and crimp chart.

Kit Contents for Euromold 152SR Connectors

Kit Contents for Euromold 152SR Connectors



Euromold 152SR
Part Number
Dia. over core insulation (mm)
min max
152SR/G-11-X 12.6 16.1
152SR/G-13-X 14.6 18.7
152SR-FB-X+11TL 17.5 20.2
152SR-FG-X+11TL 18.4 21.2
152SR-GA-X+11TL 19.7 22.5
152SR-GAB-X+11TL 21.0 23.8
152SR-GH-X+11TL 23.6 26.4



Conductor
sizes
(sqmm)
Aluminium Cable Copper Cable
DIN Hexagonal Crimp Deep Indent Crimp DIN Hexagonal Crimp
16sqmm 16(K)M-11-2
25sqmm 25(K)M-12-2 25KM-12-1 25(K)M-11-2
35sqmm 35(K)M-12-2 35KM-12-1 35(K)M-11-2
50sqmm 50(K)M-12-2 50(K)M-12-1* 50(K)M-11-2
70sqmm 70(K)M-12-2 70(K)M-12-1* 70(K)M-11-2
95sqmm 95(K)M-12-2 * 95(K)M-12-1* 95(K)M-11-2*
