Euromold 400T1/ 400AR-1 / 400AR-2 Bushings 11kV 33kV

Euromold 400T1 400AR-1 400AR-2

Bushings For Oil Filled Transformers

Up To 33kV

Euromold 400T1/ 400AR-1 / 400AR-2 are MV-HV bushings for use in equipment insulated with oil fluid, typically for transformers, switchgear, capacitors that are specified to terminate and connect medium/high voltage cables in the following voltage classes:

  • 6/10 (12kV)
  • 6.35/11 (12kV)
  • 8.7/15 (17.5kV)
  • 12/20 (24kV)
  • 12.7/22 (24kV)
  • 18/30 (36kV)
  • 19/33 (36kV)

Euromold 400T1/ 400AR-1 / 400AR-2 bushings can be supplied to suit tee connector (400TE) or elbow connector (400LR) – all suitable for use with Interface B type bushings on medium and high voltage electrical equipment including SF6 gas-insulated switchgear.

Connector accessories include: dead-end receptacle, dead-end plug, stand-off plug and earthing plug for type B interfaces.

  • Manufacturer – Nexans Euromold
  • MV HV Equipment Bushing Connector – Interface B
  • Maximum Operating Current – 400A (Amps)
  • Voltage Classes – 12kV 24kV 36kV Maximum
  • Terminate & Connect Cables – Polymeric XLPE EPR
  • Applications – MV HV Switchgear, Transformers, Motors

➡ See complete range of Nexans Euromold Connectors

EUROMOLD 400T1/ 400AR-1 / 400AR-2 Specification

Euromold equipment
bushing
type		 Voltage
Um
(kV)		 CurrentIr
(A)		 Dimensions (mm)
A B C D E Dia. F Dia. G Dia. H
400T1 12 400 310 144 30 M12 22 88 128 16
K400T1 24 400 310 144 30 M12 22 88 128 16
M400T1 36 400 310 144 30 M12 22 88 128 16
400AR-1 12 400 380 213 30 M12 22 74 128 16
K400AR-1 24 400 380 213 30 M12 22 74 128 16
M400AR-1 36 400 380 213 30 M12 22 74 128 16
400AR-2 12 400 329 138 36 M16 40 100 150 30
K400AR-2 24 400 329 138 36 M16 40 100 150 30
M400AR-2 36 400 329 138 36 M16 40 100 150 30

To order the equipment bushing for oil filled or immersed transformers up to 33kV specify the type. The MV-HV bushings are supplied with an earth jumper (/J) or an earth plate (/GS). This earth connection must be specified when ordering. E.g. Nexans Euromold K400AR-1/J.

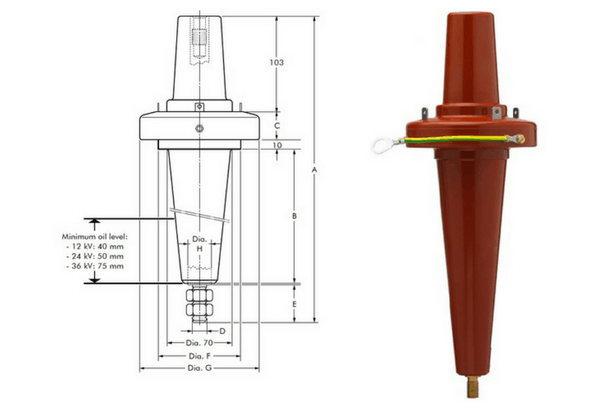

Euromold 400T1 400AR-1 400AR-2 - Design

Euromold 400T1 400AR-1 400AR-2 – Design

BUSHING CONSTRUCTION CHARACTERISTICS
Connector shape Bushing
Connector type –
Conductor material Copper or Aluminum
Technology Slip-0n
DIMENSIONAL CHARACTERISTICS
Conductor cross-section, range 0 .. 0sqmm
ELECTRICAL CHARACTERISTICS
Maximal partial discharge at 2Uo 10pC
Dielectric withstand voltage, 50Hz 1mn 81kV
Impulse voltage 170kV
Rated Voltage Uo/U (Um) 18 / 30 (36) kV
USAGE CHARACTERISTICS
Interface B (250 A)

EUROMOLD 400T1 400AR-1 400AR-2 FIXINGS FOR BUSHINGS

Euromold 400T1 400AR-1 400AR-2 Fixing For Bushings

Euromold 400T1 400AR-1 400AR-2 Fixing For Equipment Bushings Medium & High Voltage
