Klauke EK WF 120 ML | Battery Powered Cable Crimping Tool 6 – 120 sqmm

Klauke EK WF 120 ML | Battery Powered Crimping Tool

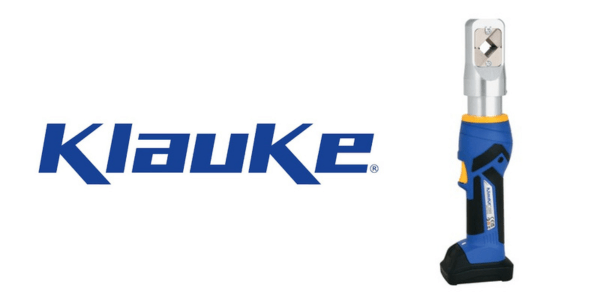

Klauke EK WF 120 ML

CRIMPING TOOLS

The Klauke EKWF120ML is a battery powered cable crimping tool that gives excellent crimping results with minimum effort for cable lugs and connectors up to 120sqmm.

The newly developed hydraulic battery powered crimping tool has been designed to simplify work and simultaneously ensure optimum crimping quality. With innovative square crimping and a square-cam mechanism, the EK WF 120 ML crimps both DIN-compliant wire ferrules as well as insulated wire ferrules, twin wire ferrules and insulated wire ferrules for short-circuit protected lines.

The square mechanism adjusts flexibly to the respective cable end sleeve shape, allowing the user to crimp most wire ferrules in the cross-section range in just a single step.

The EK WF 120 ML crimping tool from Klauke uses i-Press App which allows all tool data to be viewed at a glance.

The battery powered hydraulic crimping tool has a crimping range between 6 – 120sqmm and only requires one pressing (up to a wire end sleeve length of 32 mm). The EK WF 120 ML comes equipped with a powerful 10.8 V Li-Ion battery with battery charge indicator for fast and powerful crimping.

Should you require any customer service or technical support in order to select the correct crimping or cutting tool for all types of LV MV HV electric cables please do not hesitate to contact us.

KLAUKE EKWF120ML

CABLE CRIMPING TOOL

Systematically Optimized For Better Results

The EK WF 120 ML is a perfect addition to the ML range from Klauke.

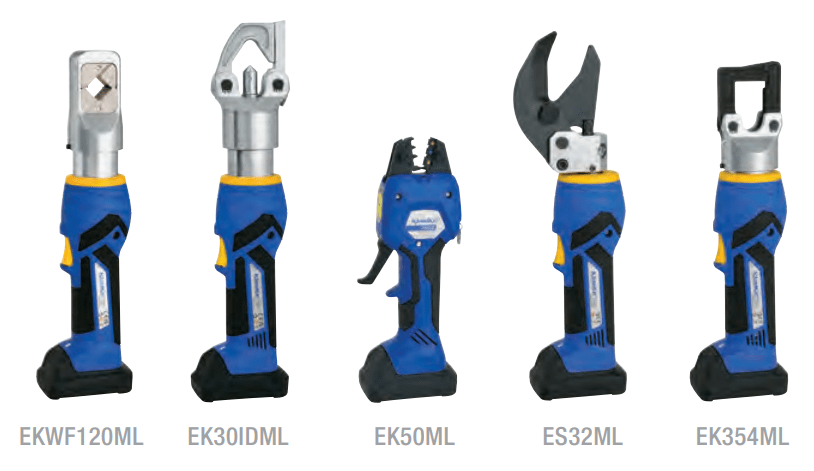

Klauke ML Range Of Cable Cutting & Crimping Tools

Closed head
Simple and safe: one-button operating concept for controlling all tool functions
Comfortable and secure one-hand operation thanks to 2-component plastic housing with soft lining
Effortless operations thanks to low weight
Automatic retraction when operation is complete
Manual retract stop (MRS+) for positioning control for multiple crimps
Maintenance display via LED
See Also | Ratchet Cable Cutters | Cable Crimping Tools

Suitable for:

Cable end sleeves
Insulated cable end-sleeves
Twin-cable end sleeves
Insulated twin cable end sleeves

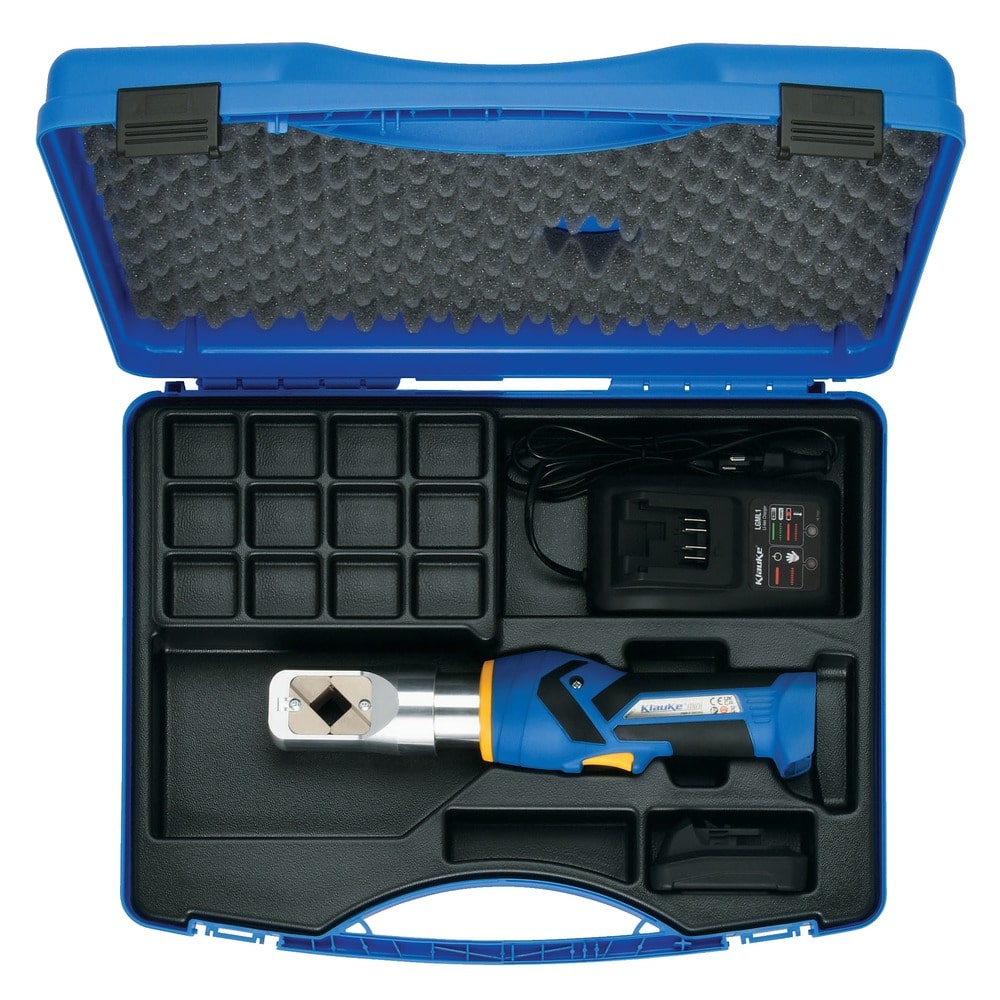

Cable Crimping Tool 6 – 120sqmm – Klauke EK WF 120 ML

Technical Specification for Klauke EK WF 120 ML

The following table shows the specification of the EK WF 120 ML crimping tool:

Crimping Tool	Klauke EKWF120ML
Crimping Force	10 / 40 kN
Crimping Range	6 – 120sqmm
Crimping Cycle	1 s to 5 s (depending on crimping cross-section)
Battery Voltage	10.8 V
Battery Capacity	2.5 Ah, Li-Ion
Battery Charging Time	approx. 45 min.
Weight Including Battery	1.96 kg
Ambient Temperature	-10°C to +40°C
