Klauke EK120/32 | Battery Powered Cable Crimping Tool 16-400sqmm

Klauke EK120/32

CRIMPING TOOLS

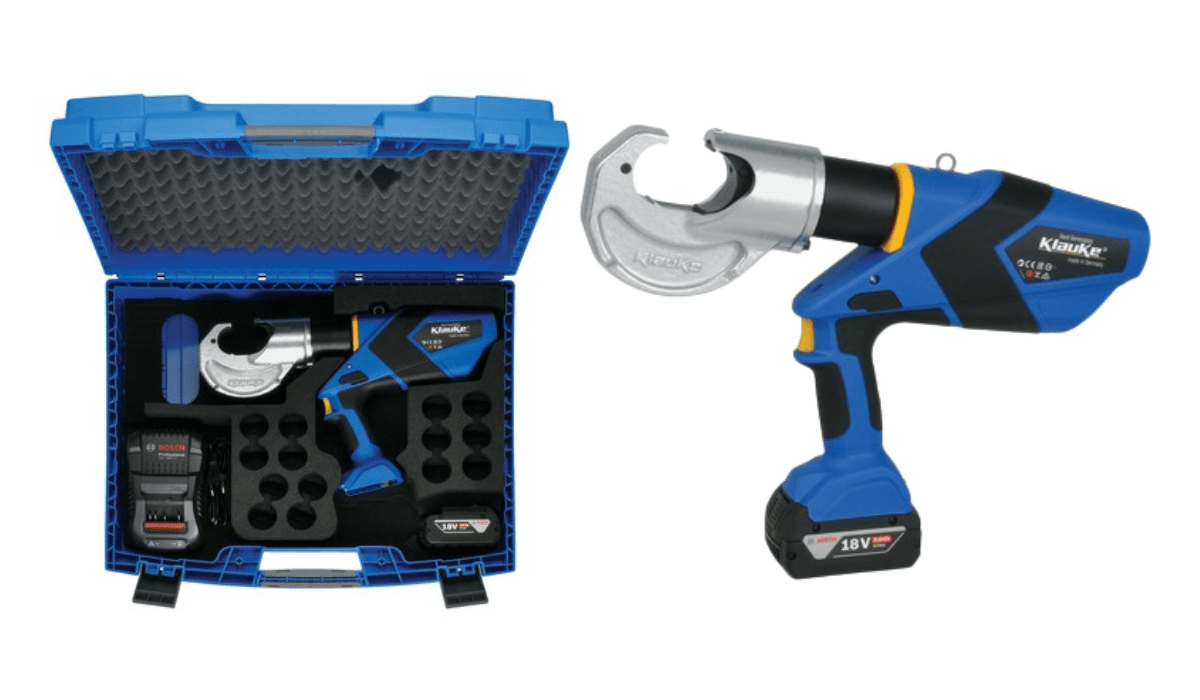

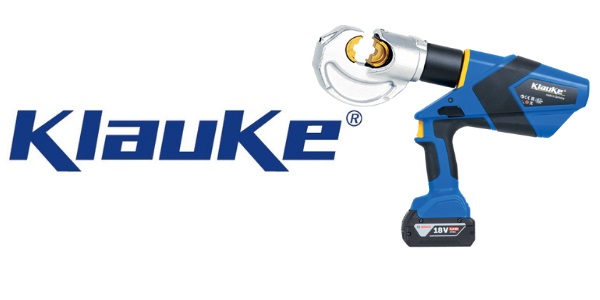

The Klauke EK120/32 is a battery powered cable crimping tool that has a very large crimping range for cable lugs and connectors up to 400sqmm – suitable for up to 60% less crimping operations due to wide crimping compared with 6 t tools

The Klauke EK120/32Hydraulic Crimping Tool uses the new Klauke Link App, a newly developed mobile platform which allows all tool data to be viewed at a glance, with a smart interface. The app provides an interface to Klauke devices which are equipped with Bluetooth technology.

Klauke crimping tools are available with Bosch or Makita battery system.

Battery powered hydraulic crimping tool with a crimping range between 16-400sqmm.

Thorne & Derrick stocks and distributes a comprehensive selection of Klauke Cable Crimping Tools and Klauke Cable Cutting Tools designed for use in a wide range of electrical and industrial applications, ensuring high-performance results and reliability. The range consists of the following variations Klauke EK12032CFB | Klauke EK12032CFM

EKM120/32 Battery powered hydraulic crimping tool 16 – 400 sqmm

Klauke EK120/32

Cable Crimping Tool

Option for battery system: Bosch or Makita
Easy readout of all data via Bluetooth
Open head, rotatable battery powered cable crimping tool
Klauke EK120/32 is simple and safe: one-button operating concept for controlling all tooling functions
Effortless operations because of balanced centre of gravity
Crimping tool features a LED for workplace illumination
2-stage hydraulic system with fast feed and power stroke
Simple and safe: Automatic retraction crimping tool head when operation is complete
Automatic retraction stop (ARS) for positioning control in case of multiple crimping of cables
Tool always ready for use thanks to the battery charge status and service display
See Also | Ratchet Cable Cutters | Cable Crimping Tools

Battery Powered Cable Crimping Tool 16-400sqmm – Klauke EK120/32

Technical Specification For Klauke Ek120/32

The following table outlines the performance specification of the Klauke EK120/32 crimping tool:

Cable crimping force	120 kN
Stroke	32 mm
Crimping tool range	16-400sqmm
Crimping tool cycle	7 s up to 8 s (depending on cross-section)
Battery voltage	18 V
Battery capacity	5.0 Ah, Li-Ion
Charging time	45 min
Weight incl. battery	6.8 kg
Ambient temperature	-10°C to +40°C

BATTERY POWERED CABLE CRIMPING TOOL – DIES

The following tables show the correct die sets to use for installing cable lugs, connectors, joints and end sleeves using Klauke EKM120/32 crimping tool:

Klauke EKM120/32 Tool Suitable for	Cable Crimping range sqmm	Type of die
Tubular cable lugs and connectors, Cu
Tubular cable lugs and connectors, Cu, standard type, tubular cable lugs for switchgear connections	16 – 400	Crimping dies HR 13
Butt connectors, standard type	16 – 185	–
Insulated tubular cable lugs and connectors, insulated pin terminals	10 – 150	Crimping dies HIS 13
Tubular cable lugs and connectors for fine stranded conductors	16 – 150	Crimping dies HF 13

Tool Suitable for	Cable Crimping range sqmm	Type of die
Tubular cable lugs and connectors, stainless steel, NI
Tubular cable lugs and connectors – VA	10 – 50	Crimping dies HN 13, double indent crimp
Tubular cable lugs and connectors – VA	70 – 95	Crimping dies HN 13, indent crimp
Tubular cable lugs and connectors – Ni	10 – 50	–
Tubular cable lugs and connectors – Ni	70 – 95	–

Tool Suitable for	Cable Crimping range sqmm	Type of die
Compression cable lugs and connectors acc. to DIN – Cu
Compression cable lugs (DIN46230) and connectors (DIN 46267, part 1) Cu	10 – 300	Crimping dies HD 13
Compression joints DIN 46267 part 1	10 – 150	–
Double compression cable lugs	2 x 50 – 2 x 120	Crimping dies HDP 13

Tool Suitable for	Crimping range sqmm	Type of die
Solderless Terminals, connectors and pin terminals acc. to DIN – Cu
Solderless terminals (DIN 46234) and pin terminals (DIN 46230) Cu, solderless connectors (DIN 46341) Cu	10 – 150	Crimping dies HQ 13
Insulated solderless terminals and pin terminals	10 – 95	Crimping dies HISQ 13

Tool Suitable for	Cable Crimping range sqmm	Type of die
Sleeves for compacted conductors and sector shaped conductors, Cu
Pre-rounding dies for sector-shaped Al and Cu conductors, 3-core and 4-core sector-shaped conductors	10 sm – 300 se / 300 sm	Crimping dies HRU 13

Tool Suitable for	Cable Crimping range sqmm	Type of die
Compression cable lugs and connectors acc. to DIN
Compression cable lugs and connectors according to DIN – Al	10 – 300 rm/se, 16 – 400 re/se	Crimping dies HA 13
Compression joints for full tension connections of Aldrey-conductors according to DIN EN 50182 and Al-conductors DIN EN 50182, 120 – 185 mm²	25 – 185	–
Compression joints according to DIN 48085, part 3 for Al-/St-cable according to DIN EN 50182, aluminium crimping	4-20 (St) – 25-120 (Al)	–
Compression joints according to DIN 48085, part 3 for Al-/St-cable according to DIN EN 50182, steel crimping	4-20 (St) – 25-120 (Al)	–

Tool Suitable for	Cable Crimping range sqmm
Aluminum/copper compression cable lugs and connectors – AL/CU
Aluminum/copper compression cable lugs and connectors – AL/CU	10 – 300 rm/se, 16 – 400 re/se

Clamps
Clamps, C-type terminal clamps	10 – 70	Crimping dies HC 13 / HMC 13
Clamps, H-type clamps	70 – 120	Crimping dies HAH 13

Cable end-sleeves
Cable end-sleeves	25 – 240	Crimping dies HAE 13
Cable end-sleeves, trapezoidal, for fine stranded conductors	25 – 240	Crimping dies HAES 13

CABLE TOOLS

Should you require technical assistance to select the correct cable crimping or cable cutting tools please contact us.

Thorne & Derrick are Specialist Distributors of cable tools to enable the preparation of all LV MV HV cables prior to the installation of Joints, Terminations & Connectors – this includes Klauke, Cembre, Alroc and Boddingtons cable jointing tools for removal of cable sheath, screen and insulation on 11/33kV (MV) and 66kV/132kV (HV) power cables.
