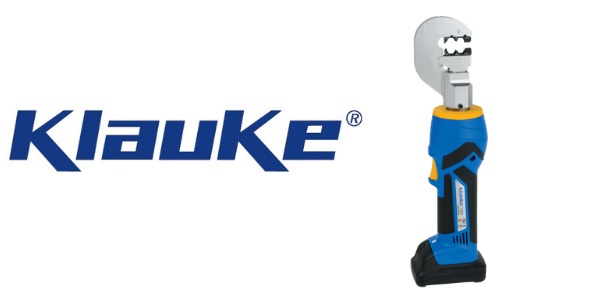

Klauke EK15/50 | Battery Powered Cable Crimping Tool 0.14-50sqmm

Klauke EK15/50

CRIMPING TOOLS

The Klauke EK15/50 is a battery powered cable crimping tool that has a crimping range for cable lugs and connectors up to 50sqmm – suitable for optimum crimping due to parallel guided crimping dies.

The EK15/50 crimping tool from Klauke has a robust head for a long life span, a low weight which makes using the tool effortless and has a powerful 10.8 V Li-Ion battery with charge status display.

Battery powered hydraulic crimping tool with a crimping range between 0.14-50sqmm.

Klauke EK15/50

Cable CRIMPING TOOL

Open head, rotatable battery powered cable crimping tool
Klauke EK15/50 is simple and safe: one-button operating concept for controlling all tooling functions
Comfortable and safe one hand operation by ergonomic 2-component housing with soft linings
Simple and safe: Automatic retraction of crimping tool head when operation is complete
Maintenance control by LED
See Also | Ratchet Cable Cutters | Cable Crimping Tools

Battery Powered Cable Crimping Tool 0.14-50sqmm – Klauke EK15/50

Technical Specification for klauke ek15/50

The following table outlines the performance specification of the Klauke EK15/50 crimping tool:

Cable crimping force	13 kN
Stroke	9 mm
Crimping tool range	0.14-50sqmm
Crimping tool cycle	approx. 2 s
Number of crimps	approx. 230 at 10 mm² Cu
Battery voltage	10.8 V
Battery capacity	1.5 Ah, Li-Ion
Charging time	approx. 40 min
Weight incl. battery	1.5 kg
Ambient temperature	-10°C to +40°C

BATTERY POWERED CABLE CRIMPING TOOL – DIES

The following tables show the correct die sets to use for installing cable lugs, connectors, joints and end sleeves using Klauke EK15/50 crimping tool:

Tool Suitable for	Cable Crimping range sqmm	Type of die
Copper tubular cable lugs and connectors
Copper tubular cable lugs and connectors, standard type	0.75 – 10	Crimping dies R 50, indent crimping
Copper tubular cable lugs and connectors, standard type	6 – 25	Crimping dies R 50, hexagonal crimp
Copper tubular cable lugs and connectors for solid conductors	1.5 – 10	Crimping dies M 50

Tool Suitable for	Cable Crimping range sqmm	Type of die
Copper compression cable lugs and connectors acc. to DIN
Copper compression cable lugs (DIN 46235) and connectors (DIN 46267, part 1)	6 – 25	Crimping dies D 50

Tool Suitable for	Cable Crimping range sqmm	Type of die
Terminals, connectors and pin terminals acc. to DIN – Cu
Solderless terminals (DIN 46234) and pin terminals (DIN 46230) Cu, connectors (DIN 46341)	0.5 – 10	Crimping dies Q 50

Tool Suitable for	Cable Crimping range sqmm	Type of die
Cable end-sleeves
Cable end-sleeves	0.14 – 50	Crimping dies AE 50

Tool Suitable for	Cable Crimping range sqmm	Type of die
Cable connections, insulated and non-insulated
Insulated cable connections, single crimping	0.5 – 16	Crimping dies IS 50, single crimping
Insulated cable connections, double crimping	0.5 – 16	Crimping dies IS 50, double crimping
Non-insulated receptacles	0.25 – 6	Crimping dies CR 50
For pin and shielded receptacles, BNC connectors for coax-cables RG 58, 59, 60 and 71		Crimping dies BNC 50
Turned pin connectors, pin receptacles	0.1 – 4	Crimping dies SB 50

CABLE TOOLS

Should you require technical assistance to select the correct cable crimping or cable cutting tools please contact us.

Thorne & Derrick are Specialist Distributors of cable tools to enable the preparation of all LV MV HV cables prior to the installation of Joints, Terminations & Connectors – this includes Klauke, Cembre, Alroc and Boddingtons cable jointing tools for removal of cable sheath, screen and insulation on 11/33kV (MV) and 66kV/132kV (HV) power cables.
