Battery Powered Cable Cutting Tool 20mm Dia – Klauke ES 20 ISM VDE

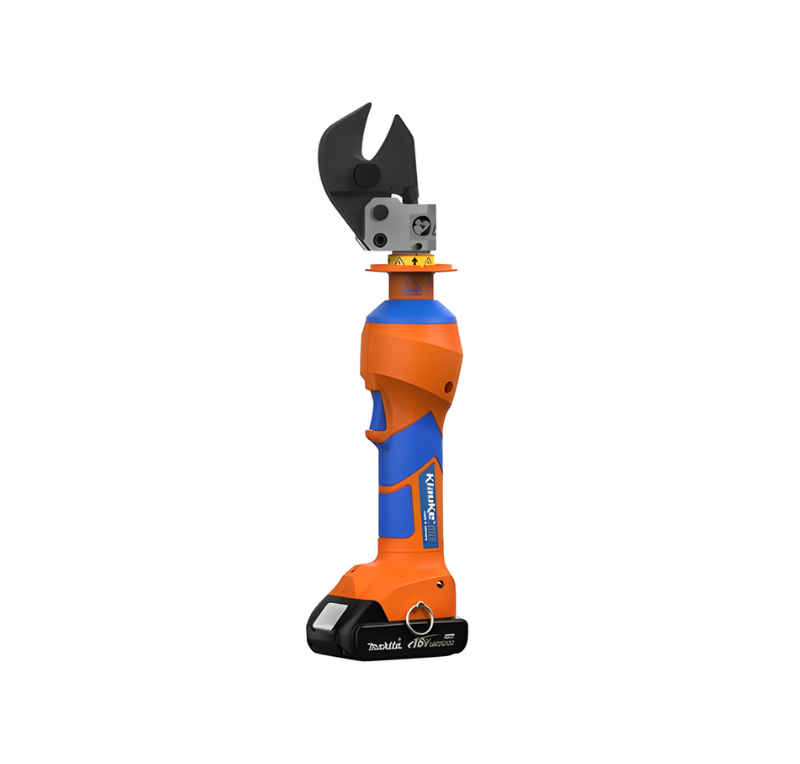

Klauke ES 20 IS VDE Battery Powered Hydraulic Cutting Tool

Klauke ES 20 IS VDE HYDRAULIC BATTERY POWERED CUTTING TOOL

£POA

Request a Quote

Call Us: +44 (0)191 410 4292

The Klauke ES 20 IS VDE is a battery powered hydraulic cutting tool designed for safe cutting of Al/St conductors (ACSR), solid aluminium and copper cables, and laminated copper bus bars.

KLAUKE ES 20 IS VDE HYDRAULIC CUTTING TOOL

The Klauke ES 20 ISM VDE is a battery powered cutting tool that has a maximum diameter range for cable lugs and connectors of 20mm – suitable for cutting Al/St conductors (ACSR) to DIN EN 50182, solid Al/Cu cables to DIN EN 60228, Class 1 and laminated copper bus bars.

The Klauke ES 20 ISM VDE can be used in confined spaces thanks to slim cutting head and is extremely robust and lightweight in design.

The ES 20 is part of the Klauke Orange Tool range insulated and VDE certified to 1000 V for increased safety when working on potentially voltage-carrying electrical equipment or crimping conductors to facilitate the installation of joints and terminations.

The orange housing of the battery powered cable crimping tool makes it easily differentiated from standard crimping tools and the built-in display allows user to view all tool data instantly.

Contact our experts to order or learn more about the Klauke ES 20 IS VDE and our full range of Klauke cutting tools, batteries and accessories.
We provide technical advice, quotations and fast delivery for both UK and export projects.

Contact Our Experts

BATTERY POWERED CUTTING TOOL – SPECIFICATIONS (BOSCH BATTERY SYSTEM – ES 20 IS VDE)

ES 20 IS VDE Electrical Features
Head type	Cutter open
Cutting range	Max. 18 mm dia. (depending on cable/wire type)
Cutting force	23 kN
Cutting time	2 s to 4 s (depending on cable size)
Battery charging time	15 mins
Weight	2.1 kg
Ambient temperature	-10 °C to 40 °C

BATTERY POWERED CUTTING TOOL – SPECIFICATIONS (MAKITA BATTERY SYSTEM – ES 20 IS VDE)

ES 20 IS VDE Electrical Features
Cutting range	Max. 18 mm dia. (depending on cable/wire type)
Cutting force	23 kN
Cutting time	2 s to 4 s (depending on cable size)
Number of cuts	Approx. 160 cuts (ACSR cable 120/20)
Battery voltage	18 V
Battery capacity	1.5 Ah, Li-Ion
Battery charging time	15 mins
Weight including battery	2.1 kg
Ambient temperature	-10 °C to +40 °C

HYDRAULIC CUTTING TOOL – FEATURES

Choose your battery system: Bosch or Makita

VDE certified insulated tool suitable for live working up to 1000V
Housing in Signal Orange for simple differentiation from standard tools
Suitable for cutting Al/St conductors (ACSR) to DIN EN 50182
Suitable for solid aluminium and copper cables to DIN EN 60228 Class 1
Suitable for laminated copper bus bars
Open head, rotatable
Slim cutting head ideal when space is critical
Simple one-button operation for safe and straightforward tool control
Balanced centre of gravity for effortless working
LED for work area illumination
Automatic retraction once the operation is complete
Manual retract stop (MRS) for efficient operations
Battery charge and service display for ready-to-use status indication
Built-in display and Bluetooth connectivity for easy access to tool data

CUTTING TOOL – SUITABILITY

The hydraulic cutting tool offers powerful, controlled cutting performance and is suitable for professional electrical installation, utility and industrial maintenance applications.

Material	Maximum Diameter	Head Type
Al/St conductors (ACSR), solid aluminium and copper cables, laminated copper bus bars	18 mm	Cutter open, rotatable

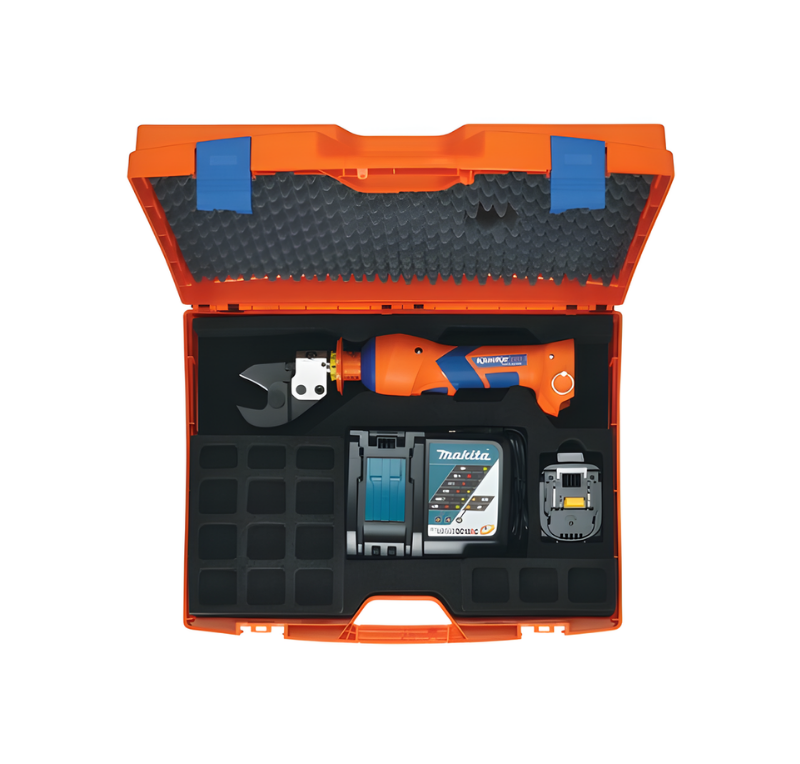

KLAUKE ES 20 IS VDE – SCOPE OF DELIVERY / ACCESSORIES

Part No.	Description
RALB1EU	Bosch battery 18 V / 2.0 Ah, Li-Ion
LGLB1EU	Bosch quick-charger for 18 V Li-Ion batteries
RAL1	Makita battery 18 V / 1.5 Ah, Li-Ion
LGL1	Makita quick-charger for 18 V Li-Ion batteries
KK50IS	Hard plastic carrying case
RALB2EU	Bosch battery 18 V / 5.0 Ah, Li-Ion
RAL2	Makita battery 18 V / 3.0 Ah, Li-Ion (54 Wh)
ES20E	Replacement blades

Cable Tools

Should you require technical assistance to select the correct cable crimping or cable cutting tools please contact us.Thorne & Derrick are Specialist Distributors of cable tools to enable the preparation of all LV MV HV cables prior to the installation of Joints, Terminations & Connectors – this includes Klauke, Cembre, Alroc and Boddingtons cable jointing tools for removal of cable sheath, screen and insulation on 11/33kV (MV) and 66kV/132kV (HV) power cables.

Cable Crimping Cable Cutting Tools
