Contact Thorne & Derrick for competitive prices and UK or international delivery on the complete range of mining cables for low/medium/high voltage (MV-HV) flexible and trailing power systems manufactured by TF Kable.
The following table provides an overview of the mining cables product range – a complete range of MV HV Joints & Terminations are also available for mining cables including cold shrink type joints and terminations for use in underground mine applications in potentially explosive atmospheres characterised by the presence of flammable gases in hazardous areas.

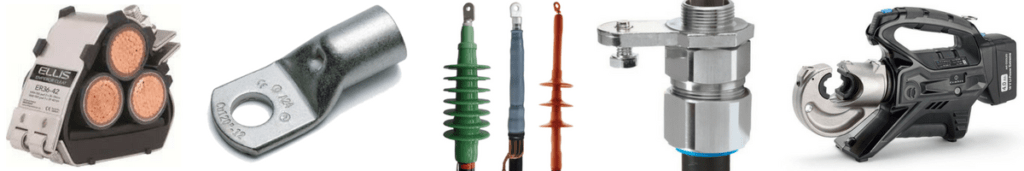

JOINTS, TERMINATIONS & CONNECTORS FOR Mining CABLES
Complete range of approved cable accessories manufactured by 3M, Pfisterer, Nexans Euromold and Prysmian to joint, terminate and connect mining cables up to 6.6kV.
➡ Also Mining Cable Glands
 |
Cable Designation | Mining Standard | Nominal Voltage (V) | Number of Cores | Cross Sections (mm2) | LV MV HV Application |
 |
Type 41 | SANS 1520 Part 1 | 0,64/1,1 kV | 3 + 1 | 4÷16 | Flexible electric trailing cables for use in mines for underground mining. |
| Type 61 A | 3 + 3 | 3×25+3×10÷3×95+3×16 | ||||
| Type 61 B | 3 + 3 | 3×70+3×10÷3×95+3×16 | ||||
| Type 63 | 1,9/3,3 kV | 3×25+3×10÷3×150+3×25 | ||||
 |
Type 66 | SANS 1520 Part 2 | 3,8/6,6 kV | 3 + 3 | 3×25+3×10÷3×95+3×16 | Flexible electric trailing cables for use in mines for underground mining. |
| Type 611 | 6,35/11 kV | 3 + 3 | 3×25+3×10÷3×95+3×16 | |||
| Type 66 ECC | 3,8/6,6 kV | 3 + 3 | 3×25+2×10+1×16÷3×95+2×16+1×50 | |||
 |
Type 241.1 | AS/NZS 1802:1995 | 1,1/1,1 kV | 3 + 3 + 3 | 6÷120+1÷14+2,5 | Mining cable for use in underground coalmines. |
 |
Type 7 | BS 6708:1998 | 640/1100V | 3 + 3 + 1 | 16÷120+16÷50+16÷70 | |
 |
Type 2S | AS/NZS-1972: 2002 | 600/1000 | 2, 7, 16, 18, 30 4 6 3 |
1.5
1.5; 16 |
Flexible electric rubber insulated cablesfor use particularly in underground mines. |
 |
Mining Cables Type 1 PVC Insulated & Covered Collectively Screened | AS/NZS1972 | 600/1000 | 2 to 16 | 1.5 & 16 | For wiring mobile equipment & Wiring interconnection of mining equipment |
 |
Mining Cables Type 275 | AS/NZS1802 | 1100/1100 | 3 + 3 + 1 | 16÷50 | Shuttle Car Cable |
