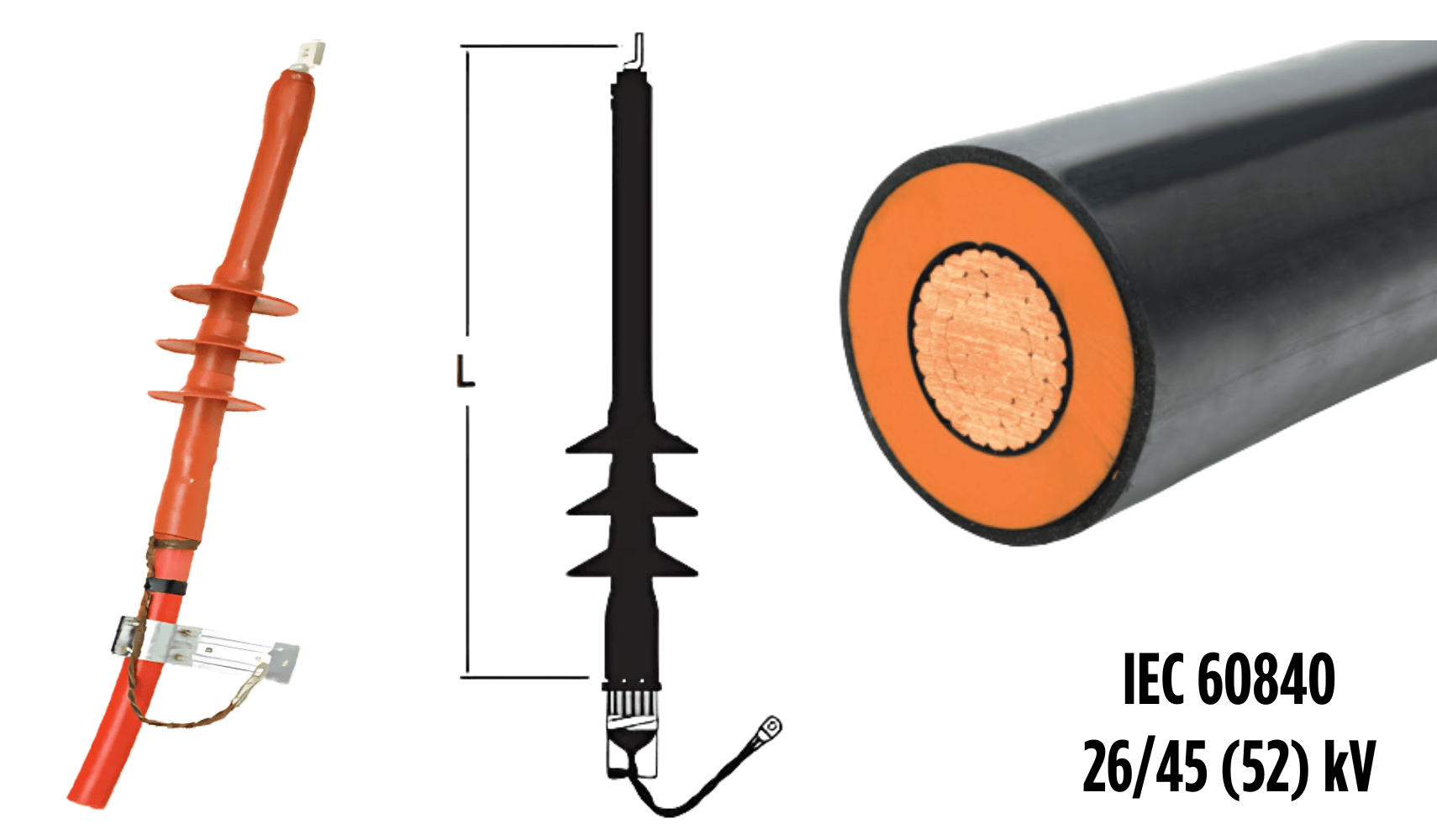

Nexans 52TTGI1
Heat-Shrinkable Indoor Termination 52kV MV HV
Nexans 52TTGI1 is a single core heat-shrinkable cable termination for use indoor and forming part of the Euromold 52kV Cable Accessories. Specified to terminate and connect medium/high voltage cables in the following voltage class: 52kV.
The Nexans 52TTGI1 heat-shrinkable indoor terminations are designed for plastic or EPR insulated cables with copper wire screen or copper tape screen – they are used to connect and terminate medium and high voltage power cables.
Thorne & Derrick hold large stocks of HV Cable Joints, Terminations & Connectors suitable for XLPE, PILC and EPR cables, in both heat shrink and cold shrink technologies, to service the medium/high voltage power cable accessory requirements of UK and international customers. The cable terminations and connectors for the energization of medium/high (MV HV) power cables are compatible with either mechanical shearbolt and compression crimp lugs from brands including Cembre and Klauke.

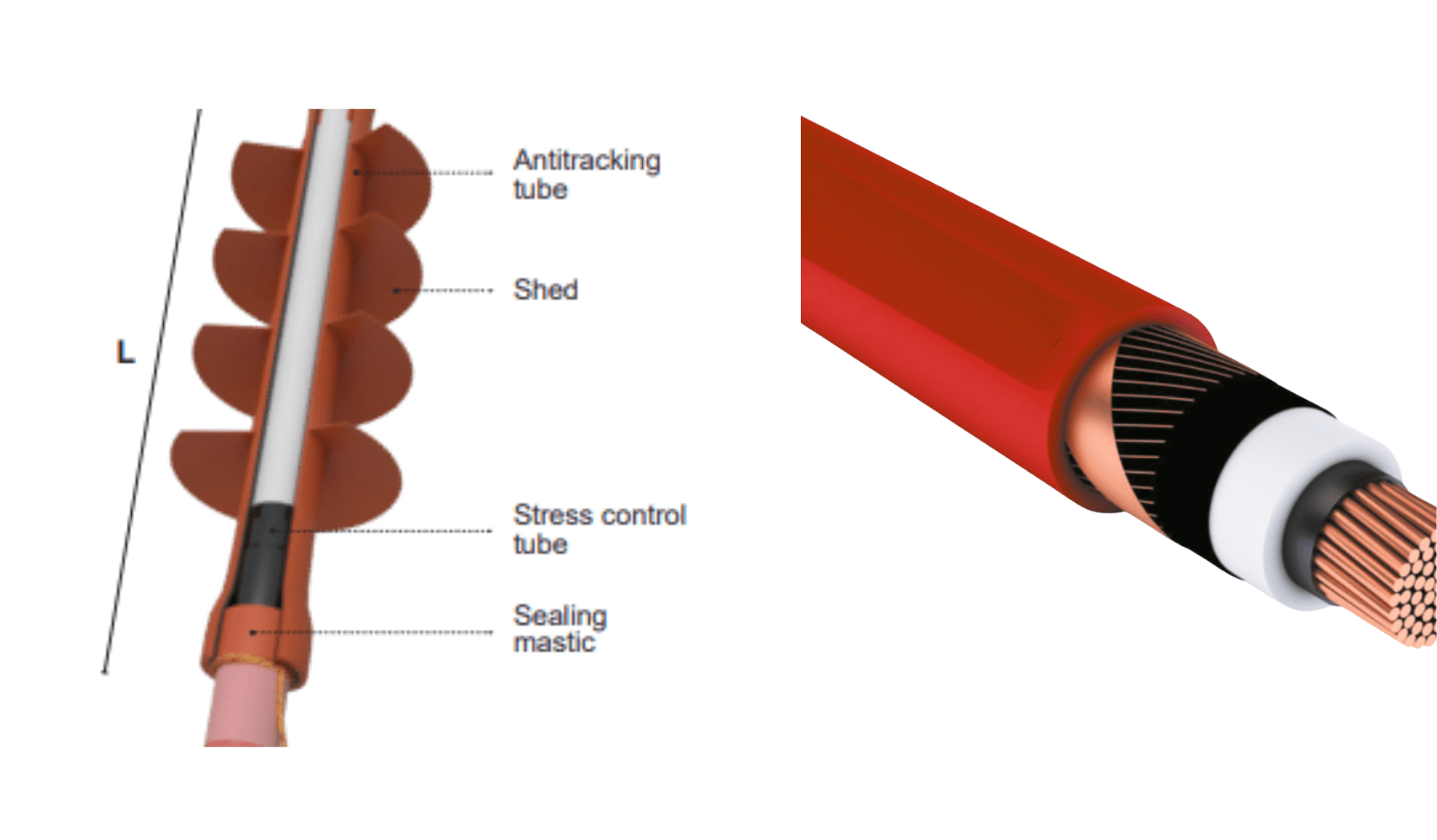

Heat-Shrinkable Termination 52kV MV HV
Cable Termination
Characteristics
A stress control patch is applied at the screen cut of the 52kV cable termination and helps to control the field together with stress control tubing. Semi conductive tubing creates a bridge for leakage currents placed onto and covering the screen wires or earth braid.
Another layer of stress control mastic covers the top end of the semi conductive tubing. Red anti-tracking mastic is wrapped onto the top end of the heat shrink tubing. The cable lug and cable outer sheath is sealed with anti-tracking mastic. Heavy wall anti-tracking heat shrink tube and anti-tracking rain sheds complete the termination.
A solderless roll constant force spring and an earthing braid are included in the kit (type Ai). The design accommodates various conductor lugs. MC types are supplied with GPH mechanical conductor lugs. For cable with aluminium foil screen please contact T&D.
Nexans 52TTGI1 selection table
For Indoor MV HV Cable Terminations
| Voltage Um kV | Cable Termination Type | Application range (sqmm) | Diameter over core insulation (mm) | Diameter over outer sheath (mm) | L (mm) | Standard |
| 52 | 52TTGI1.95i | 25-95 | 26-32 | 30-44 | 900 | Cenelec HD 629.1 IEC 60502-4 |
| 52 | 52TTGI1.240i | 70-240 | 28-40 | 32-46 | 900 | Cenelec HD 629.1 IEC 60502-4 |
| 52 | 52TTGI1.400i | 185-400 | 32-46 | 36-50 | 900 | Cenelec HD 629.1 IEC 60502-4 |
| 52 | 52TTGI1.630i | 400-630 | 38-52 | 44-56 | 900 | Cenelec HD 629.1 IEC 60502-4 |
| 52 | 52TTGI1.1200i | 630-1200 | 46-64 | 52-70 | 900 | Cenelec HD 629.1 IEC 60502-4 |
Nexans 52TTGI1 Heat-Shrinkable Indoor Termination 52kV MV HV – Data SheetDownload
