332601010

Pfisterer 332601010, from the Sicon range of connectors, are Network Rail Approved Connectors with PADS approval for jointing, terminating and connecting trackside power cables, signal and telecoms up to 33kV.

The mechanical straight shearbolt connectors are suitable for the conductor connection of 10-95sqmm LV, MV and HV cables (11kV-33kV) and can be used in all Cold Shrink and heat shrink cable joints.

• Order Reference – Pfisterer Sicon 332601010
• Conductor cross section Al solid circular – 10-95sqmm
• Conductor cross section Al stranded circular – 10-95sqmm
• Conductor cross section Al stranded circular compressed 10-95sqmm
• Conductor cross section Al solid sector-shaped 50-95sqmm
• Conductor cross section Al stranded sector-shaped 35-70sqmm
• Conductor cross section Cu solid circular 10-95sqmm
• Conductor cross section Cu stranded circular 10-95sqmm
• Conductor cross section Cu stranded circular compressed 10-95sqmm
• Conductor cross section Cu stranded sector-shaped 35-70sqmm
• Stripping length with centring sleeve – 40mm
• Stripping length without centring sleeve – 358mm
• Number of screws – 2
• Width across flats – SW5
• PADS Number Network Rail Approved Cable Lug Connectors – 054/212155
• Also from Pfisterer | CONNEX Connectors | Bushings | Surge Arresters

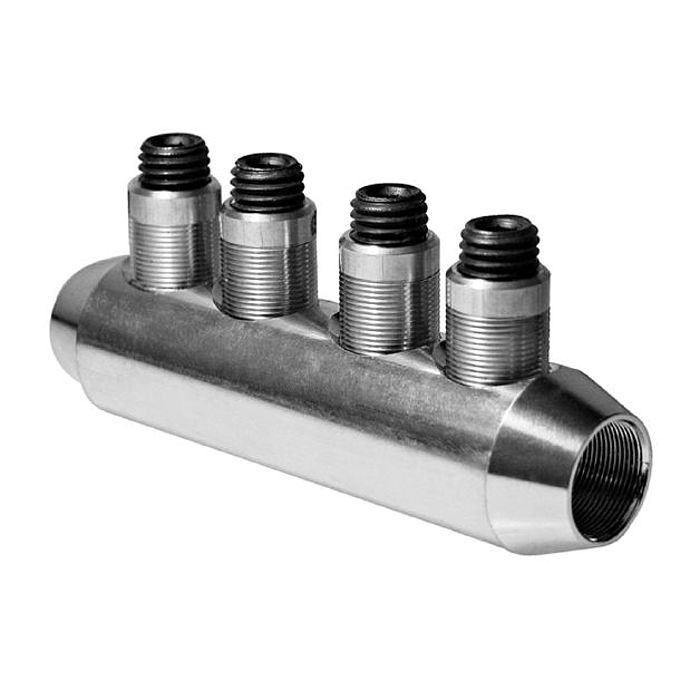

SICON connector 10-95sqmm with blind hole

PFISTERER SICON SELECTION TABLE

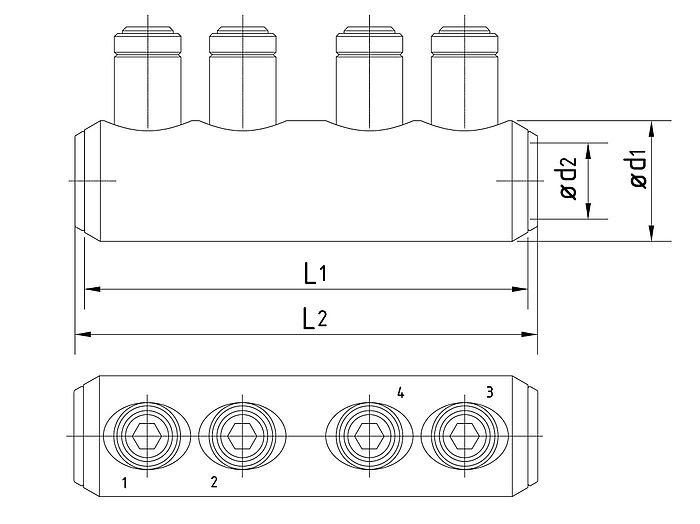

Pfisterer 332601010 Connectors – Diagram

Pfisterer Sicon Cable Lugs & Connectors – stepless shearbolts for jointing and terminating 11kV, 33kV and 66kV power cables
