Pfisterer Sicon 332 607 010 shearbolt cable connectors are suitable for the conductor connection of 25-150sqmm LV, MV and HV cables including 11kV-33kV – the cable connectors can be used in all cold shrink and heat shrink cable joints.
- Order Reference – Pfisterer Sicon 332 607 010
- Solid Circular Cables – 25-150sqmm
- Stranded Circular Cables – 25-150sqmm
- Solid Sector Cables – 35-120sqmm
- Stranded Sector Cables – 35-120sqmm
- Compacted Circular Cables – 25-150sqmm
- Hexagon Size – SW5
- Number of Bolts – 2
- Overall Length – 68mm
- Barrel Diameter – 28mm
- Internal Bore – 16.3mm
- PADS Number Network Rail Approved Cable Lug Connectors –Â N/A
- Compatible with MV-HV Cold Shrink and Heat Shrink Joints & Terminations
- See also: Cable Crimps, Lugs & ConnectorsÂ
âž¡ Typical Voltage Applications : 600/100V | 3.3kV | 6.6kV | 11kV | 15kV | 25kV | 33kV | 66kV
Shearbolt Cable Connectors 25-150sqmm Cables 11kV-33kV
PFISTERER SICON SELECTION TABLE
| Pfisterer Sicon Order Reference | Solid Circular sqmm | Stranded Circular sqmm | Solid Sector sqmm | Stranded Sector sqmm | Compacted Circular sqmm | Hexagon Size | Number of Bolts | Overall Length | Barrel Diameter | Internal Bore | Network Rail PADS Number |
| 332/607/010 | 25-150sqmm | 25-150sqmm | 35-120sqmm | 35-120sqmm | 25-150sqmm | SW5 | 2 | 68.0 | 28.0 | 16.3 | N/A |
Cable Connectors For Joints or Terminations
âž¡ For jointing 11kV-33kV conductors using mechanical cable connectors please ensure the physical dimensions of the connector are compatible with the proposed cold shrink, heat shrink or push-on cable joint – cable connectors are available for termination, straight and branch jointing of MV-HV cables.
Pfisterer Sicon 332 607 010

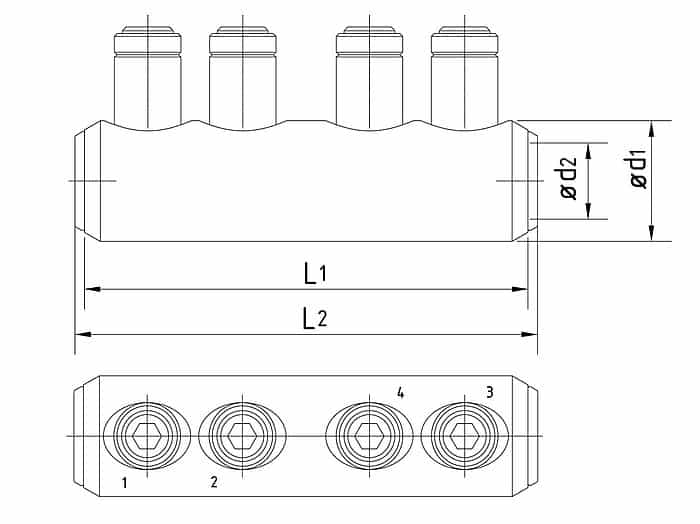

Cable connector Dimensions
- Diameter D1 ø d1 (mm) 28
- Diameter D2 ø d2 (mm) 16.3
- Diameter L1 ø L1 (mm) 68
- Diameter L2 ø L2 (mm) 78
T&D also stock Pfisterer CONNEX Inner Cone Plugs providing a screened separable connector for HV cable terminations on gas insulated switchgear (GIS) up to 33kV
