PICOUP 65 | cABLE sPIKER & cuTTING tOOL

Cable Spiking & Cutting Tools | Check Voltage Absence on LV Power Cables

Hydraulic & Remote | Suits Armoured Cables up to 65mm Diameter

The PICOUP 65 is a new waterproof tool and forms part of a range cable cutting and spiking tools from PENTA P&B (P&B Weir Electrical Ltd) distributed and stocked by Thorne & Derrick.

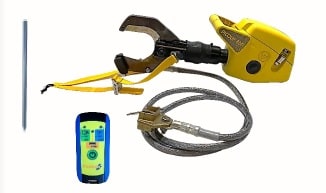

The Ultra Safe tool is a compact single unit rated to IP67 and remote controlled up to a distance of 150m for additional safety to the user. The PICOUP 65 is a fully integrated, waterproof electrohydraulic cable cutter without hydraulic hose, remotely controlled, to check absence of voltage on underground power cables.

HYDRAULIC – safe operation, no resort to firing hazardous class, explosive cartridges
REMOTE – safe working distance with no physical connection between the user and tool
POWERFUL – hardened steel blades spike and cut up to 65mm diameter cables

The PICOUP 65 can be used on the following cables:

Picoup Part Number
Picoup Part Number	Outside diameter	Maximum cross-section of conductors	Steel strip armor	Flat or round wire armor
P65	Up to 65 mm	3×240 + 120 mass / 1x630mm² Alu 3x150mm² + 95mm² / 1x300mm² Copper	Thickness up to 2mm	Thickness up to 2mm

PICOUP P65 Advantages

Safety power cable cutter to check absence of voltage on underground cables
Maximum transited short circuit current (Ph G) 10 5 kA/ 1 s or 14 5 kA/ 0 5 s
Remote controlled from a distance up to 25 m to protect the user
Remote controller or Android app on smartphones.
Energy via standard battery 18 V 4 Ah
Waterproof for al weather use including in flooded excavations
Rugged and light, hardened steel blades
Compact integrated electro hydraulic unit with automatic double speeds (fast approach work)
Eliminates the risks of injuries due to hydraulic hose punctures and saves its related maintenance costs
High cutting speed to blow the LV fuses
The spike reduces the risks for the network in case of a cut of a live LV cable
Rugged carry bag with storage pocket

Tooling Demonstration Video Playlist

This playlist demonstrates the PICOUP Cable Spiking Tool with Integrated Cable Cutters powerful ability to Spike & Cut several types of British Standard power cables, including BS5467, BS7870 and BS6622, for applications at voltage levels: LV Low Voltage, MV Medium Voltage and HV High Voltage – videos include:

600/1000V BS5467 4 Core 95-120-185-240-300-400sqmm Stranded Copper, XLPE Insulation with SWA Armour
11kV BS6622 11kV 3 Core 185sqmm Stranded Copper, XLPE Insulation with SWA Armour
33kV BS7870 33kV Single Core Aluminium 300-500-1000sqmm XLPE Insulation with Copper Wire Screen

Cable Spiking & Cutting Tools | PICOUP 65 Technical Data

Characteristics of cables to be cut

Copper conductors (mm² max)

Aluminum conductors (mm² max)

Round wire armor (diameter mm)

Flat wire armor (thickness mm)

Strip armor (thickness mm

–

3×150 + 95 / 1×300

3×240 + 120 mass / 1×630

Fault following network protection:

Fuses

Circuit breaker

Three phase fault

Single phase fault

Earthing cables:

SCI 10,5kA.1s or 14,5kA.0,5s (section mm²)

70 Al 2m

Cutting head:

Maximum cutting diameter (mm)

Weight with MALT + battery + remote (kg)

Dimensions (mm)

Cutter blade hardness (Hrc)

Blade anti corrosion treatment

Main material

Replaceable peak

Cutting force (tons)

Hydraulic force (tons)

Idle cycle time (s)

Battery autonomy on 3x50mm² alu . (cut)

657,4

550x115x180

Oil quench

Steel

7,5

7,7

Integrated electro hydraulic pump:

Hydraulic pressure (bar)

Interchangeable battery (CAS MATEBO or MAKITA)

Blade reopening

Oil Volume (CC)

Seal grade

700

18v 4Ah

Decompression button + spring return

IP67

Remote control unit:

Indicative transmission distance / battery

Radio frequency

Indicator lights (flashing / fixed)

—

25m / CR2032

Bluetooth 2,4 GHz (Smartphone possible Android App)

Left green LED (cut indication)
Right blue LED (connection status with the tool)
Central orange LED (blinks when battery charge is low)

Packaging / miscellaneous:

Total weight in soft bag (kg)

Dimensions in soft bag (mm)

Operating temperature ( (°C)

9,2

600x150x190

20/50

Picoup 65 Tool | Kit List

1 Hydraulic tool
1 Earthing stake
1 Aluminium earthing cable 70 mm² 2 m)
1 Clamping vice
1 Remote controller
2 4 Ah Li Ion Batteries
1 Battery charger
1 Hanging strap
1 Carry bag
1 User’s manual
1 Technical guide
1 Explosion proof tarpaulin

➡ Should you require customer service or technical support about the safe isolation or de-energisation of LV, MV or HV cables prior to jointing or terminating please contact us – view the full range of Cable Spikers below.
