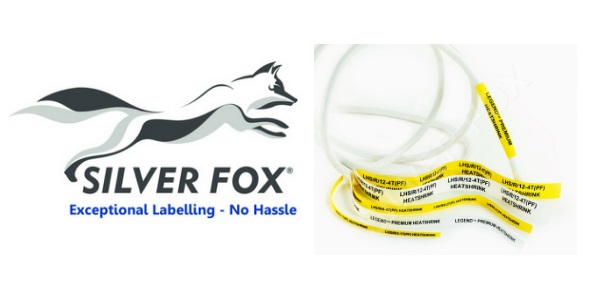

Silver Fox Legend Premium Heatshrink Cable Labels are manufactured to offer a high grade heatshrink solution that has a 3:1 shrink ratio – thermal cable labels designed to have a lower shrink temperature that saves time when shrinking onto the cable.

Premium Heatshrink Cable Labels have been extensively tested for exposure to a variety of conditions including salt mist spray and low/high temperature according to Lloyds Register Type Approval – not designed as an external cable it has successfully been tested for 3000 hours accelerated UV ageing.

The Silver Fox Legend is a flattened, printable single wall matt polyolefin heat shrinkable tube for all identification purposes from single cables to complete cable trees.

Premium Heatshrink Cable Labels – Silver Fox Legend

Features & Benefits

  • Easy to use and apply
  • Use with a standard heat gun
  • Print 2 rolls at a time – 300m thermal ribbon will yield approximately 23,000 x 25mm cable labels
  • Choice of 6 sizes

PREMIUM HEATSHRINK CABLE LABELS

SILVER FOX LEGEND

Printing Method Silver Fox DTP-1 Thermal Printer
Thermal Ribbon Silver Fox TSR5/300/60
Material Polyolefin
Shrink Ratio 3:1
Min. Shrink Temperature 90°C (full recovery)
RoHS (EU 2002/95/EC) RoHS Compliant
Operating Temperature -55°C to 135°C (-67°F to 275°F)
Dielectric Strength ≥ 37 kV/mm
Standards UL 224 125°C (257°F) 600V VW-1 (File No. E48762)
CSA C 22.2 No. 198.1: 125°C (257°F) 600V VW-1
Standard Colours Yellow, White
Network Rail Authorised for Use

PRODUCT OFFERING

Silver Fox LHS/R/6-2T(PF)W Product Code Explained

Silver Fox LHS/R/6-2T(PF)W Product Code Explained

Silver Fox Part Number  Cable ID Ø Expanded (mm) Cable ID Ø Recovered (mm) Roll Length (m) Rolls / Pack Total Pack Length (m) Colour Options
LHS/R/3-1T(PF)* 3.0 1.0 22 8 Rolls 176 yellow-white
LHS/R/4.8-1.6T(PF)* 4.8 1.6 22 6 Rolls 132 yellow-white
LHS/R/6-2T(PF)* 6.0 2.0 22 6 Rolls 132 yellow-white
LHS/R/12-4T(PF)* 12.0 4.0 18 4 Rolls 72 yellow-white
LHS/R/24-8T(PF)* 24.0 8.0 13 2 Rolls 26 yellow-white
LHS/R/39-13T(PF)* 39.0 13.0 10 1 Rolls 10 yellow-white

*Specify colour when ordering

STORAGE INSTRUCTIONS

  • Store between 50º F (10º C) and 77º F (25º C)
  • 2 Year Shelf Life
  • Keep In Dark Conditions
  • 35% to 65% RH (Resistance Humidity)
Premium Heatshrink Cable Labels (Polyolefin) – Silver Fox Legend - Label Application Guide

Premium Heatshrink Cable Labels (Polyolefin) – Silver Fox Legend – Label Application Guide

Premium Heatshrink Cable Labels In Situ At Dubai Petroleum

Premium Heatshrink Cable Labels In Situ At Dubai Petroleum
