Cable Labels
2 Part Cable Labels

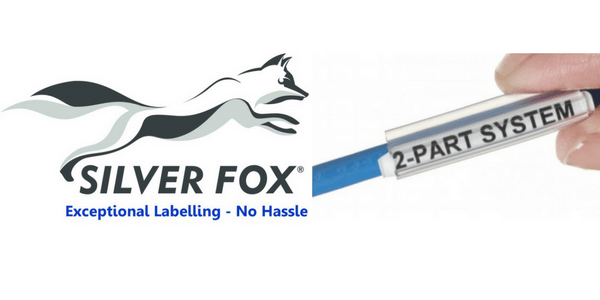

Silver Fox Legend 2 Part Cable Labels have a two part system where the wire ID can be changed even after cable termination without cutting off the wire – thermal cable labels provide a fast and easy way to make wire markers using the Silver Fox DTP-1/300 thermal printer.
Simply remove the label from the tubing and pull through a new cable label.
The 2 part cable labels are flexible plastic made from Polypropylene and are available in 3 lengths in rolls of 5000 cable labels.
2 part cable labels have been tested for high/low Temperature and salt mist spray according to Lloyds Register Type Approval System.
Typical labelling applications uses include sub-stations, control rooms or any application where the ID is likely to need frequent changes.
➡ Read: The Most Efficient & Simplest Cable Labelling System In the World
2 Part Cable Labels – Silver Fox Legend
Features & Benefits
- Replace ident, no need to cut and re-terminate wire or cable
- Choice of 3 lengths; 20mm, 30mm, 50mm
- Also available 2-Part Labelling System clear tubing
- Diameter range: 1.2mm – 14mm

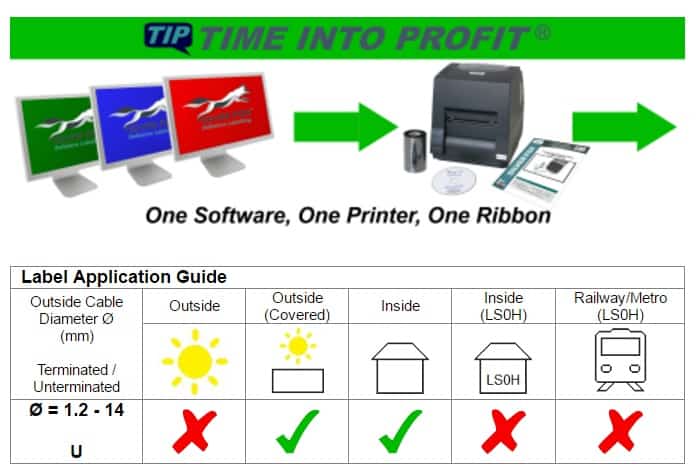

2 Part Cable Labels (Polypropylene) – Silver Fox Legend – Label Application Guide
2 Part Cable Labels
Silver Fox Legend
| Printing Method | Silver Fox DTP-1 Thermal Printer |
| Thermal Ribbon | Silver Fox TSR5/300/60 |
| Material | Polypropylene |
| RoHS (EU 2002/95/EC) | RoHS Compliant |
Cable Label Product Offering
Silver Fox L630TW Product Codes Explained
| Silver Fox Part Number | Cable Label Dim (mm) | Thermal Cable Labels Per Roll | Pack Quantity | Colour Options |
| L6/20T | 20 x 5 | 5000 | 1 Roll |  |
| L6/30T | 30 x 5 | 5000 | 1 Roll | |
| L6/50T | 50 x 5 | 5000 | 1 Roll | |
HOW TO REMOVE LASER CABLE LABELS
Step 1 – Slide the tubing onto the cable/wire
Step 2 – Pull the printed cable label through the tubing
Step 3 – Tear/cut off tail
Removing Laser Cable Labels
Cable Label STORAGE INSTRUCTIONS
- Store between 50º F (10º C) and 77º F (25º C)
- 2 Year Shelf Life
- Keep In Dark Conditions
- 35% to 65% RH (Resistance Humidity)
2 Part Cable Labels Usea For Substation Labelling Courtesy of ABB (2 Part Ferruling 50mm Length)
Silver Fox Thermal Cable Labels
This video highlights the range of thermal labels that can be printed by the Silver Fox DTP-1 thermal printer.
Silver Fox Legend 25,000 Labels Printed In 4 Hours
How To Print 25,000 Cable Labels In 4 Hours
Arabian Falcon Sales Manager, Nirmal Rajesh, describing how the Silver Fox Thermal printer was able to print out 25,000 non-shrink labels in just 4 hours.
Cable Labels
Thorne & Derrick are Main Distributors for Silver Fox and can provide expert technical recommendations, installer training and competitive product supply from stock for cable labels to suit LV MV HV power, telecom, data, signal, network and fibre optic cables.
Labelling Features & Benefits
High specification and rigorously tested labels for cables with high resistances to salt mist spray, heat, flame, chemicals, gases (H2S) and UV for onshore and offshore environments are available from stock on short delivery times – zero halogen LSZH cable labels are available with fire safety testing and certification to BS 6853 for Toxic Fume and Smoke Density Emission.
