LSOH Cable Labels

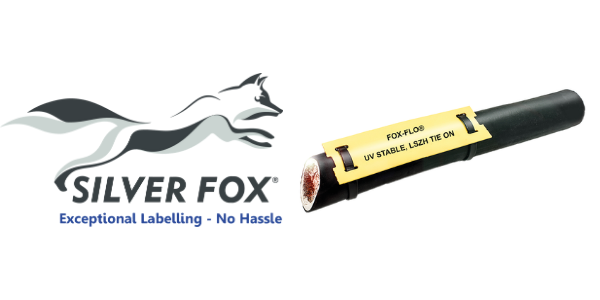

Tie-on LS0H Cable Labels (Heat Shrink)

Silver Fox-Flo Tie-on LS0H Cable Labels are made from a special UV stable Low Smoke Zero-Halogen material that have developed to ensure the highest levels of durability – thermal cable labels are flame retardant, halogen free and intended for use in internal and external identification purposes.

The tie-on LS0H cable labels are flexible and strong and have the ability to be attached by standard nylon or stainless steel cable ties.

The cable labels are both strong and flexible and can be attached using either standard nylon or stainless-steel cable ties.

Typical applications would be Rail/Metro and buildings where LS0H is part of the specification. It can be used externally and in marine environments.

➡ Read: The Most Efficient & Simplest Cable Labelling System In the World

Tie-on LS0H Cable Labels – Silver Fox Fox-Flo

FEATURES & BENEFITS

  • Easy to use and apply cable labels
  • Pre-perforated for rapid removal from roll
  • Apply to any cable from OD Ø 10mm – unlimited
  • Choice of four colours and three sizes of cable labels

Cable Label testing

  • London Underground Limited Standard LUL1-085
  • Very high Oxygen Index levels
  • 8000 hours successful NDT accelerated UV ageing
  • Salt Mist Spray according to Lloyds Register Type Approval System
Tie-on LS0H Cable Labels – London Underground Approved

Tie-on LS0H Cable Labels – London Underground Approved

Tie-on LS0H Cable Labels

Silver Fox Fox-Flo

Printing Method Silver Fox DTP-1 Thermal Printer
Thermal Ribbon Silver Fox TSR3
Material Silver Fox Fox-Flo® Material
Thickness 175 microns
Standard Sizes 1mm
RoHS (EU 2002/95/EC) RoHS Compliant
London Underground Authorised for Use
Network Rail Authorised for Use



Cable Label Product Offering

Silver Fox LCLZ1-7025TB - Product Codes Explained

Silver Fox LCLZ1-7025TB – Product Codes Explained

Silver Fox Part Number  Label Dims Labels Per Roll Labels Per Pack Pack Quantity Colour Options
LCLZ2-5010T 50 x 10 750 750 3 Rolls yellow
LCLZ1-5015T 50 x 15 160 160 5 Rolls white
LCLZ1-5025T 50 x 25 160 160 3 Rolls white-1
LCLZ2-7010T 70 x 10 550 550 3 Rolls yellow
LCLZ1-7015T 70 x 15 150 150 5 Rolls white
LCLZ1-7025T 70 x 25 150 150 3 Rolls white-1
LCLZ1-9015T 90 x 15 140 140 5 Rolls white
LCLZ1-9025T 90 x 25 140 140 3 Rolls white-1
LCLZ1-11015T 110 x 15 120 120 5 Rolls white
LCLZ1-11025T 110 x 25 120 120 3 Rolls white-1

STORAGE INSTRUCTIONS of Cable Labels

  • Store between 50º F (10º C) and 77º F (25º C)
  • 2 Year Shelf Life
  • Keep In Dark Conditions
  • 35% to 65% RH (Resistance Humidity)
Tie-on LS0H Cable Labels - Silver Fox Fox-Flo - Label Application Guide

Tie-on LS0H Cable Labels – Silver Fox Fox-Flo – Label Application Guide

Silver Fox Thermal Cable Labels

This video highlights the range of thermal labels that can be printed by the Silver Fox DTP-1 thermal printer.

Silver Fox Legend 25,000 Labels Printed In 4 Hours

Silver Fox Legend 25,000 Labels Printed In 4 Hours


How To Print 25,000 Cable Labels In 4 Hours

Arabian Falcon Sales Manager, Nirmal Rajesh, describing how the Silver Fox Thermal printer was able to print out 25,000 non-shrink labels in just 4 hours.

Cable Labels

Thorne & Derrick are Main Distributors for Silver Fox and can provide expert technical recommendations, installer training and competitive product supply from stock for cable labels to suit LV MV HV power, telecom, data, signal, network and fibre optic cables.

Labelling Features & Benefits

High specification and rigorously tested labels for cables with high resistances to salt mist spray, heat, flame, chemicals, gases (H2S) and UV for onshore and offshore environments are available from stock on short delivery times – zero halogen LSZH cable labels are available with fire safety testing and certification to BS 6853 for Toxic Fume and Smoke Density Emission.
